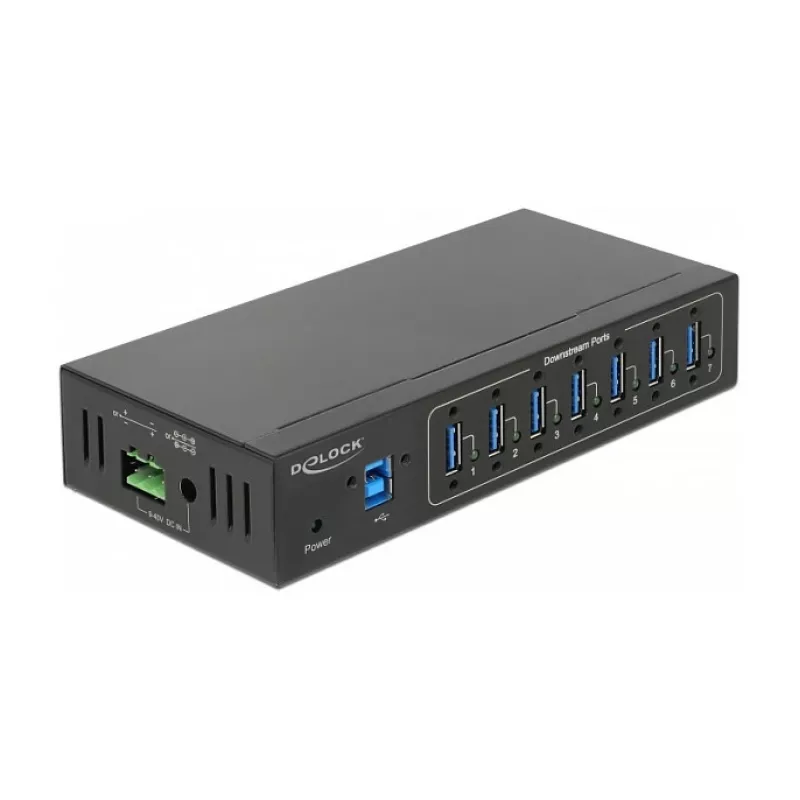

USB hub DeLOCK 63311

The DeLOCK 63311 is a robust USB hub that connects to a computer via a USB Type-B host interface and expands a system with seven USB Type-A ports. It supports USB 3.2 Gen 1 data rates up to 5 Gbit/s and implements the USB Battery Charging (BC1.2) specification so that compatible devices can draw higher charging current. The hub is housed in a durable metal case, is powered by a DC source with an input voltage range of 9–40 V, and has compact dimensions (80 × 158 × 32 mm).

Advantages

The metal housing provides increased durability and heat dissipation. Seven USB Type-A ports offer multiple simultaneous connections for peripherals and charging. Support for USB 3.2 Gen 1 ensures up to 5 Gbit/s data transfer for connected devices, while BC1.2 support allows faster charging of smartphones and other battery-powered devices. External power can be connected via the power socket when additional current is required.

Suitable for

• Expanding USB connectivity on desktop PCs and industrial computers
• Connecting multiple peripherals such as keyboards, mice, external drives and scanners
• Charging smartphones and tablets with BC1.2-compatible charging
• Use in environments where a durable metal housing is preferred

Key specifications

• Model: DeLOCK 63311
• Host interface: USB 3.2 Gen 1 (Type-B)
• Hub interfaces: 7 × USB 3.2 Gen 1 Type-A
• Maximum data rate: up to 5 Gbit/s (USB 3.2 Gen 1)
• Battery charging: USB BC1.2 support
• Power source: DC input, 9–40 V
• Colour: Black
• Housing: Metal
• Dimensions (W × D × H): 80 × 158 × 32 mm

How to use

Connect the hub to a host computer using the USB Type-B cable to the host interface. Plug peripherals into the available USB Type-A ports. For higher charging currents or multiple power-hungry devices, connect an appropriate external DC power supply or power cable to the hub's power socket. The hub operates without additional drivers on systems supporting USB 3.2 Gen 1, while data transfer speeds depend on connected device capabilities and host controller support.

Recommendations

Use a DC power supply within the specified 9–40 V range when many high-current devices are connected. Place the metal-housed hub in a well-ventilated location to aid heat dissipation and avoid covering the unit during prolonged heavy use.
