USB kábel DeLOCK 82942 USB 3.2 Gen 1 0,45 m modrý

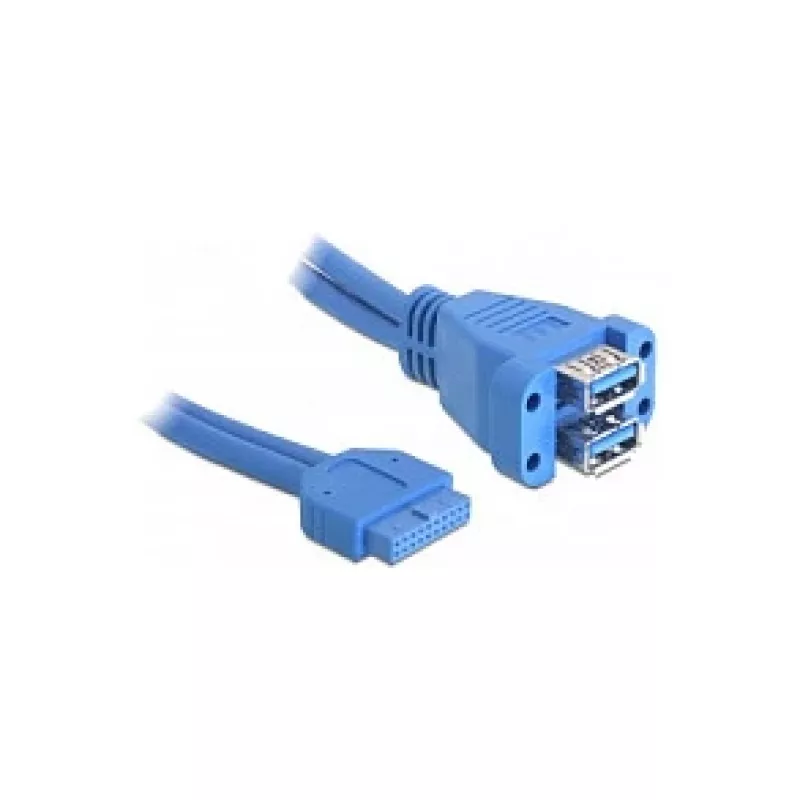

This USB 3.0 pin header cable by DeLOCK connects internally to a free 19/20-pin header on your motherboard and provides two additional USB 3.0-A female ports mounted on a small bracket. The cable is 0.45 m long, supports USB 3.2 Gen 1 (also referred to as USB 3.1 Gen 1) with maximum data transfer rates up to 5 Gbit/s, and comes in blue. It is designed for adding external-accessible USB ports to custom-built or compact systems where front-panel or bracket-mounted ports are needed.

Advantages

The cable offers a straightforward internal connection to the motherboard pin header and two screw-mountable USB-A female ports for stable external device attachment. Its USB 3.2 Gen 1 compliance enables high-speed data transfers up to 5 Gbit/s. The short 0.45 m length is suitable for compact PC cases and reduces cable clutter. The blue color helps identify the cable and ports inside the chassis.

Suitable for

• Adding two external USB 3.0-A ports to a custom-built desktop PC
• Installing USB ports on a bracket or small front panel
• Upgrading older systems with available motherboard pin headers to USB 3.2 Gen 1 speeds

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 82942
• EAN: 4043619829422
• USB version: USB 3.2 Gen 1 (3.1 Gen 1), up to 5 Gbit/s
• Cable length: 0.45 m
• Connector configuration: internal pin header to two USB 3.0-A female ports (screw-mountable)
• Color: Blue

How to use

Power off the PC and disconnect it from the mains. Locate a free compatible USB 3.x motherboard pin header and align the cable's male header connector carefully with the pins; press gently until fully seated. Secure the bracket-mounted USB-A ports in a free expansion slot or mounting position using the available screw holes. Reconnect power and boot the system; the operating system should detect the ports automatically if drivers for the motherboard chipset are installed.

Recommendations

Use the cable inside a powered-off chassis and handle the motherboard header with care to avoid bent pins. For maximum performance, connect USB 3.x devices and ensure your motherboard drivers are up to date.
