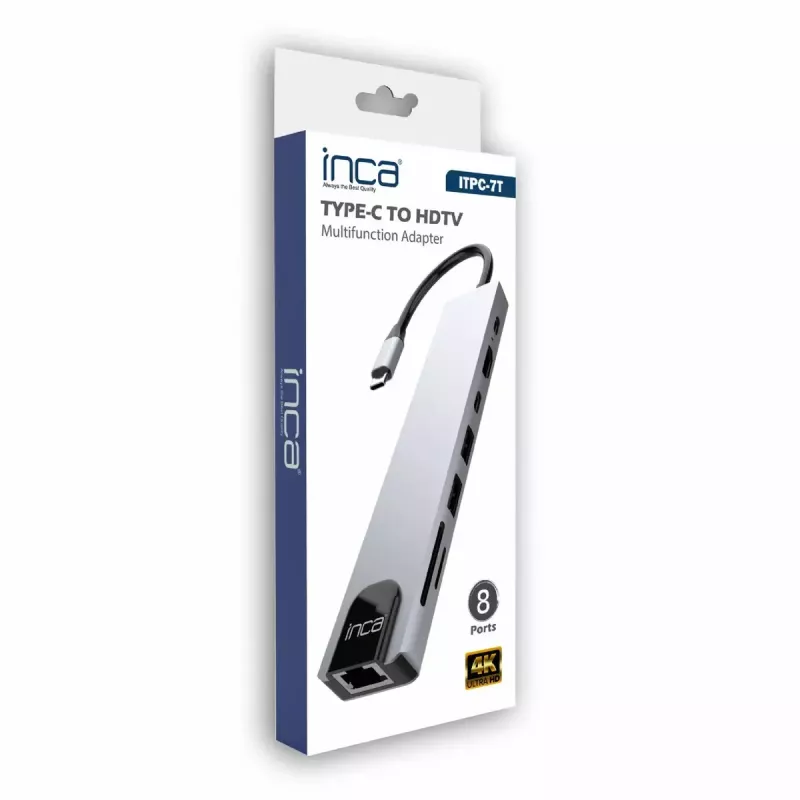

USB Type-C hub INCA ITPC-7T 1000 Mbit/s HDMI RJ-45 USB 2.0 USB 3.0

The INCA ITPC-7T is a compact USB Type-C hub in an aluminium case that expands a Type-C host port to multiple interfaces including HDMI, Gigabit Ethernet (RJ-45), USB 3.0, USB 2.0 and SD/microSD card readers. It supports HDMI output up to 3840 x 2160 at 30 Hz and provides up to 1000 Mbit/s wired network speed, making it suitable for connecting displays, storage and network devices through a single Type-C connection.

Advantages

The hub integrates two Type-C multiplexers, USB 3.0 and USB 2.0 multiplexers, and converters for HDMI and RJ-45 in a single aluminium enclosure with a white LED power indicator. It offers Gigabit Ethernet for fast wired connectivity, a 4K@30Hz HDMI output for external displays, and separate SD and microSD card readers for convenient access to removable storage. The compact design and USB-powered operation make it easy to carry and use without an external power supply.

Suitable for

• Expanding a laptop or tablet USB-C port to connect an external monitor via HDMI
• Providing wired Gigabit Ethernet for devices without an Ethernet port
• Connecting USB 3.0 and USB 2.0 peripherals such as flash drives, mice and keyboards
• Accessing SD and microSD cards for file transfer and media playback

Key specifications

• Host interface: USB Type-C
• Ports quantity: 8 (including HDMI, RJ-45, USB 3.0, USB 2.0, SD, microSD, Type-C input)
• Network: RJ-45 converter, 10/100/1000 Mbps (Gigabit Ethernet)
• HDMI output: up to 3840 x 2160 @ 30 Hz
• Card readers: SD and microSD
• Case material: Aluminium
• Power indicator: White LED

How to use

Connect the INCA ITPC-7T to a host device using the Type-C input. Attach an HDMI cable from the hub to an external monitor to enable video output (set the host display settings as needed). Plug an Ethernet cable into the RJ-45 port for wired network access. Insert SD or microSD cards into the respective slots and connect USB devices to the USB 3.0 or USB 2.0 ports for data transfer. The hub is USB-powered and will operate when the host provides sufficient power via the Type-C port.

Recommendations

For stable 4K@30Hz video and reliable Gigabit network performance, use high-quality HDMI and Ethernet cables and ensure the host device supports video output over USB-C. Avoid overloading the hub with high-power USB devices if the host cannot supply sufficient power; use a powered USB hub or an external power source for multiple power-hungry peripherals.
