USB zadný panel Lindy 2-port USB 2.0 PC zadný panel

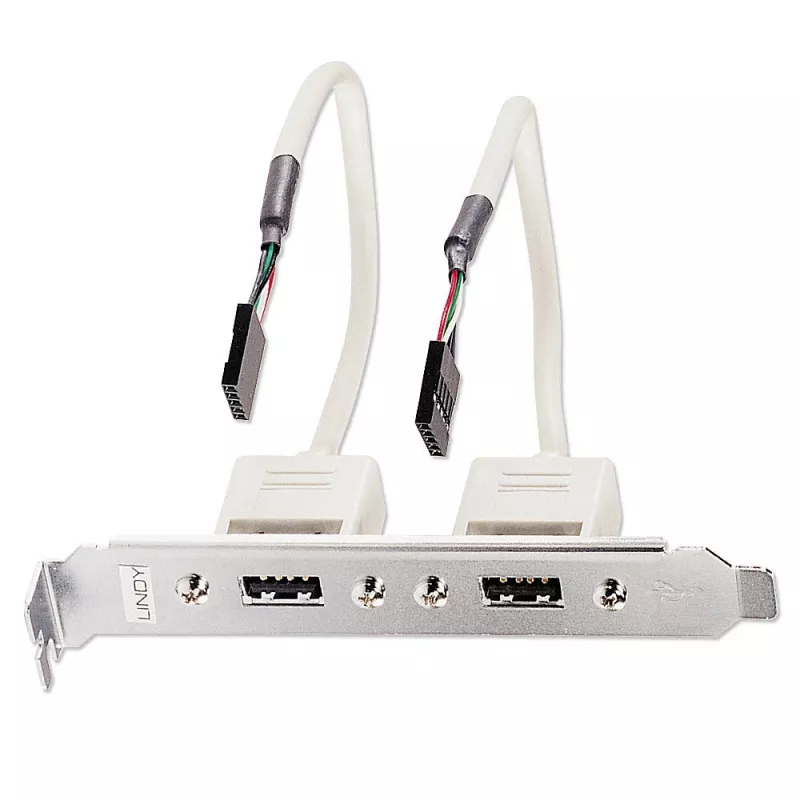

The Lindy 2 Port USB 2.0 PC Back Plate provides two external Type-A USB 2.0 female ports mounted on a metal back plate for installation in a PC expansion slot. It connects internally via two 5-pin female headers with a 20 cm cable, enabling convenient rear access to standard USB 2.0 ports for peripherals and data transfer.

Advantages

This back plate offers a simple way to add two USB 2.0 ports to the rear of a desktop PC without modifying the motherboard layout. The 20 cm cable length suits typical tower and small-form-factor cases, and the product is covered by a 10 year manufacturer warranty for long-term reliability.

Suitable for

• Adding rear USB 2.0 ports to desktop PCs
• Connecting mice, keyboards and other USB peripherals
• Systems where internal 5-pin header connections are available
• Upgrading older PCs lacking sufficient rear USB ports

Key specifications

• Brand: Lindy
• Model / MPN: 33147
• EAN: 4002888331470
• Ports: 2 x USB Type-A female (USB 2.0)
• Internal connector: 2 x 5-way header female
• Cable length: 20 cm
• Warranty: 10 years

How to use

Install the back plate into an available expansion slot at the rear of the PC. Route the attached cable to the motherboard and connect each 5-way header to the corresponding internal USB headers. Secure the back plate with the slot screw and close the case. After powering on, the operating system should recognise the additional USB ports automatically.

Recommendations

Use this back plate only with motherboards that provide the matching 5-pin internal USB headers. For stable connections, avoid overbending the cable and ensure the back plate is firmly fastened to the chassis.
