USB4 dokovacia stanica Digitus DA-70897 8K USB Type-C 100W Power Delivery

The USB4 Docking Station Digitus DA-70897 expands a notebook with 14 additional ports via a single USB-C™ connection. It supports up to 8K/30Hz (7680 x 4320) video output and provides DisplayPort and HDMI video interfaces, multiple USB ports, Gigabit Ethernet, audio output and dual card readers. The docking station also supports USB Power Delivery up to 100 W to charge a laptop while connected.

Advantages

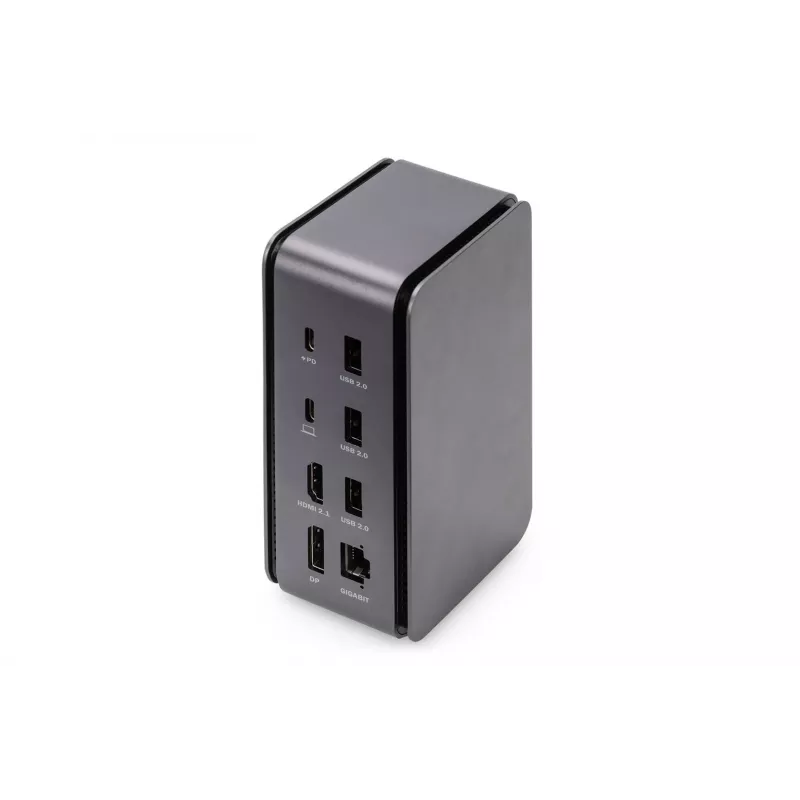

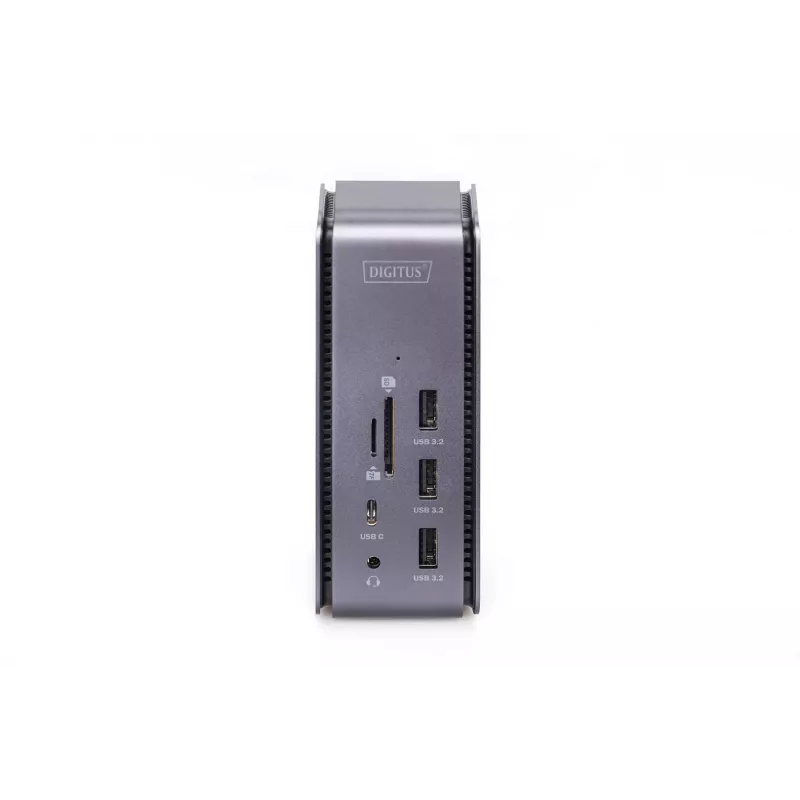

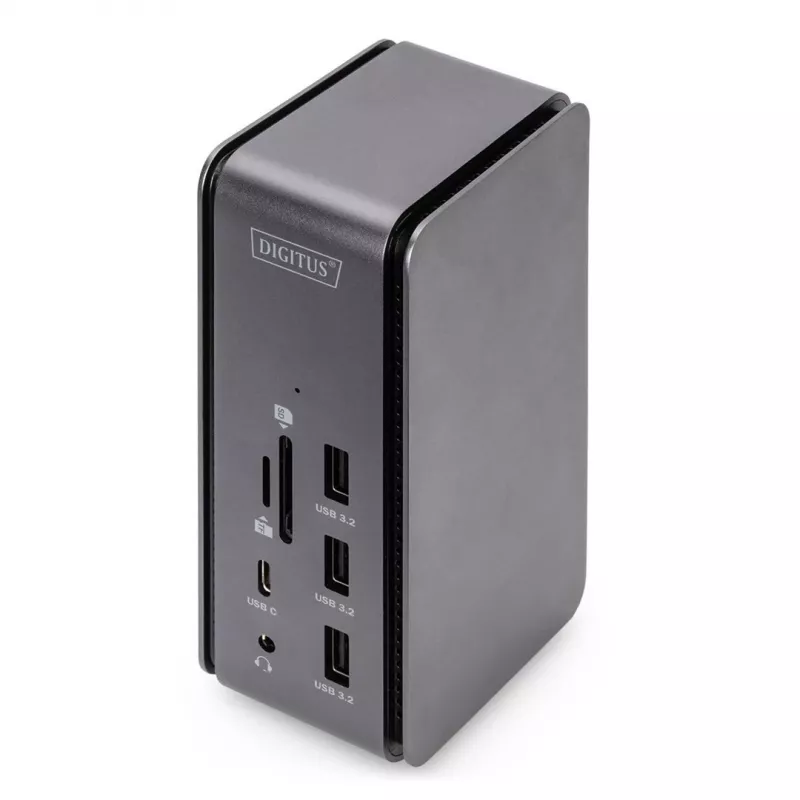

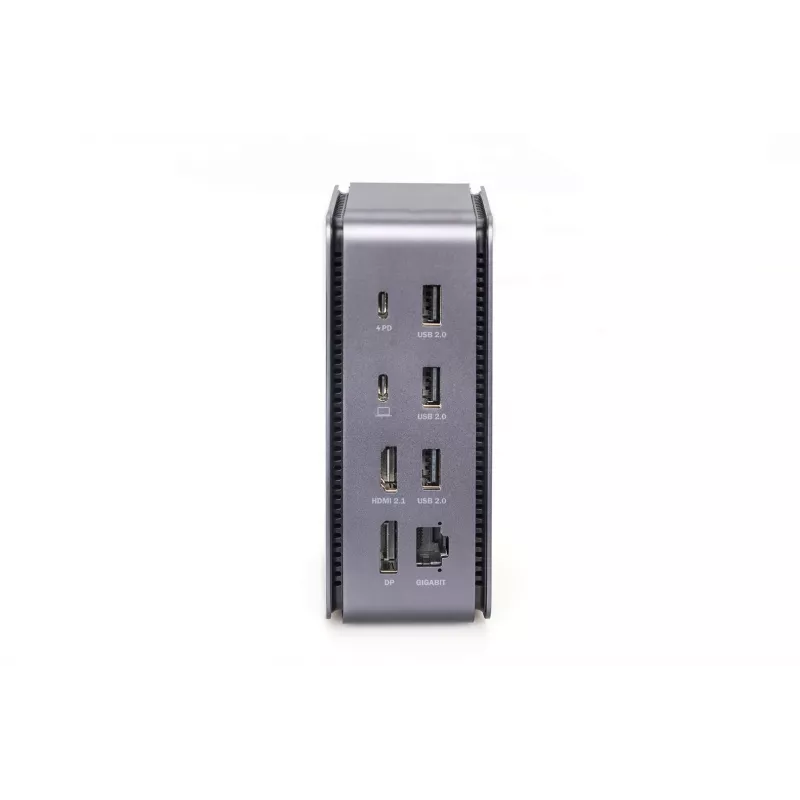

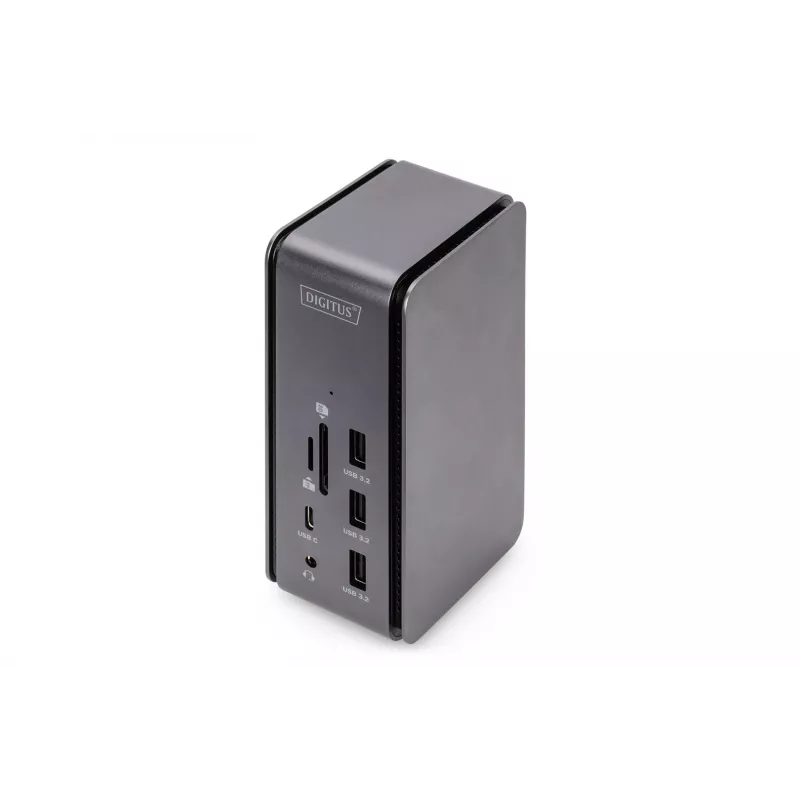

The docking station supports dual-monitor operation on Windows (SST and MST) and single-display SST mode on macOS. It includes one DP and one HDMI port for connecting monitors, projectors or TVs, two USB-C™ ports (one with 10 Gbps data transfer and one with Power Delivery), three USB 3.2 ports with SuperSpeed (10 Gbps) and BC 1.2 charging, three USB 2.0 ports, a Gigabit LAN port and SD and microSD card slots compatible with SD 3.0 (UHS-I) and SD 4.0 (UHS-II). Compact dimensions and wired connectivity make it suitable for a fixed desktop setup or portable use with a single cable connection.

Suitable for

• Office workstations requiring multiple monitors and wired LAN
• Users who need fast data transfer and multiple USB peripherals (mouse, keyboard, external drives)
• Photographers and content creators using SD or microSD cards
• Mobile professionals who want to charge their notebook (PD up to 100 W) while connected

Key specifications

• Video: 1 x DisplayPort + 1 x HDMI, up to 8K/30Hz (7680 x 4320)
• USB: 1 x USB-C 10 Gbps (data), 1 x USB-C with Power Delivery, 3 x USB 3.2 (10 Gbps, BC 1.2), 3 x USB 2.0
• Power Delivery: PD 3.0, up to 100 W
• LAN: 1 x Gigabit RJ45 (10/100/1000 Mbps)
• Card readers: 1 x SD slot, 1 x microSD slot (SD 3.0 UHS-I, SD 4.0 UHS-II)
• Ports total: 14 additional ports via single USB-C connection
• Dimensions (manufacturer): 80 mm x 17 mm x 147 mm
• Colour: Grey, Black

How to use

Connect the docking station to a notebook using the included USB-C™ cable. For video output, attach displays to the DisplayPort and/or HDMI ports. On Windows systems, configure display mirroring or extension in the OS display settings to enable dual-monitor SST or MST modes; on macOS use single-display SST mode. Connect USB peripherals to the USB-A or USB-C ports, insert memory cards into the SD or microSD slots, and plug a network cable into the RJ45 port for wired LAN. If required, connect the laptop power adapter to the docking station’s PD-capable USB-C port to charge your notebook while using the dock.

Recommendations

Use a high-quality DisplayPort or HDMI cable rated for the target resolution and ensure the host laptop supports USB4/USB-C video output and required display modes for full functionality. For maximum charging and stable performance, use a power adapter compatible with PD 3.0 up to 100 W.
