Uzemňovací pás Rittal 2565.120, žltá, výška 300 mm, hmotnosť 180 g

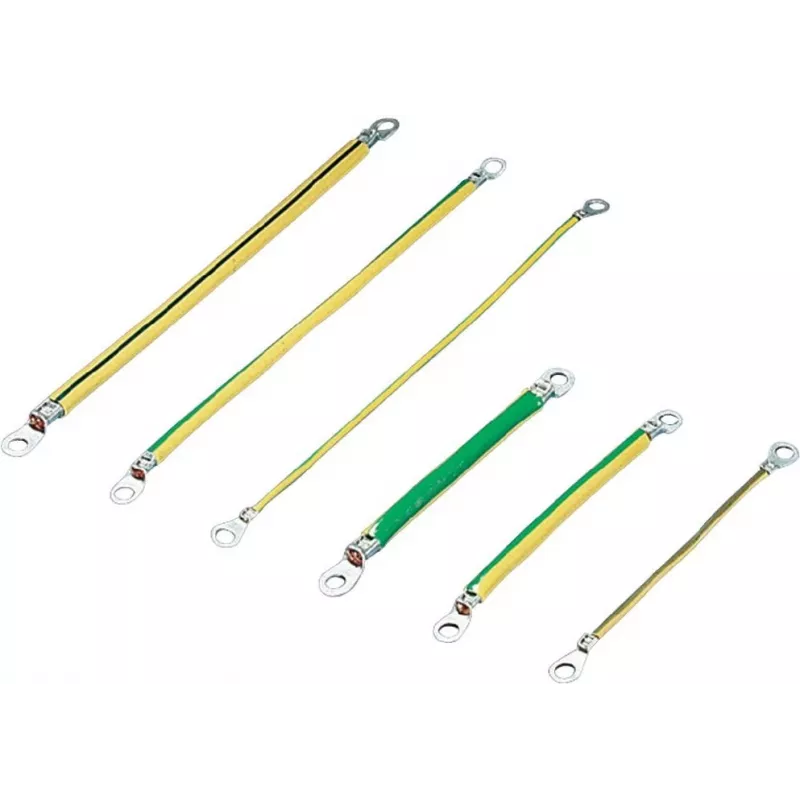

Rittal 2565.120 grounding hardware is a compact yellow earthing component with a height of 300 mm and a net weight of 180 g. Designed for installation in electrical enclosures and switchgear, it provides a ready-to-install solution for configuring reliable earthing connections with low contact resistance. The part includes ring terminals that accept M6 and M8 fasteners, enabling secure attachment to cabinet earthing points and busbars. Its length-optimised form factor suits installation in confined cabinet spaces while maintaining robust mechanical contact.

Advantages

This grounding hardware offers a pre-assembled, length-optimised design that reduces on-site preparation time and ensures consistent earthing performance. The yellow finish enables quick visual identification of the grounding conductor within panels. Ring terminals sized for M6 and M8 fasteners provide compatibility with common earthing screws and studs, and the compact profile facilitates mounting in industrial cabinets and panelwork where space is limited.

Suitable for

Key specifications

How to use

Mount the grounding hardware to the enclosure earthing point or busbar using appropriate M6 or M8 screws or studs, ensuring firm mechanical connection and good electrical contact. Route and secure the grounding conductor as required by the installation standard, avoiding sharp bends or contact with moving parts. Verify contact integrity and continuity with a suitable meter after installation and before commissioning the equipment.

Recommendations

Ensure mating surfaces are clean and free of paint or corrosion for optimal electrical contact. Use appropriate torque values for M6 and M8 fasteners and comply with local electrical codes and standards when installing grounding connections.
