Vaddio Middle Atlantic TOR Series Tilt Out Wall Rack TOR-3-20RP

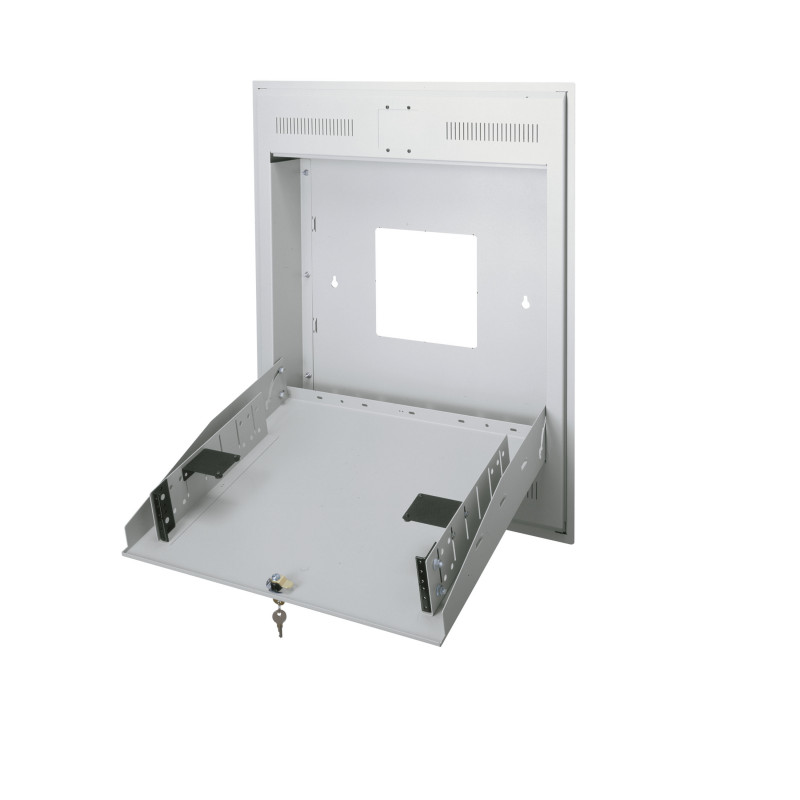

In a busy AV control room or network closet, the Vaddio Middle Atlantic TOR-3-20RP Tilt Out Wall Rack provides secure, space-saving equipment mounting with easy access for maintenance. This 3 RU wall-mount rack tilts out to 90°, giving you full front and rear access to installed components without removing them from the rack. Its 20-inch usable depth accommodates a wide range of AV, networking, and security equipment, while the welded steel construction supports up to 150 lbs. The black powder coat finish blends into any professional environment, and the key-locked front door and side panels deter tampering.

Key specifications

• Rack units: 3 RU
• Usable depth: 20 inches (508 mm)
• Overall dimensions (H x W x D): 7.5 x 23.06 x 22.5 inches (190.5 x 585.7 x 571.5 mm)
• Weight capacity: 150 lbs (68 kg)
• Material: Welded steel with black powder coat finish
• Mounting type: Wall mount
• Tilt-out angles: 0°, 10°, 20°, 30°, and 90°
• Security: Key-locked front door and side panels
• Cable management: Integrated tie points and knockouts
• Ventilation: Vented side panels (optional fan kits available)
• Door: Reversible and removable front door
• Access: Front and rear equipment access
• Included accessories: Rack screws, security screws, keys
• Compliance: RoHS

Why choose it

The TOR-3-20RP solves the challenge of accessing equipment in tight spaces. Its tilt-out mechanism allows you to swing the entire rack down for easy cable changes, card swaps, or troubleshooting, then lock it back into place. The robust steel build and 150 lb capacity ensure reliable support for your gear, while the integrated cable management keeps installations neat and professional.

Ideal use cases

• AV installations in conference rooms, classrooms, and houses of worship
• Network closets requiring secure, space-efficient equipment mounting
• Security and surveillance systems with DVRs/NVRs
• Any wall-mount application where front and rear access is needed

Good to know

The rack includes all necessary hardware for mounting and securing equipment. The reversible door can be installed to open left or right, and the removable design allows for unobstructed access during installation. Optional fan kits can be added for active cooling in high-heat environments.
