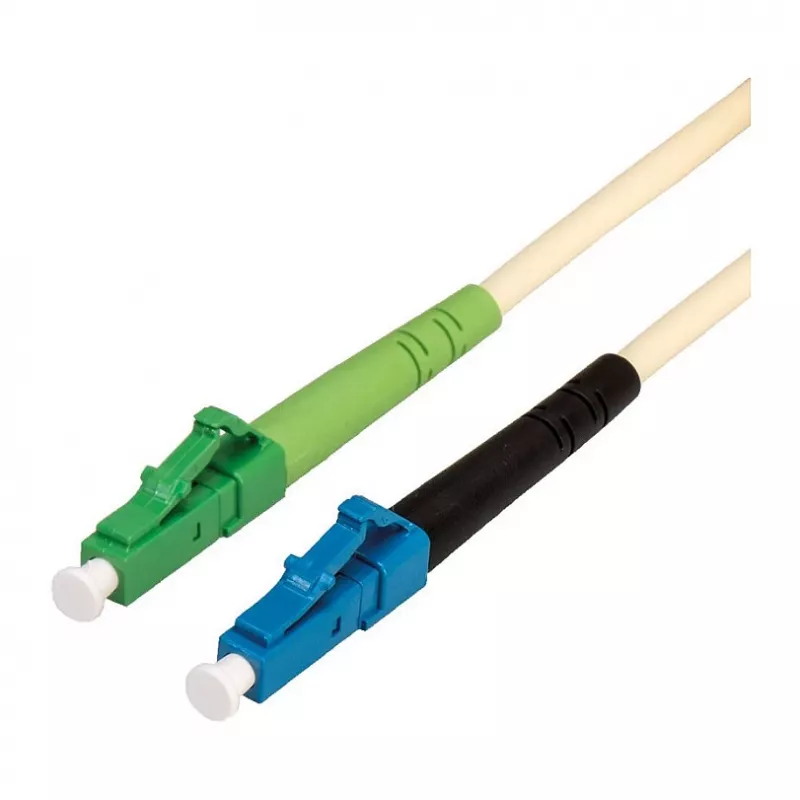

VALUE Patch kábel - LC/UPC Singlemode na LC/APC Singlemode

The VALUE Patch Cable LC/UPC to LC/APC is a high-quality fiber optic patch cable designed for single-mode networks. It ensures reliable and low-loss connections for data transmission in telecommunications, data centers, and FTTH applications.

Advantages

This patch cable offers excellent insertion loss and return loss performance, ensuring minimal signal degradation. The LC/UPC to LC/APC connector combination is ideal for applications requiring high return loss, such as CATV and PON networks. The LSZH jacket provides safety in enclosed spaces.

Suitable for

• Fiber optic network installations
• Data centers and server rooms
• Telecommunications infrastructure
• FTTH (Fiber to the Home) deployments
• CATV and PON systems

Key specifications

• Connector A: LC/UPC
• Connector B: LC/APC
• Fiber Mode: Single-mode (9/125 µm)
• Fiber Count: Simplex (1 fiber)
• Cable Length: 3.0 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Cable Diameter: 3.0 mm
• Insertion Loss: < 0.3 dB (typical)
• Return Loss (UPC): > 50 dB
• Return Loss (APC): > 60 dB
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC interfaces. Use appropriate cable management to avoid bending beyond the minimum bend radius.
