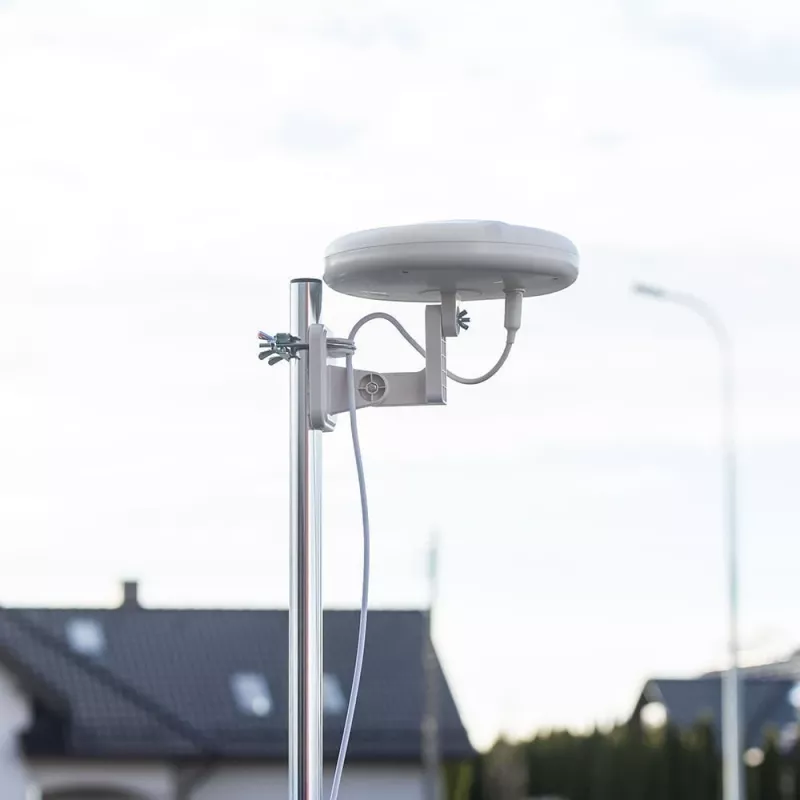

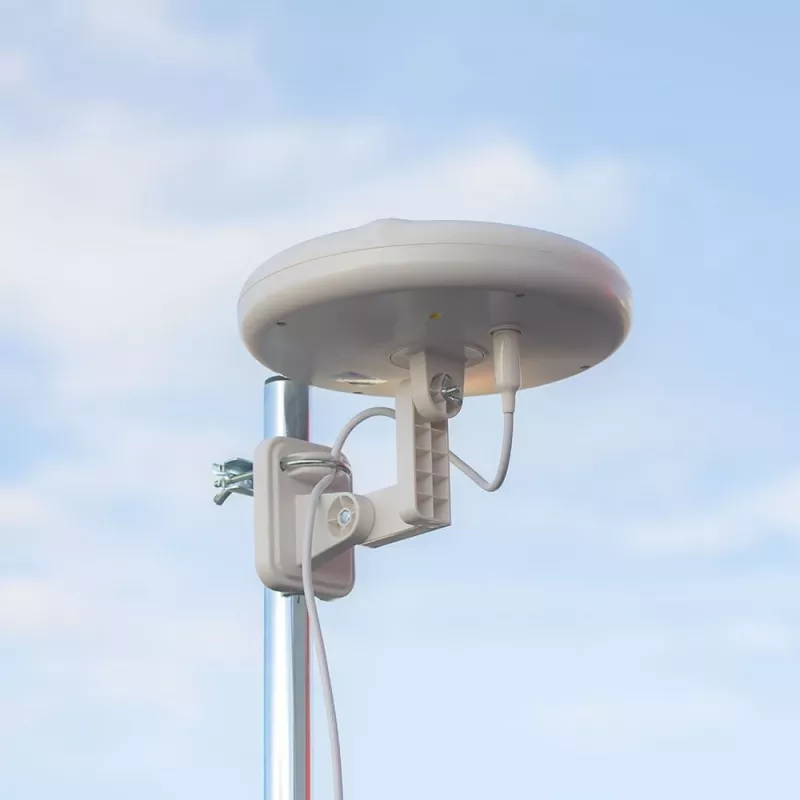

VAYOX VA0024 Digital360 vonkajšia multi-band anténa 4G LTE FM VHF UHF

The VAYOX VA0024 Digital360 is a high-performance outdoor multi-band antenna designed for superior reception of digital and analog signals. Engineered for both home and professional use, it supports VHF, UHF, FM, DAB+, and 4G LTE bands, ensuring clear audio and video across a wide frequency range. With its omnidirectional design and built-in low-noise amplifier, this antenna delivers exceptional gain and signal quality, even in challenging environments.

Advantages

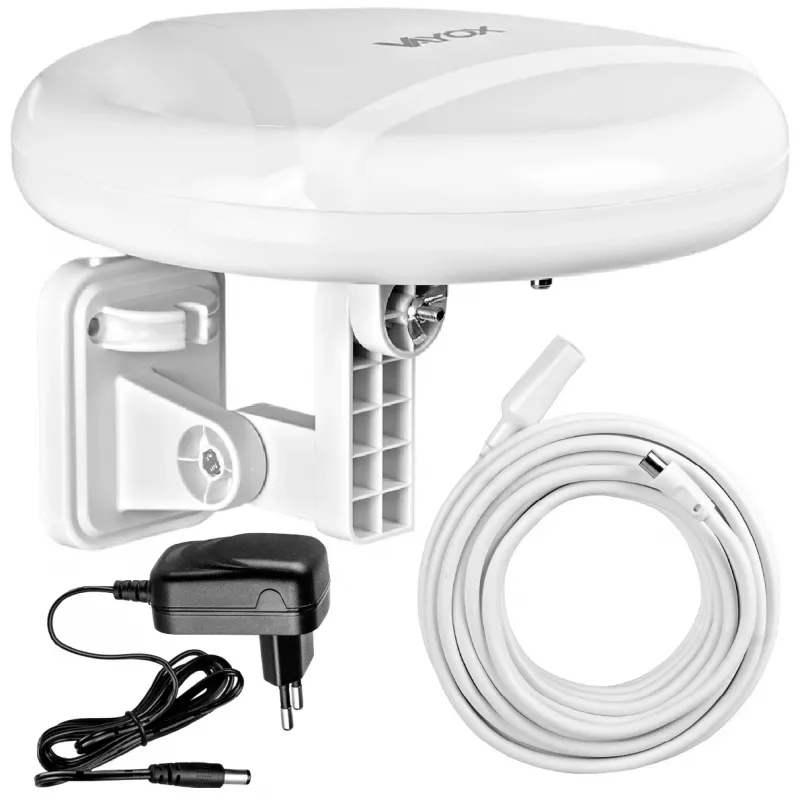

Experience reliable reception with the VAYOX VA0024. Its advanced amplifier and LTE filter minimize interference, while the weather-resistant housing ensures durability in outdoor conditions. The included 10m coaxial cable and versatile mounting kit make installation straightforward, and the dual power supply options (5V USB or 12V adapter) provide flexibility.

Suitable for

• Digital terrestrial TV (DVB-T/T2) reception
• FM and DAB+ radio listening
• 4G LTE signal enhancement
• Outdoor installations in residential or commercial settings

Key specifications

• Antenna Type: Outdoor Multi-Band Digital Antenna
• Reception Bands: VHF, UHF, FM, DAB+, 4G LTE
• Frequency Range VHF: 174 - 230 MHz
• Frequency Range UHF: 470 - 694 MHz
• Frequency Range FM: 87.5 - 108 MHz
• Frequency Range LTE: 790 - 862 MHz
• Max Gain VHF: 28 dB
• Max Gain UHF: 30 dB
• Max Gain FM: 25 dB
• Impedance: 75 Ohm
• Noise Figure: < 3 dB
• VSWR: < 1.5
• Polarization: Horizontal & Vertical (Omnidirectional)
• Connector Type: F-type
• Built-in Amplifier: Yes, Low Noise
• LTE Filter: Yes
• Power Supply: DC 5V (via USB/DVB-T2 receiver) or DC 12V (via included adapter)

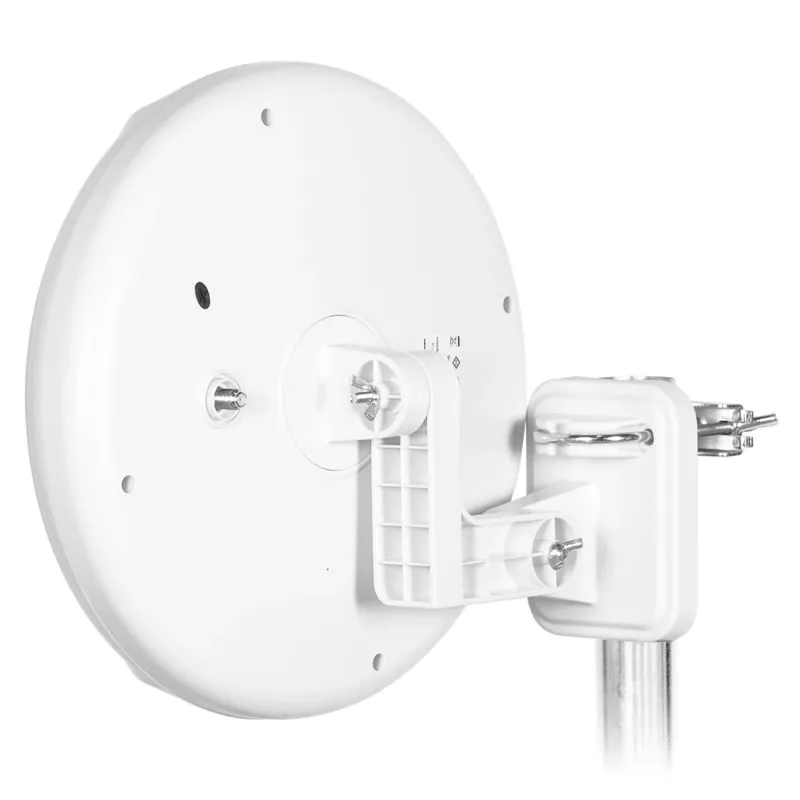

• Mounting: Pole/Mast Mount (Included)
• Weather Resistance: UV Resistant, Waterproof Housing
• Included Cable Length: 10m Coaxial Cable

Recommendations

For optimal performance, mount the antenna as high as possible with a clear line of sight to the broadcast tower. Use high-quality coaxial cables and connectors to minimize signal loss. Ensure the power supply matches your setup (5V USB from TV or 12V adapter).
