Ventilátor Corsair iCUE LINK RX140 MAX RGB 14 cm čierny 300–1600 ot/min

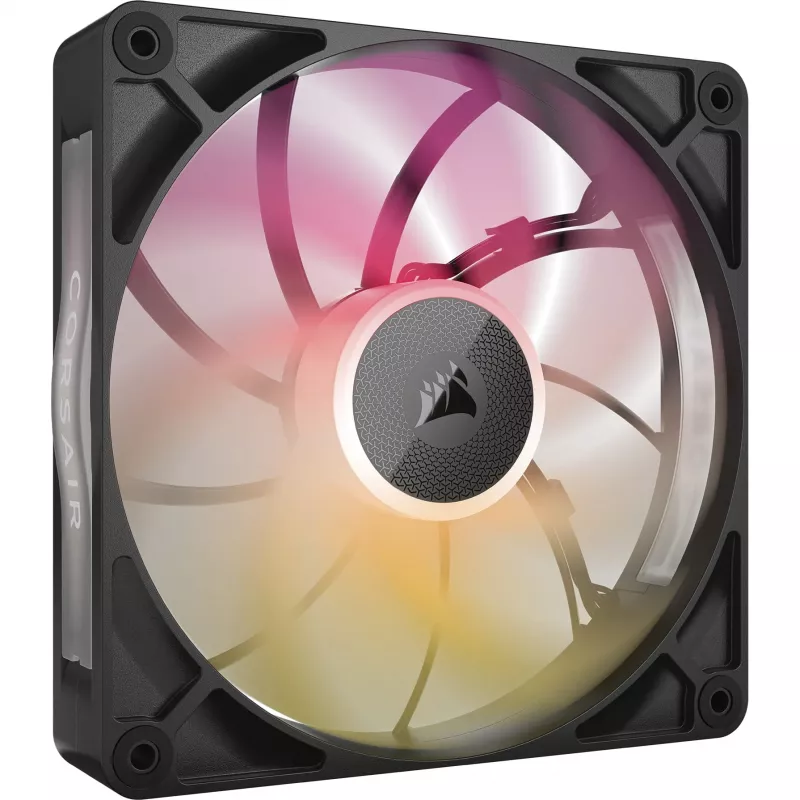

The Corsair iCUE LINK RX140 MAX RGB is a 140 mm black PWM cooling fan with a speed range of 300–1600 RPM and a maximum static pressure of 2.38 mmH2O. Its 30 mm-thick frame and 5 mm thicker fan blades increase airflow and static pressure compared with standard fans, making it suitable for case cooling and radiator mounting while maintaining lower noise levels.

Advantages

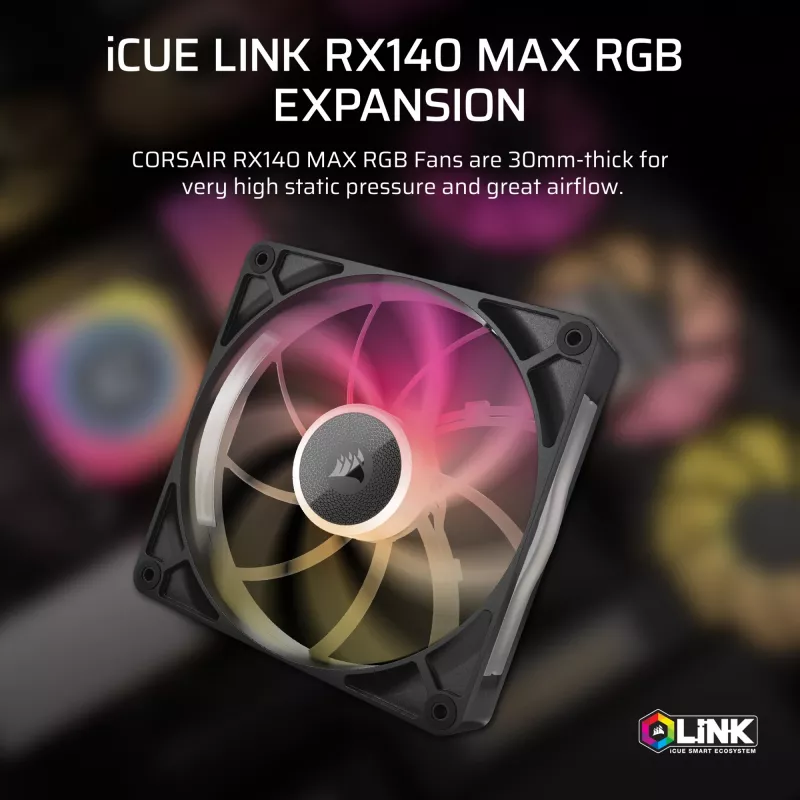

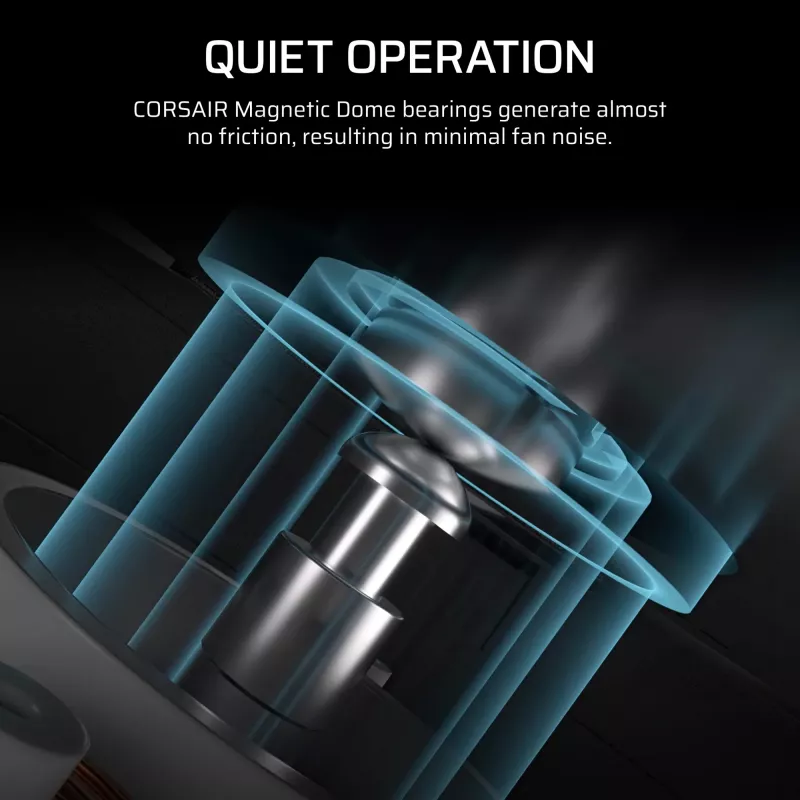

The thicker 30 mm frame and enlarged blade profile move more air at the same RPM, delivering stronger airflow and higher static pressure while allowing the fan to run at lower speeds for reduced noise. A magnetic dome bearing reduces friction and mechanical noise and improves longevity. The fan is tested for both case and radiator applications and includes QuikTurn screws for faster, secure installation.

Suitable for

• Case cooling for desktop PCs
• Radiator mounting in liquid cooling loops
• Quiet, high-airflow builds where lower RPM operation is desired

Key specifications

• Type: Fan
• Fan diameter: 140 mm
• Speed: 300–1600 RPM
• Maximum static pressure: 2.38 mmH2O
• Colour: Black
• MPN: CO-9051035-WW
• EAN: 840006682981

How to use

Mount the fan to a compatible 140 mm fan or radiator location in your PC chassis using the supplied QuikTurn screws. Connect the PWM power cable to a motherboard or fan controller header that supports PWM control to manage fan speed between 300 and 1600 RPM. If using for radiator mounting, orient the fan to push air through the radiator fins to maximize static pressure performance.

Recommendations

Set fan control profiles in your motherboard or iCUE-compatible software to balance airflow and noise: lower RPMs for quiet operation and higher RPMs under heavy load or when maximum cooling is required. Regularly clean dust from blades and radiator fins to maintain performance.
