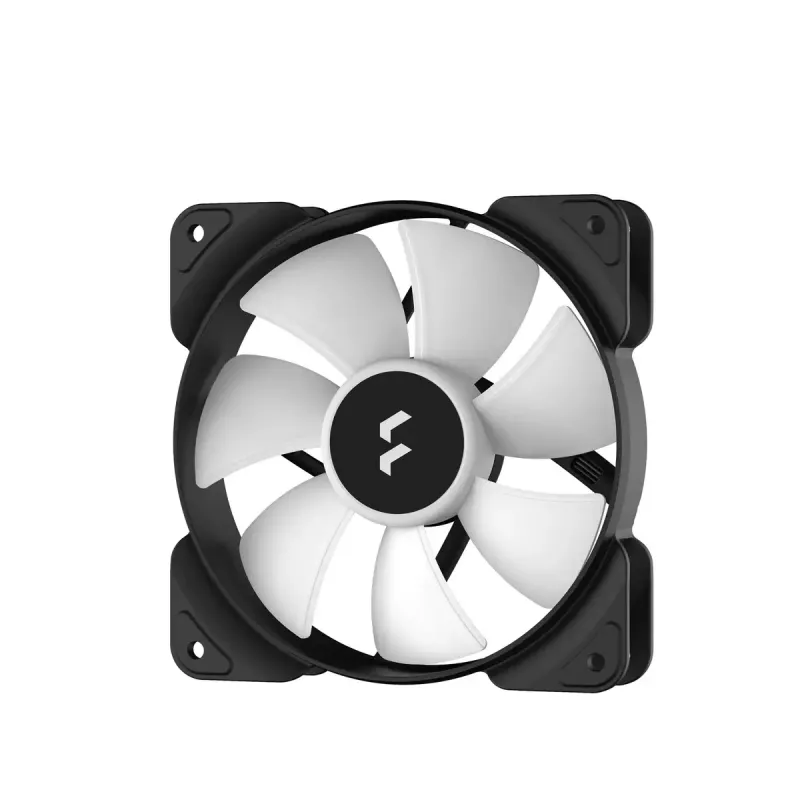

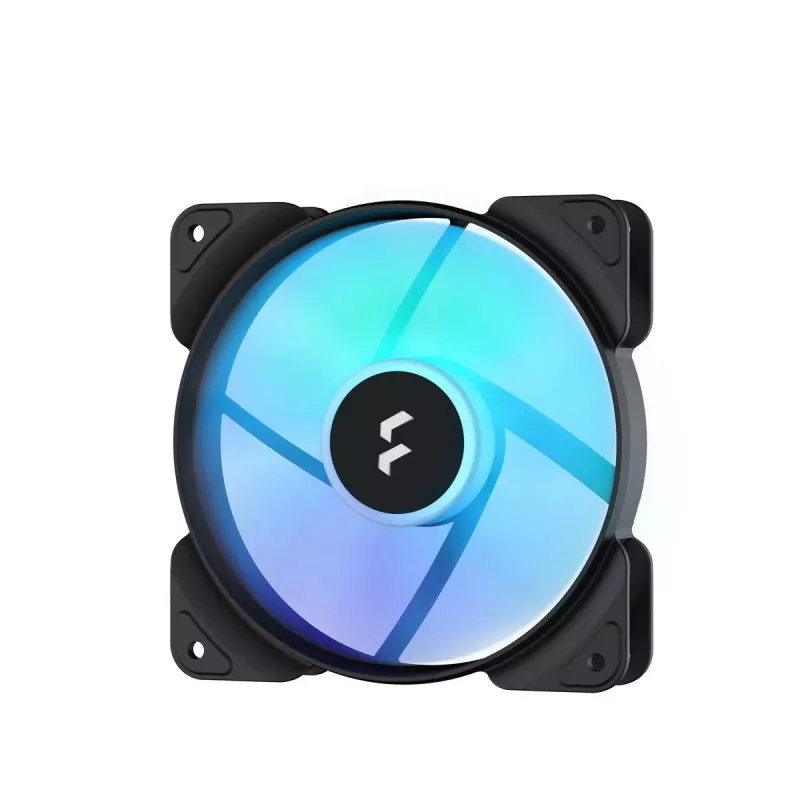

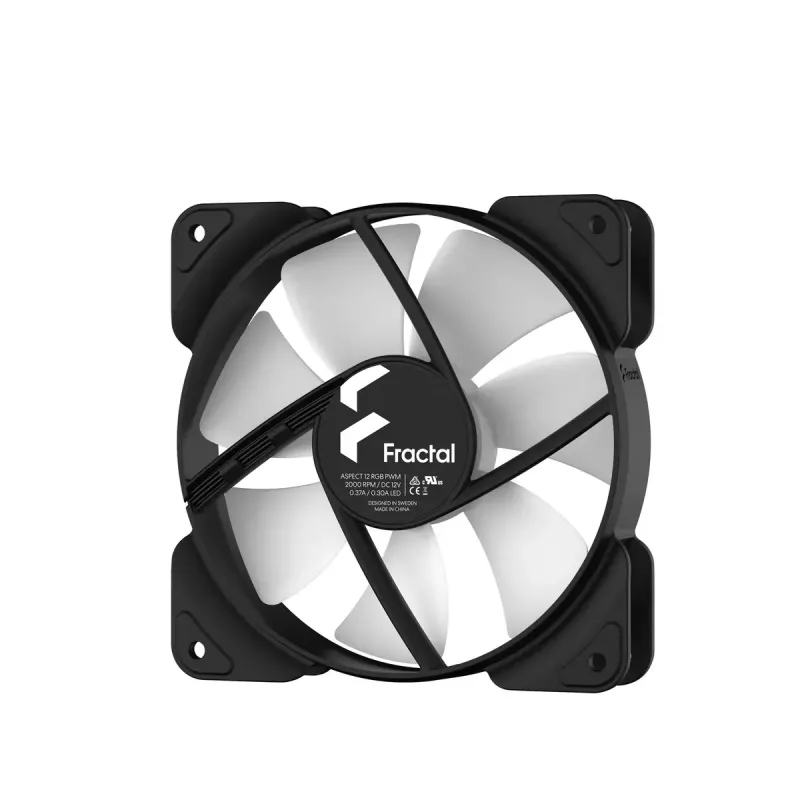

Ventilátor Fractal Design Aspect 12 RGB PWM

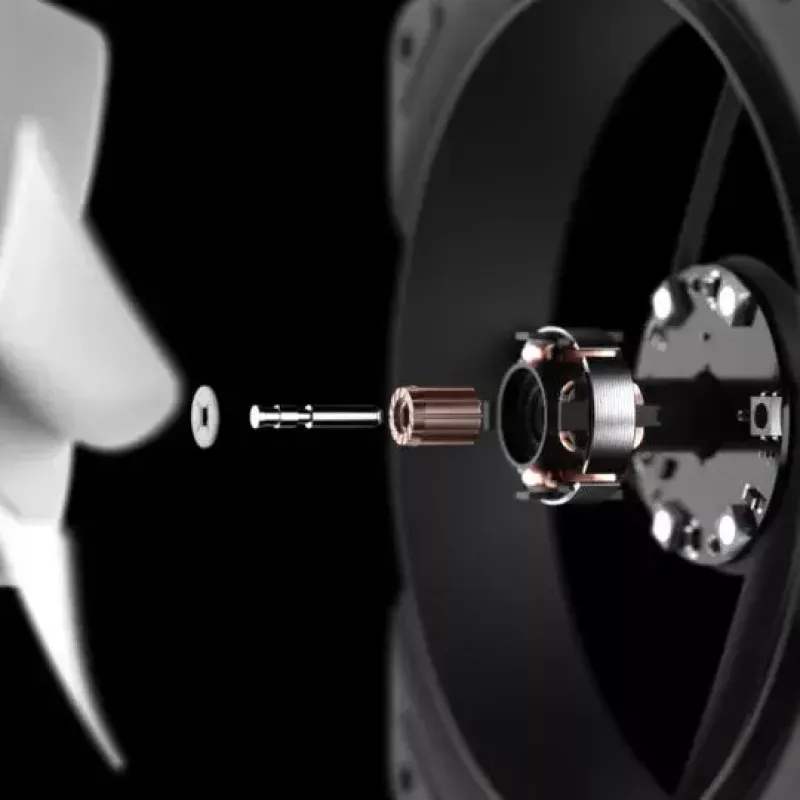

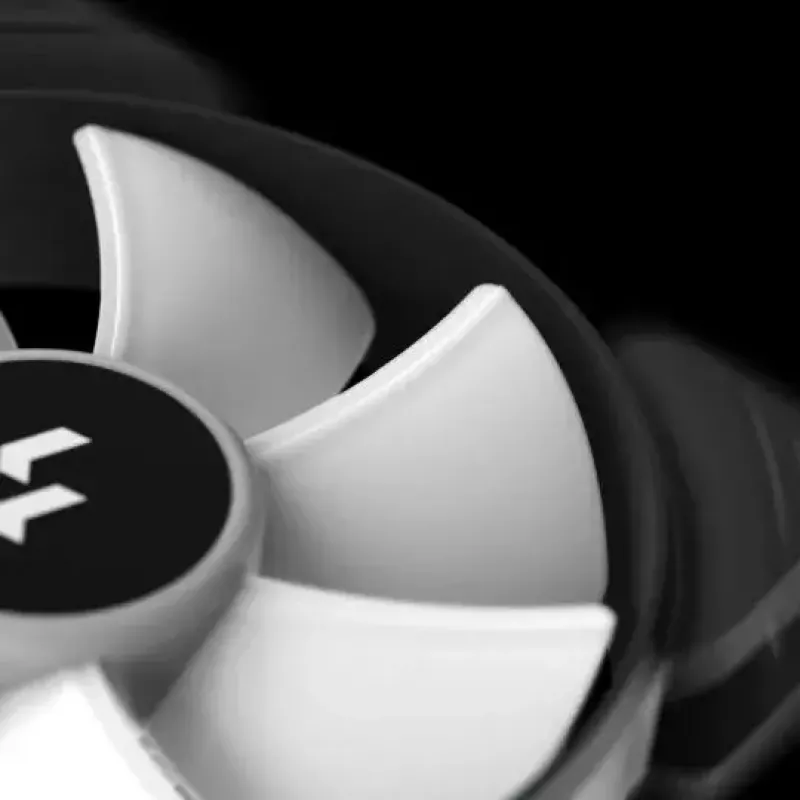

The Fractal Design Aspect 12 RGB PWM is a 120 mm case fan that combines efficient airflow and addressable RGB lighting. It operates from 500 to 2000 RPM, delivers up to 95.1 m³/h of airflow and a maximum static pressure of 2.34 mmH2O. The fan uses rifle bearing technology for improved durability and reduced noise, runs on 12 V and is finished in black. Aspect-series features include aerodynamic stator struts, Trip Wire blade technology and built-in chaining support for simplified cable management.

Advantages

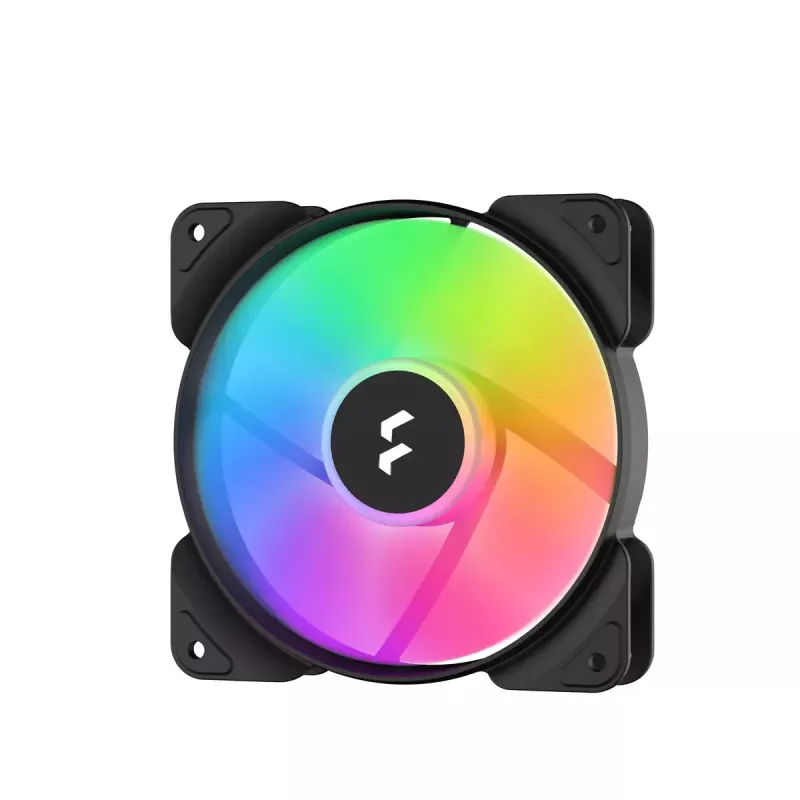

The fan provides a balance of cooling performance and aesthetic control with six individually addressable hub-mounted RGB LEDs compatible with major motherboard RGB ecosystems. Aerodynamic stator struts and Trip Wire technology reduce turbulence and improve blade efficiency, while the rifle bearing offers better longevity compared with standard sleeve bearings. The chaining feature lets you connect multiple Aspect fans to simplify cable routing.

Suitable for

• PC case cooling for gaming and workstation builds
• Systems where addressable RGB lighting synchronization is desired
• Multi-fan installations requiring simplified cable management

Key specifications

• Type: Fan
• Diameter: 120 mm
• Speed range: 500–2000 RPM (PWM)
• Airflow: 95.1 m³/h
• Max static pressure: 2.34 mmH2O
• Bearing: Rifle bearing
• Power: 12 V
• Colour: Black
• MPN: FD-F-AS1-1207
• EAN: 7340172703525

How to use

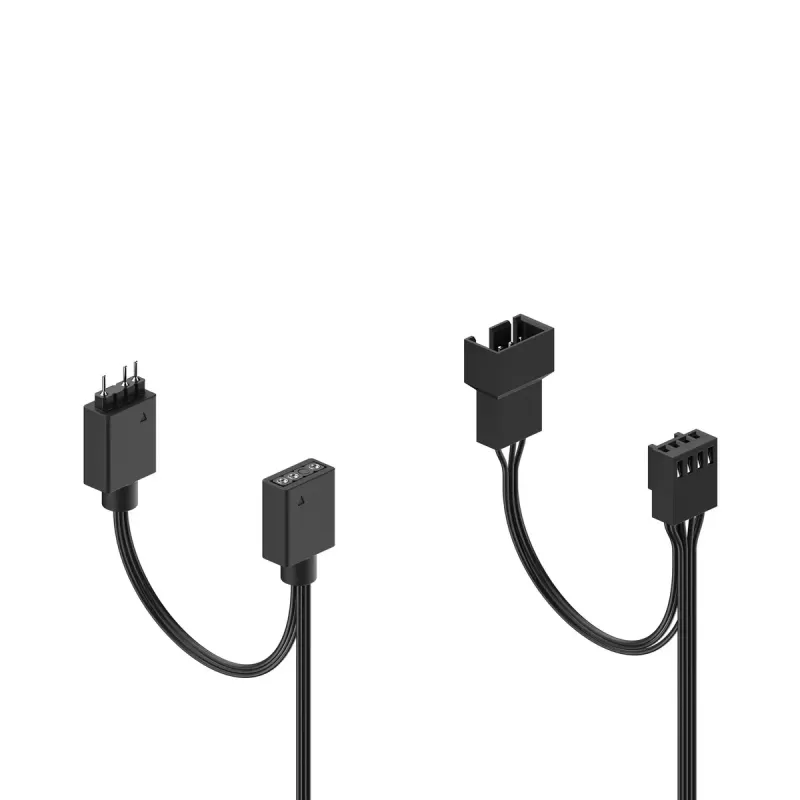

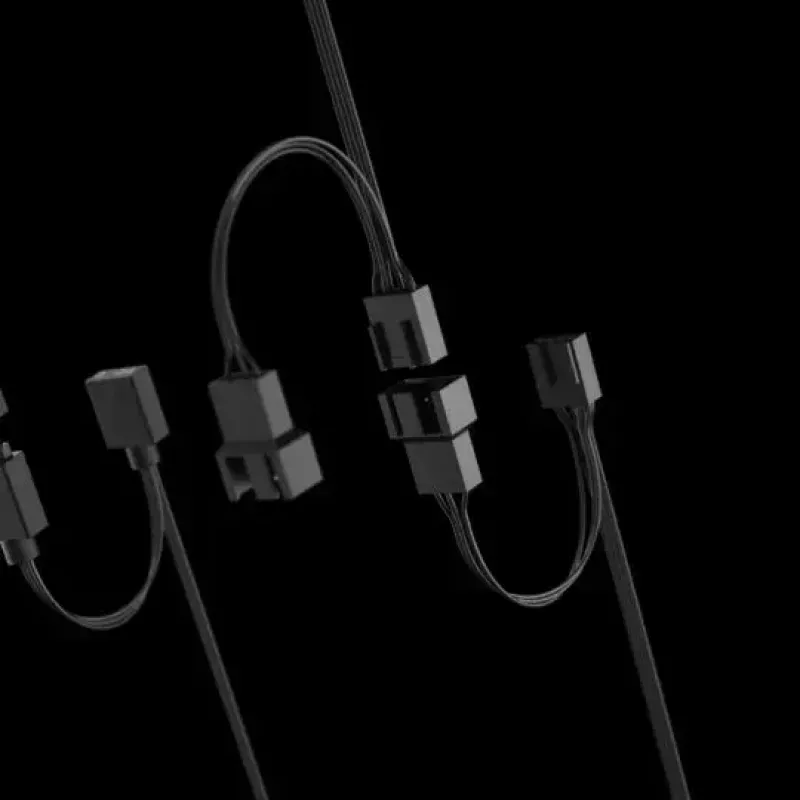

Install the Aspect 12 RGB PWM into a compatible 120 mm fan mount in your PC case using the supplied screws. Connect the PWM power cable to a motherboard fan header for automatic speed control and connect the addressable RGB connector to a compatible RGB header or controller. If using multiple fans, use the built-in chain feature to daisy-chain the RGB connections and reduce cable clutter. Ensure the fan orientation provides the desired airflow direction (intake or exhaust).

Recommendations

For optimal operation, connect the PWM cable to a controlled header and enable PWM fan curves in BIOS or your motherboard software; synchronize ARGB lighting with supported platforms such as ASUS Aura, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome or Razer Chroma.
