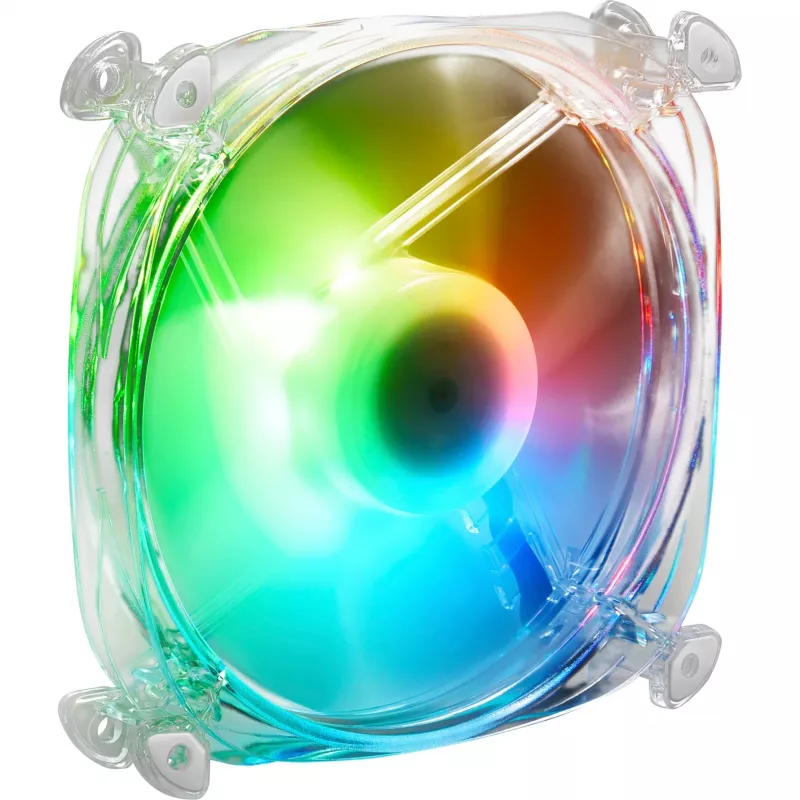

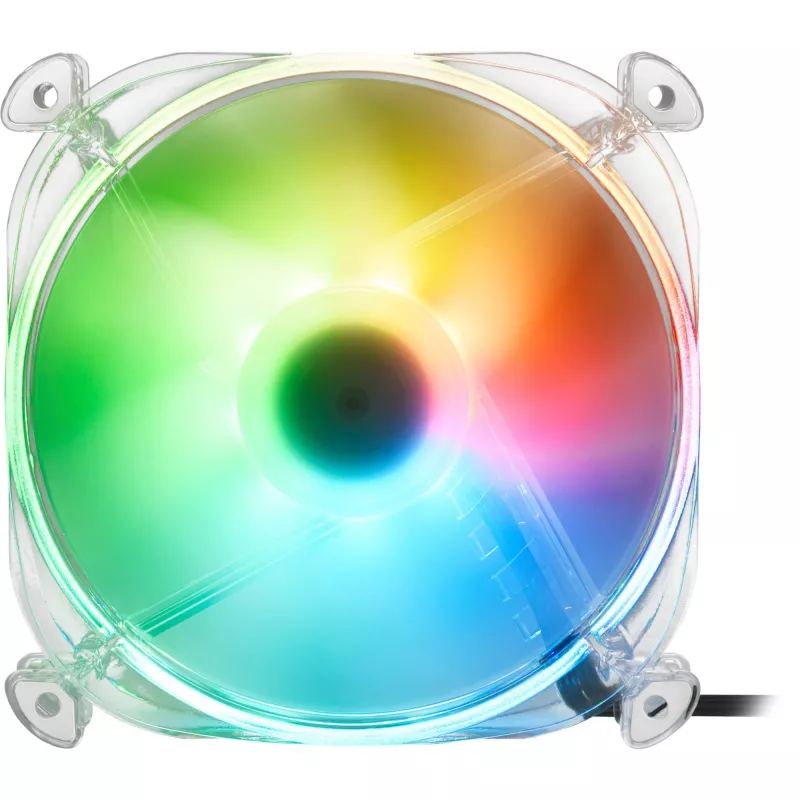

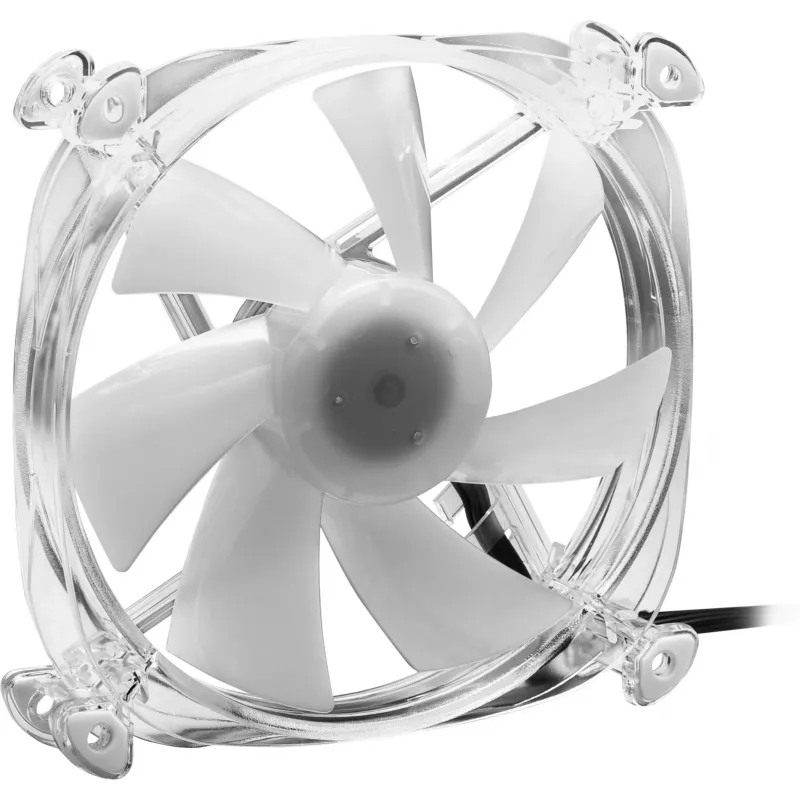

Ventilátor Sharkoon Shark Disc PWM 12 cm priehľadný 400-1400 RPM 82,35 m³/h

The Sharkoon Shark Disc PWM 12 cm transparent fan is a case cooling fan with a fluid dynamic bearing and mainboard-controlled PWM speed from 400 to 1,400 RPM. It delivers up to 82.35 m³/h airflow and a maximum static pressure of 1.85 mmH2O while featuring nine addressable RGB LEDs for customizable lighting. Rubberized contact points reduce vibration and the fan is compatible with common 5V addressable RGB headers and 4-pin PWM fan connectors for power and lighting control.

Advantages

The fan combines efficient airflow with low noise: up to 82.35 m³/h at a maximum noise level of 24.8 dB(A). A fluid dynamic bearing extends service life to at least 50,000 hours. Transparent blades and nine addressable RGB LEDs allow up to 16.8 million colors controllable via the motherboard. Vibration-damping rubber mounts help ensure smooth, quiet operation and easier long-term use.

Suitable for

• Cooling PC cases and chassis
• Intake or exhaust fan placements in desktop systems
• Systems requiring addressable RGB lighting synced with motherboard software
• Compact builds needing a 120 mm fan with moderate static pressure

Key specifications

• Fan diameter: 120 mm
• Speed range: 400–1,400 RPM (PWM)
• Maximum airflow: 82.35 m³/h
• Maximum static pressure: 1.85 mmH2O
• Noise level (max): 24.8 dB(A)
• Bearing type: Fluid dynamic bearing
• Addressable RGB: 9 LEDs, up to 16.8 million colors

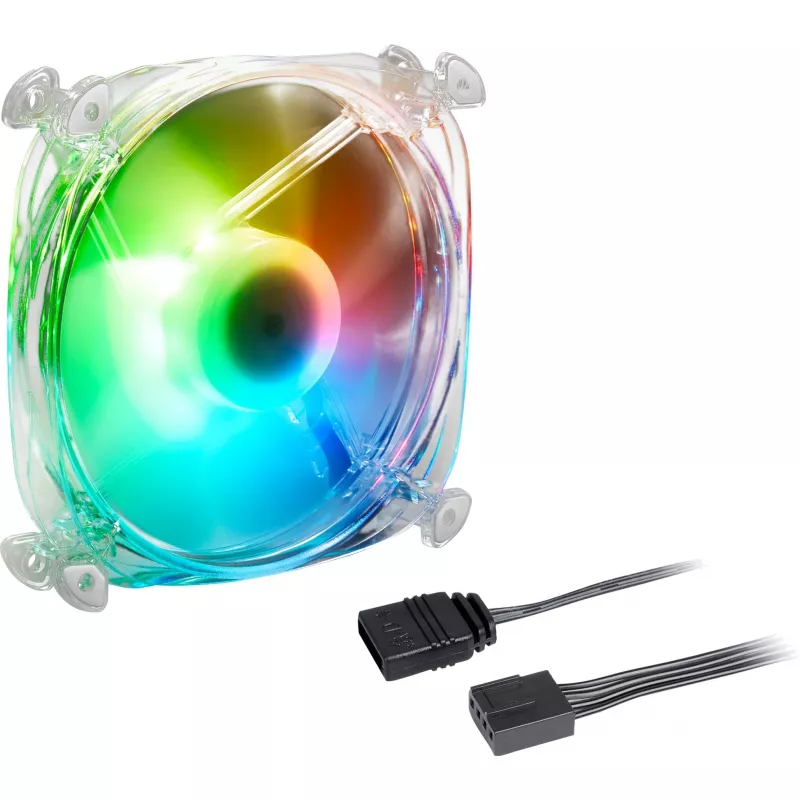

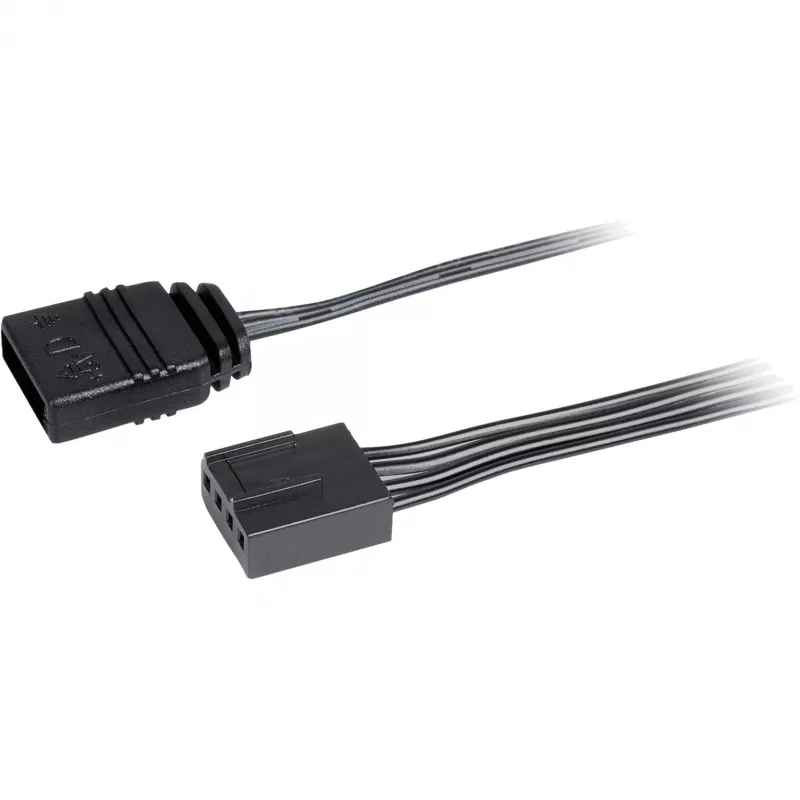

• Connectors: 4-pin PWM (fan), 3-pin 5V-D-G or 4-pin 5V-D-coded-G (addressable RGB)
• Colour: Transparent
• Weight: 0.097 kg

How to use

Mount the 120 mm fan in a suitable position in the PC case using the provided mounting points and rubberized contact pads to reduce vibration transfer. Connect the 4-pin PWM cable to a compatible fan header on the motherboard to enable automatic speed control. For RGB lighting, plug the addressable RGB cable into a 5V-D-G or 5V-D-coded-G header on the motherboard or an external compatible controller, then adjust lighting effects through the motherboard’s RGB software or controller settings.

Recommendations

Install the fan with airflow direction aligned to your case cooling plan (intake or exhaust). Ensure the motherboard header supports 5V addressable RGB for full LED functionality and keep fan dust-free for optimal lifetime and consistent performance.
