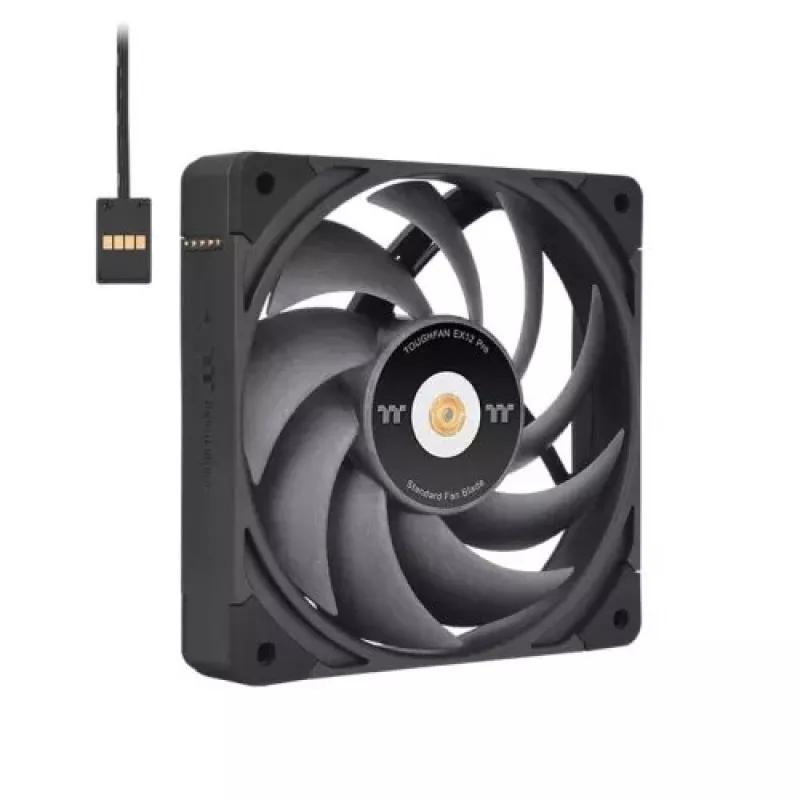

Ventilátor Thermaltake CL-F172-PL14BL-A

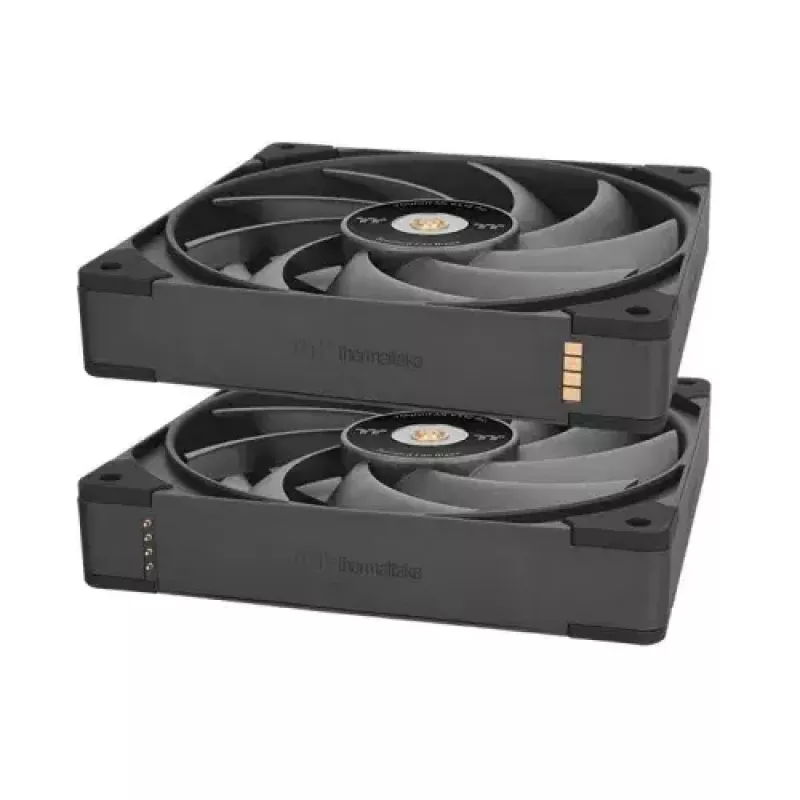

The TOUGHFAN EX Pro combines the MagForce 2.0 quick magnetic connection and a swappable fan blade design with the proven TOUGHFAN Pro platform to deliver strong cooling performance and flexible installation. Its enlarged Pogo pin contact pads improve alignment tolerance for reliable connections when daisy-chaining fans or using cables. The fan features nine lengthened blades made from liquid crystal polymer (LCP) for higher airflow, increased static pressure and reduced vibration, a square frame that limits air leakage when mounted to a chassis or radiator, and an anti-vibration mounting system with in-mold rubber pads covering 80% of the corners.

Advantages

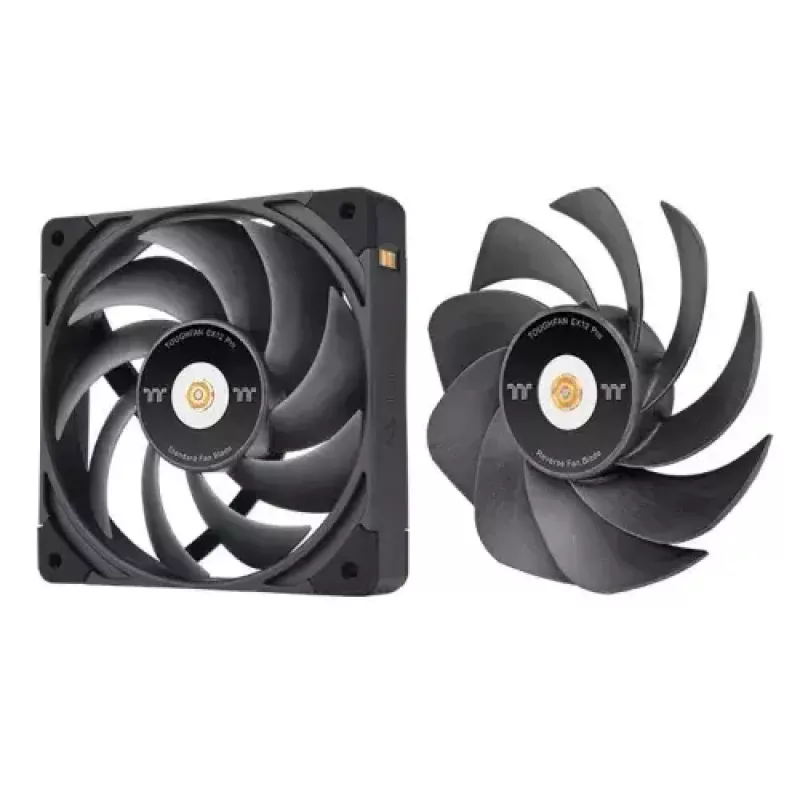

MagForce 2.0 provides a steady, quick-connect magnetic interface that simplifies installation and reduces cable clutter. The swappable LCP blades allow easy cleaning and replacement, while their optimized shape delivers improved airflow and static pressure. The reinforced structure supports a maximum speed up to 2000 RPM and the square frame design reduces air leakage. In-mold injection anti-vibration pads lower operational noise by damping vibration, and the overall design lets the fan face forward for consistent aesthetics and airflow direction.

Key specifications

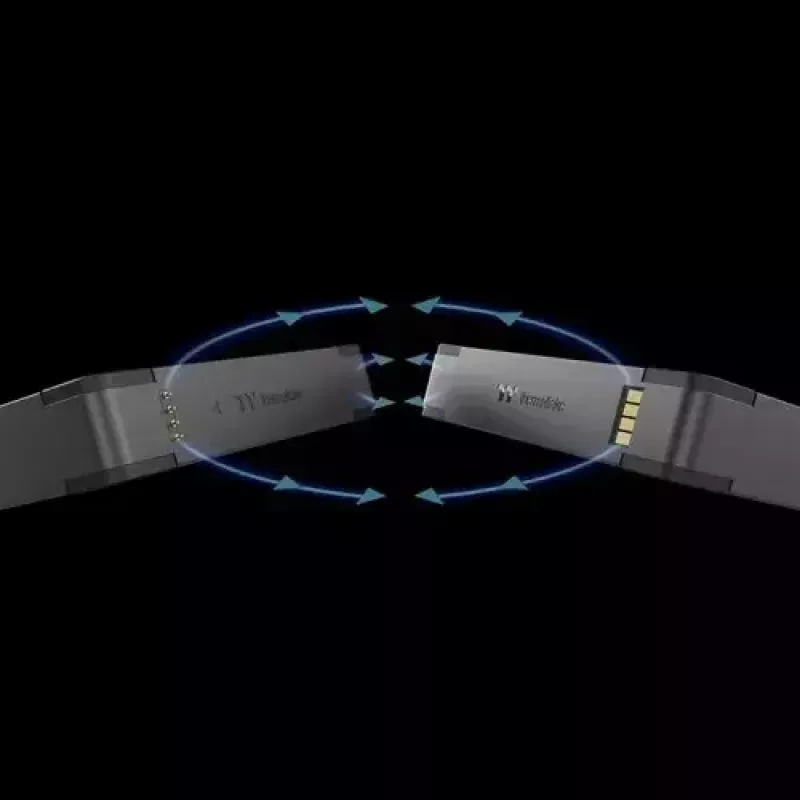

• Connection: MagForce 2.0 quick magnetic connect with enlarged Pogo pin contact pads
• Blade material: Liquid crystal polymer (LCP)
• Blade count: 9 lengthened fan blades
• Maximum speed: 2000 RPM
• Frame: Square frame with reduced air leakage outline
• Anti-vibration system: In-mold injection rubber pads covering 80% of corners
• Maintenance: Swappable blades; washable with water and re-lubricate bearing if needed

How to use

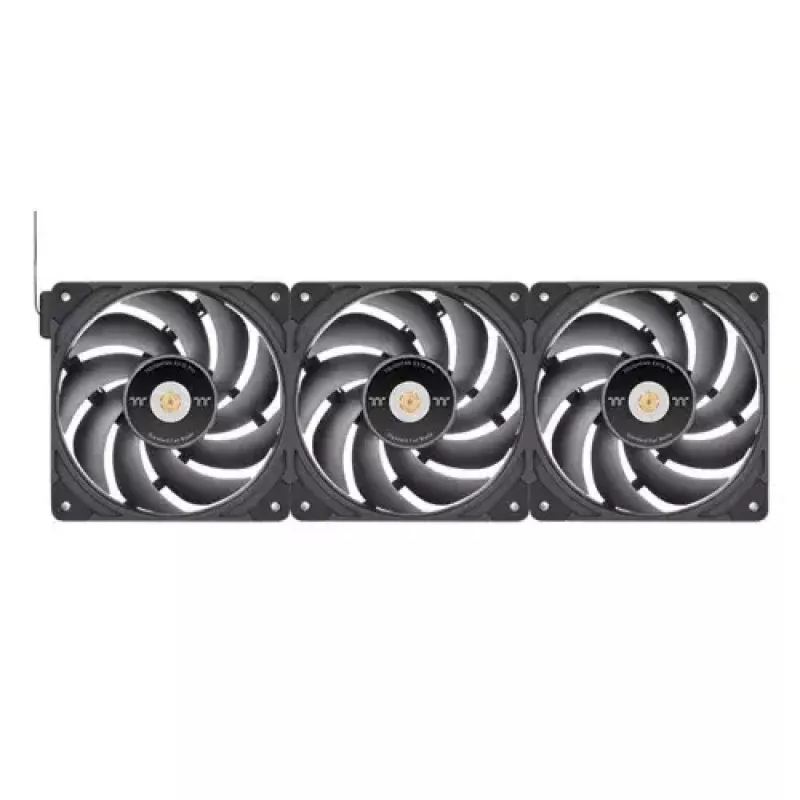

Attach the TOUGHFAN EX Pro using the MagForce 2.0 magnetic connector or standard cable connection as required, ensuring pogo pin pads align during installation. For radiator or chassis mounting, position the square frame to minimize air leakage and secure with the provided mounting hardware and rubber pads. To clean, gently pop out the swappable blades, rinse with water, dry thoroughly and apply the included bearing lubricant if necessary before reassembly. When daisy-chaining multiple fans, connect them in sequence using the magnetic connections for faster setup.

Recommendations

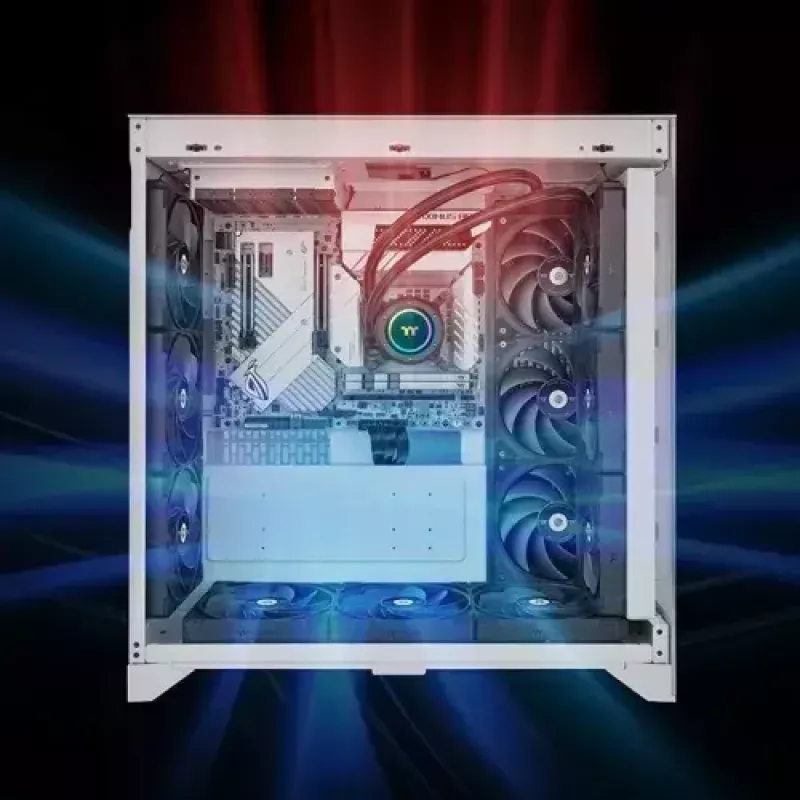

Use the TOUGHFAN EX Pro for CPU, GPU or chassis cooling where high airflow and static pressure are required. Ensure blades are fully dry before reinstallation and follow the included lubrication instructions to maintain bearing performance. When installing multiple fans, check alignment of Pogo pin contact pads to prevent connection faults.
