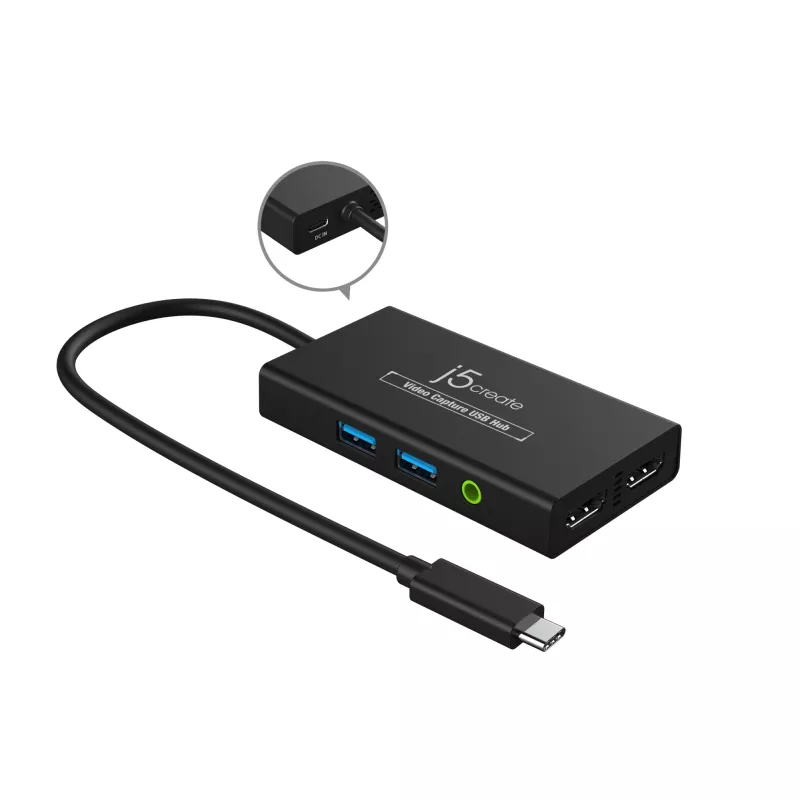

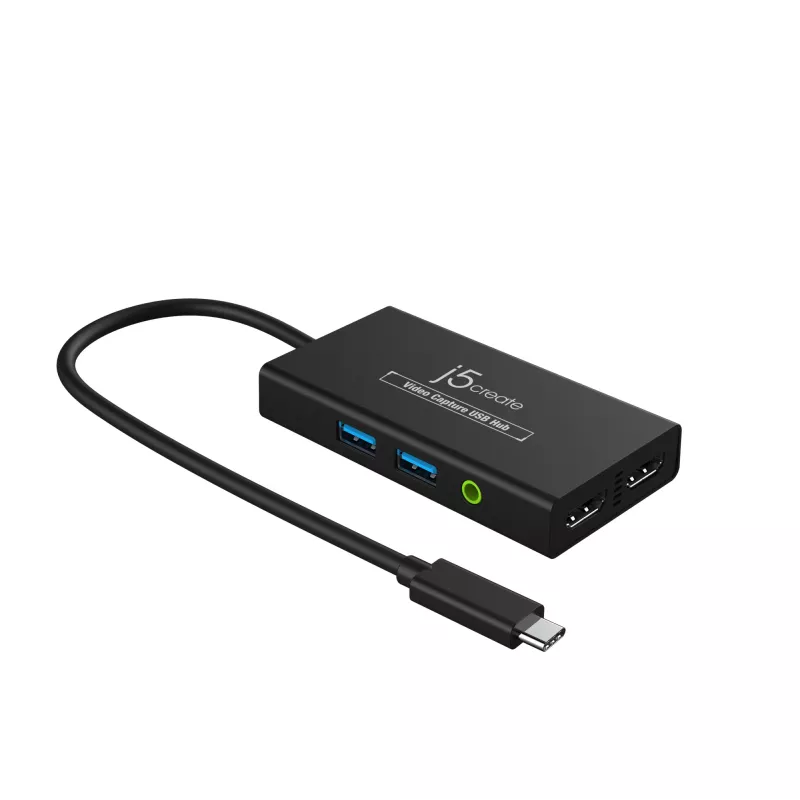

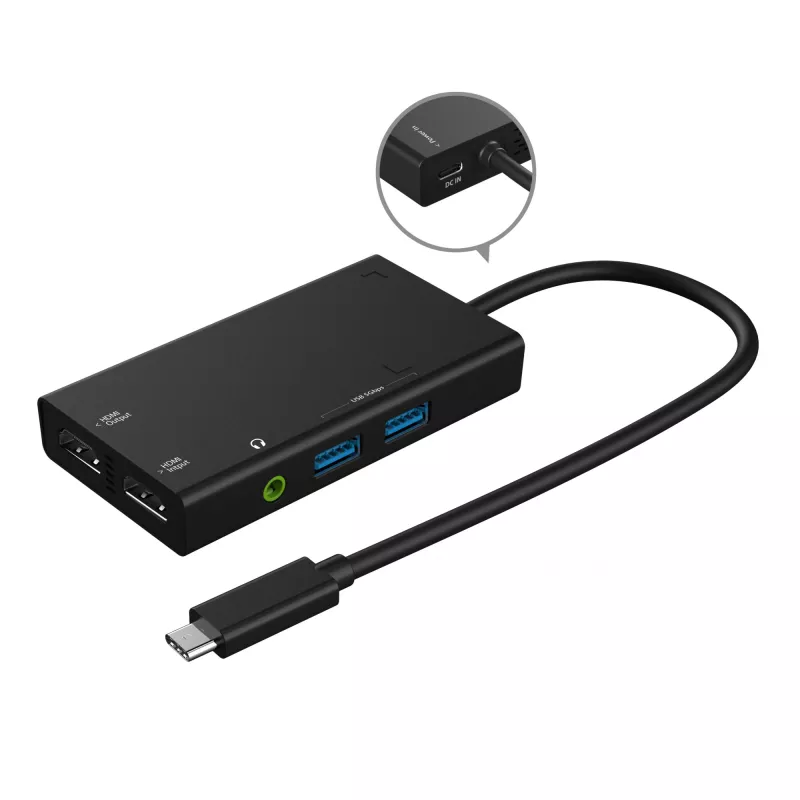

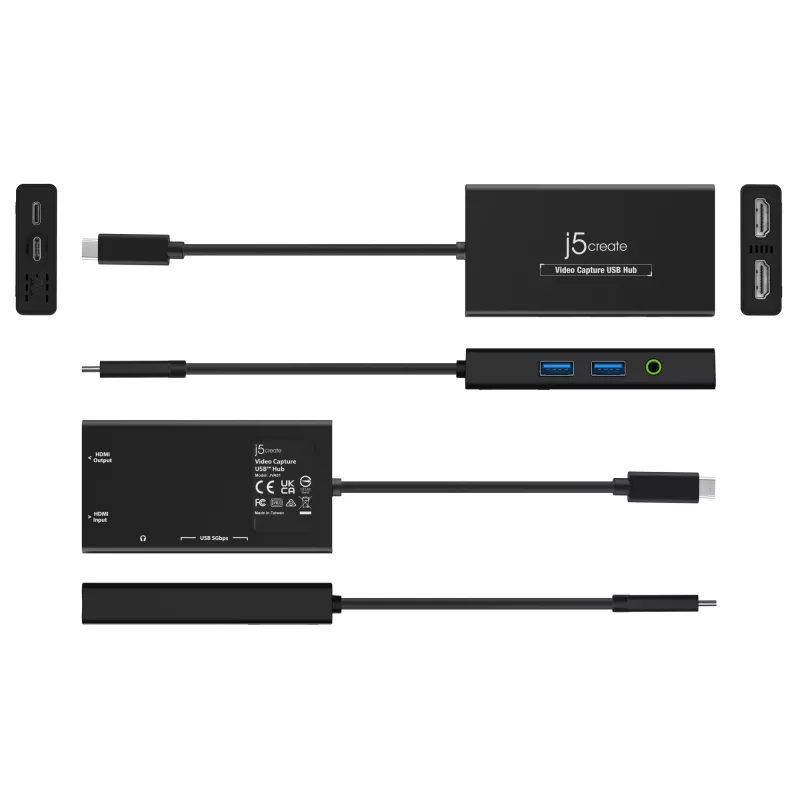

Video Capture USB Hub j5create JVA01-N 1920x1080 30Hz čierny

The j5create Video Capture USB Hub JVA01-N combines an HDMI capture card and a USB-C hub in a single compact device. It captures video at 1920×1080 (Full HD) up to 30 Hz from an HDMI source, supports HDMI input resolutions up to 3840×2160, and provides a 4K USB-C display output while offering Power Delivery 3.0 for upstream charging. The hub includes two SuperSpeed USB 5 Gbps ports and connects via USB 3.2 Gen 1, making it suitable for mobile streaming and everyday peripheral expansion.

Advantages

This USB-C video capture hub supports Full HD (1920×1080, 30 Hz) capture and can accept HDMI input up to 4K, while also providing a 4K display output over USB-C. Power Delivery 3.0 allows charging of the host device during use, and two SuperSpeed USB 5Gbps ports expand connectivity for external drives, input devices, or other peripherals. The compact, lightweight design is optimized for portability and simple setup using standard USB 3.2 Gen 1 connectivity.

Suitable for

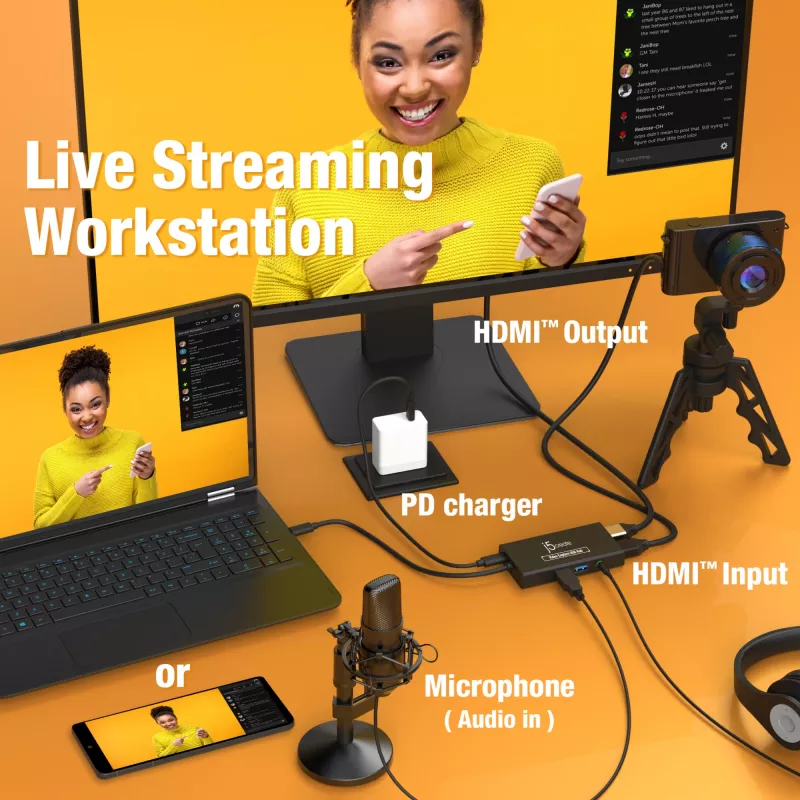

• Mobile streaming and live broadcasts from HDMI sources (cameras, consoles, media players)
• Remote meetings or presentations requiring HDMI capture
• Expanding laptop connectivity with two USB peripherals and an external 4K display
• Content creators who need a portable capture solution

Key specifications

• Model: j5create JVA01-N
• Capture resolution: 1920×1080 (Full HD) at 30 Hz
• Maximum HDMI input supported: up to 3840×2160
• USB interface: USB 3.2 Gen 1 (SuperSpeed)
• USB ports: two SuperSpeed USB 5 Gbps ports
• Power: Powered via USB, supports Power Delivery 3.0, 20 V input
• Color: Black

How to use

Connect the hub to your host device via the USB-C connection and, if required, provide external power through a PD-compatible USB-C power adapter. Plug your HDMI source into the hub’s HDMI input to begin capturing video at 1920×1080 30 Hz. Use the two SuperSpeed USB ports to attach peripherals such as keyboards, mice, or external storage. When not capturing, use the device as a standard USB-C hub to drive a 4K display and additional USB devices.

Recommendations

For stable capture and charging, use a PD-compliant USB-C power adapter and high-quality HDMI and USB cables. Ensure the host system meets USB 3.2 Gen 1 requirements and that capture software supports 1080p30 input. For best results during mobile streaming, close unnecessary applications to free system resources.
