Video vrátnik Hikvision DS-KIS602 2 MP 7 palcov čierna sivá

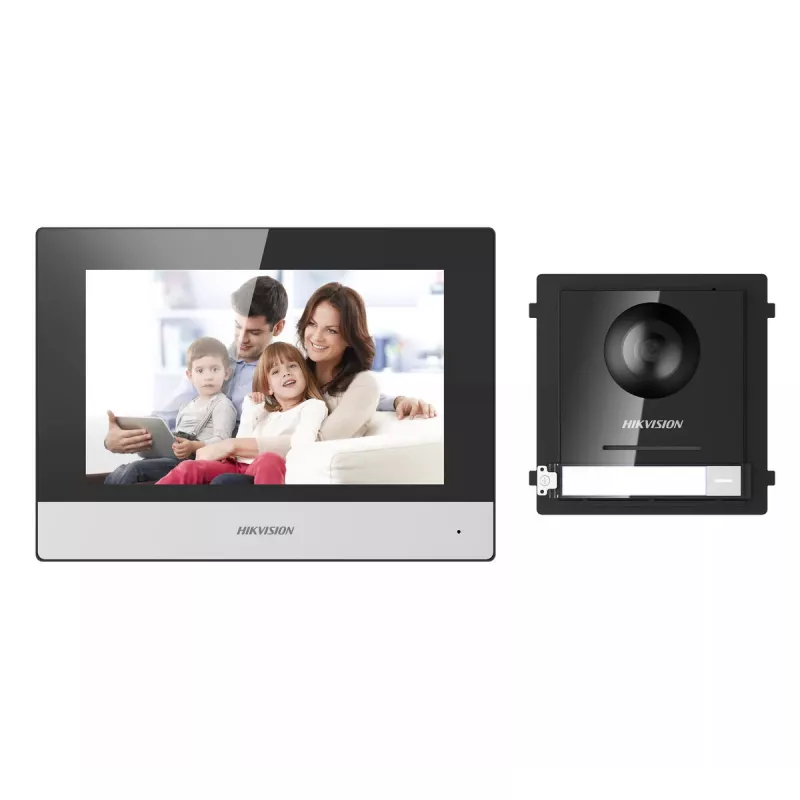

The Hikvision DS-KIS602 2 MP 7" Black Grey video intercom system combines a 7-inch LCD indoor monitor with a 2 MP outdoor station to provide two-way audio and video communication for access control and visitor management. The indoor unit features a 7" display with 1024 x 600 pixel resolution for clear live video and menu navigation. The outdoor station supports up to 1920 x 1080 pixel video capture, a wide 180° horizontal viewing angle and IP65-rated housing for protection against dust and water. Wired Fast Ethernet and built-in Wi‑Fi connectivity allow flexible network connection options, while DC power supply is used for both indoor and outdoor units.

Advantages

The system delivers clear video with support for full HD capture at the outdoor station while the indoor monitor presents a sharp 7" view suitable for identifying visitors. Robust IP65 protection ensures the outdoor unit operates in varying weather conditions. Multiple connectivity options, including Fast Ethernet and Wi‑Fi, enable integration into existing IP networks and remote access possibilities. The wide 180° horizontal viewing angle reduces blind spots at the entrance.

Suitable for

• Residential building entrances and single-family homes
• Small offices and reception points requiring visitor verification
• Gated entries and apartment lobbies with moderate traffic
• Retrofit projects where both wired and wireless network options are needed

Key specifications

• Indoor display: 7" LCD, 1024 x 600 pixels
• Outdoor camera resolution: up to 1920 x 1080 pixels (2 MP)
• Horizontal viewing angle: 180°
• Ingress protection: IP65 for outdoor unit
• Network: Fast Ethernet and built-in Wi‑Fi
• Power type: DC supply for indoor and outdoor units

How to use

Mount the outdoor station at the entry point at a height that provides optimal framing of visitors; the wide horizontal angle helps cover entrances and walkways. Install the indoor monitor in a convenient indoor location where the 7" screen is easily visible. Connect both units to a DC power source and join them to the local network using Ethernet or the built-in Wi‑Fi. Use the on-screen menu to configure network settings, adjust camera orientation and set call handling preferences. During operation, the indoor monitor displays live video and allows two-way audio communication and door release control when integrated with an electric lock.

Recommendations

For reliable outdoor performance, ensure the outdoor unit is installed under minimal direct exposure to heavy rain or prolonged sunlight when possible, and verify power and network connections during initial setup. Regularly check firmware updates to maintain compatibility and security.
