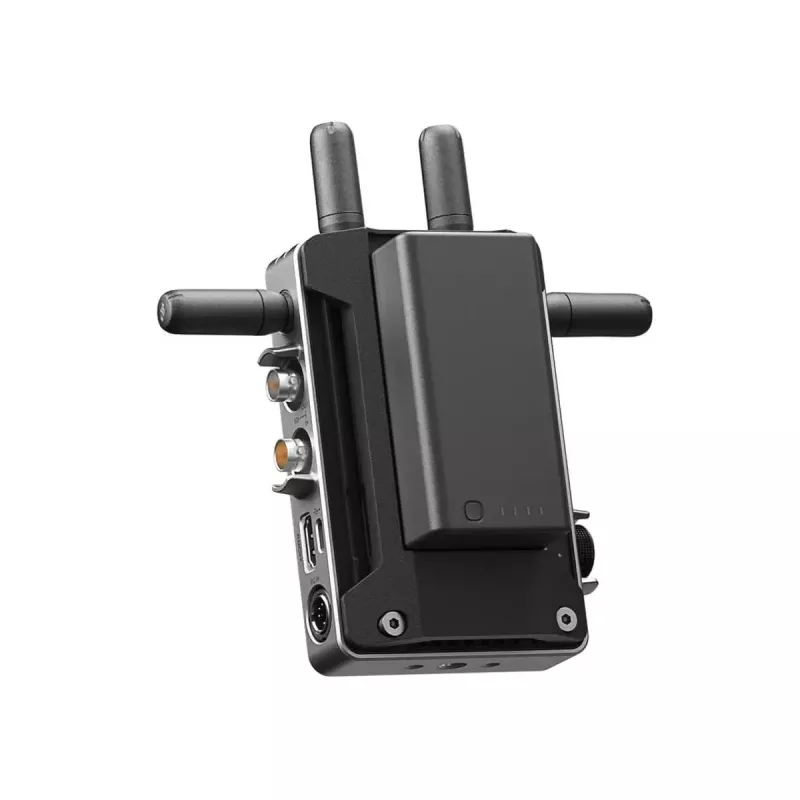

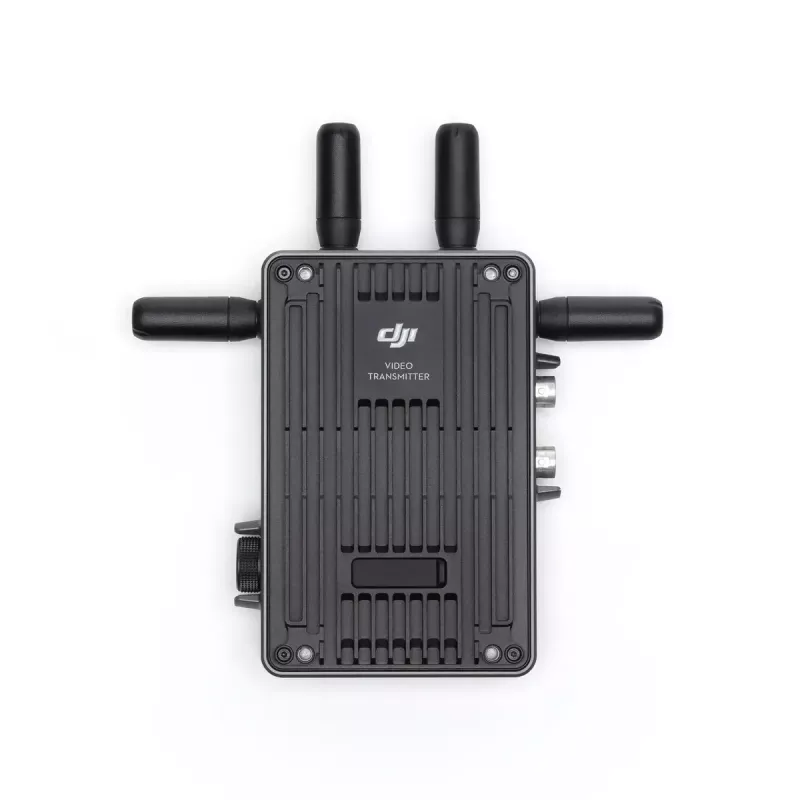

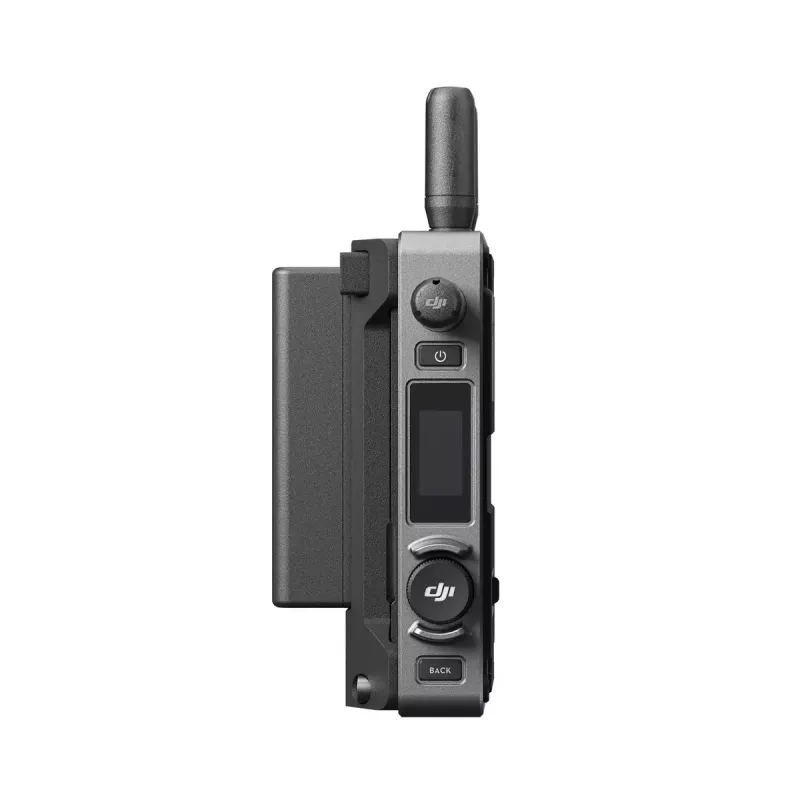

Videosender DJI CP.RN.00000180.01 čierna

The DJI Video Transmitter (CP.RN.00000180.01) is an integrated solution for professional video transmission that combines a video receiver, high-bright monitor, controller, and recorder. Designed for native integration with Ronin-series gimbals and DJI Master Wheels, it provides long-range 1080p/60fps live feed with low latency, support for live audio monitoring, AES 256-bit encryption, and options for single-transmitter multi-receiver workflows. The compact, integrated design includes a built-in image processing chip and a microSD slot for independent recording of the live feed.

Advantages

The transmitter delivers long-distance HD live transmission up to 6 km on-ground using O3 Pro technology, supports 1080p/60fps at up to 40 Mbps and 16-bit/48 kHz audio monitoring, and uses the same chip solution as Ronin 4D for end-to-end ultra-low latency. Triple-band automatic frequency hopping with DFS bands and a built-in frequency sweeper reduce interference, while AES 256-bit encryption protects the signal. The High-Bright Remote Monitor integrates receiving, monitoring, control, and recording in one portable unit and supports independent recording and playback from a microSD card.

Suitable for

• Professional film and commercial productions
• Large sets with remote monitoring and audio needs
• Teams requiring multiple receivers (broadcast or monitoring setups)

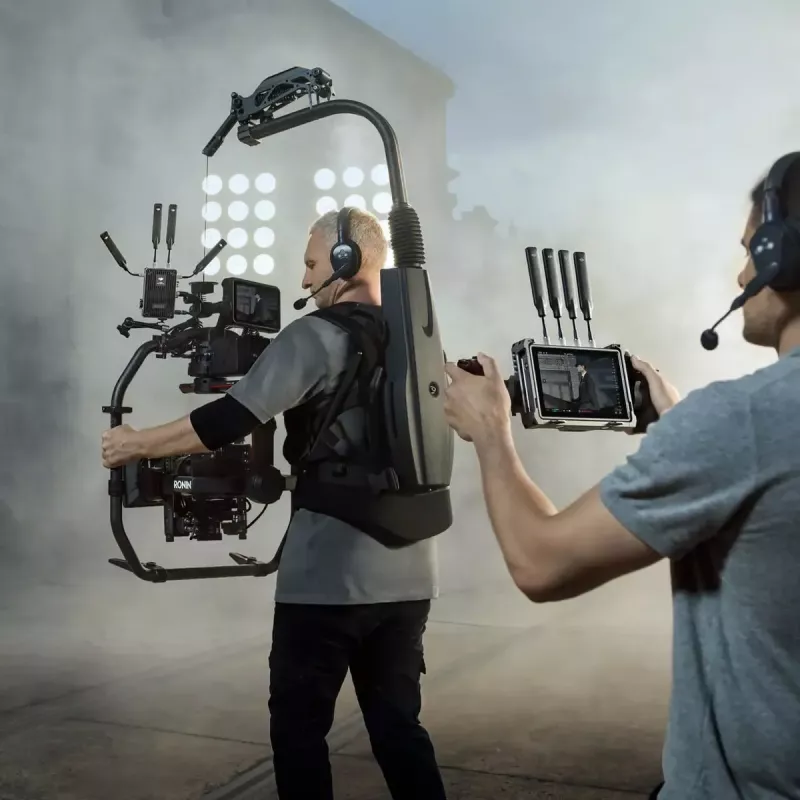

• Gimbal-mounted camera configurations with Ronin 2, RS 3 Pro, or Ronin 4D

Key specifications

• Model: CP.RN.00000180.01
• Brand: DJI
• Transmission technology: O3 Pro
• Maximum on-ground transmission distance: up to 6 km / 20,000 ft
• Video output: up to 1080p @ 60 fps
• Maximum bitrate: 40 Mbps
• Audio: 16-bit, 48 kHz live audio monitoring
• Encryption: AES 256-bit
• Recording: microSD slot, records 1080p/60fps H.264
• Ports: 3G-SDI Loop Out
• Power: can be powered directly by Ronin 2 or RS 3 Pro gimbal
• Compatibility: Ronin 2, RS 3 Pro, Ronin 4D, DJI Master Wheels, DJI Force Pro

How to use

Mount the video transmitter on the gimbal cold shoe or attach it according to your gimbal model and power it directly from a compatible Ronin gimbal when available. Use the High-Bright Remote Monitor to receive and view the live 1080p/60fps feed, monitor audio, and control compatible gimbal and camera functions. Insert a microSD card into the monitor to record the incoming feed independently; recording can synchronize with camera start/stop and access timecode when supported. Choose Control mode for optimized transmission and remote gimbal control, or enable Broadcast mode when many receivers are needed (note broadcast may affect transmission performance).

Recommendations

For stable long-distance operation, mount high-gain antennas and enable triple-band automatic frequency hopping or manually select an interference-free channel using the built-in frequency sweeper. Use AES 256-bit pairing for secure connections and consider using compatible Ronin gimbals or Master Wheels to take full advantage of low-latency control and extended transmission range.
