Videostenný držiak B-TECH BT8312/B ultra-slim Pop-Out

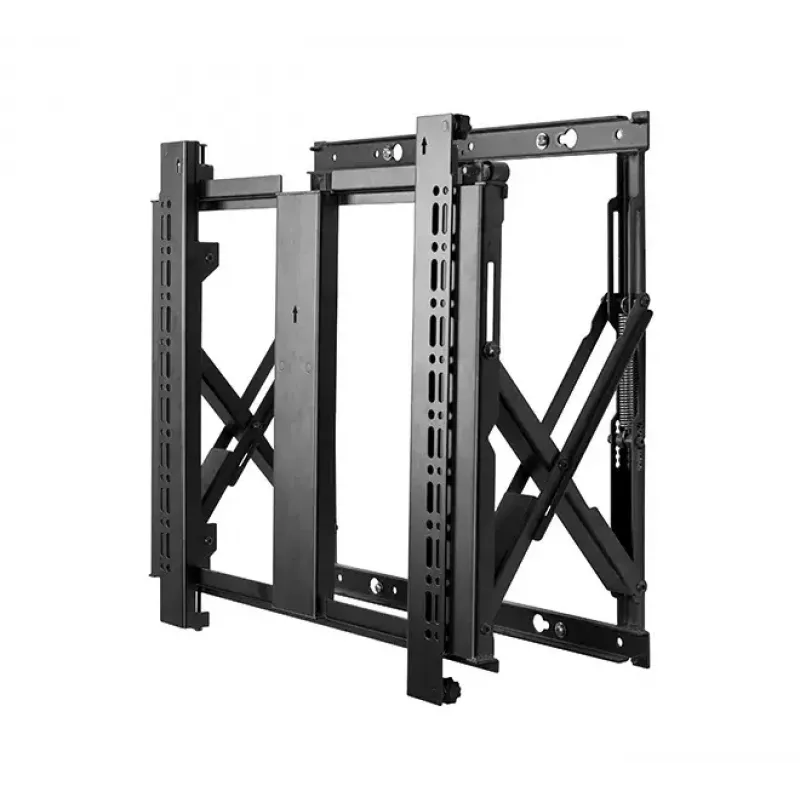

Ultra-Slim Pop-Out Video Wall Mount, 42" - 70", Max 50 kg, 200 x 100 - 400 x 400 VESA. The B-TECH BT8312/B is a modular, low-profile video wall mount designed for straightforward installation and maintenance. It supports both landscape and portrait orientations and includes interface adaptor arms for VESA 600 x 400 screens. The pop-out mechanism provides easy rear access to cables and connections while integrated locking and safety screws enhance security and prevent accidental removal.

Advantages

The mount features an ultra-slim design for installations in shallow recesses or where minimal projection from the wall is required. Its modular construction allows creation of video wall assemblies in unlimited configurations and the pop-out system gives quick service access. Tool-less corner micro-adjustment of +/-7.5 mm and +15 mm screen height adjustment enable precise alignment. The mount supports both wall and pole mounting, includes keyhole mounting for fast installation, and ships with all required hardware and interface adaptor arms. An integrated locking mechanism and safety screws reduce the risk of accidental or unauthorised removal.

Suitable for

• Single displays from 42" to 70" with VESA 200 x 100 up to 400 x 400
• Installations where low profile or shallow recess mounting is required

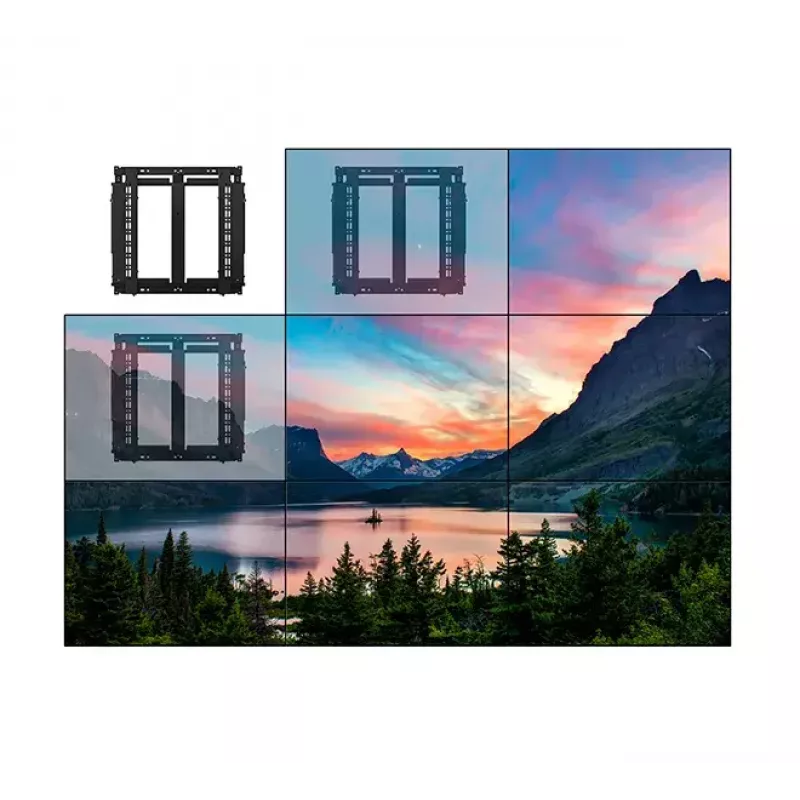

• Video wall configurations in landscape or portrait orientation
• Environments requiring regular access to rear connections for maintenance

Key specifications

• Maximum weight capacity: 50 kg
• Supported screen sizes: 42"–70"
• VESA compatibility: 200 x 100 to 400 x 400 (includes adaptor arms for 600 x 400)

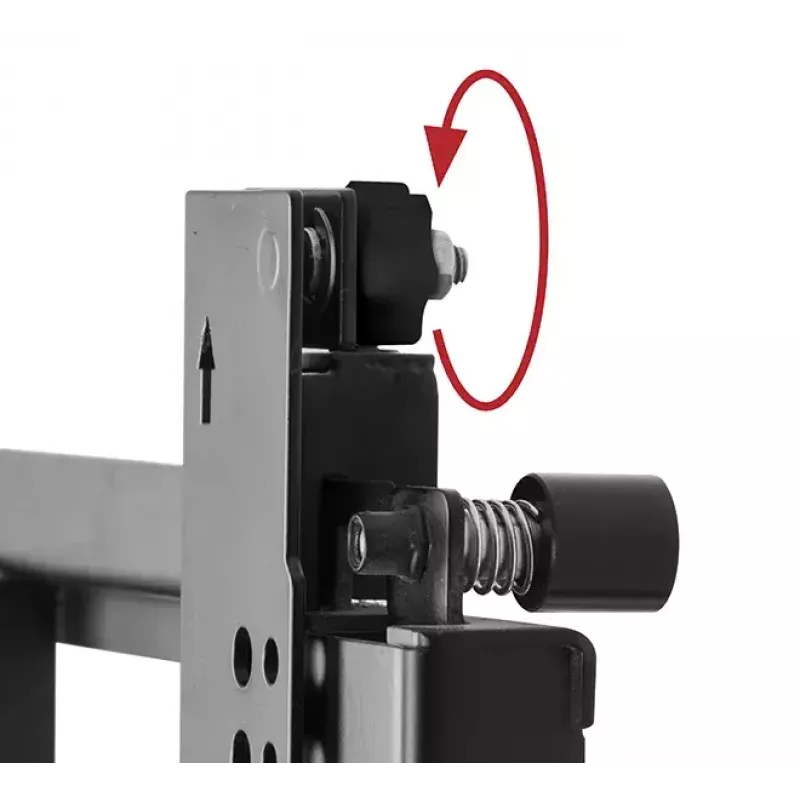

• Adjustments: tool-less +/-7.5 mm micro-adjustment per corner; +15 mm height adjustment
• Mounting options: wall or pole; landscape or portrait
• Finish: Black; mounting hardware included
• Model: B-TECH BT8312/B

How to use

Fix the mount to the wall or pole using the supplied mounting hardware and the included mounting template if preferred. Attach the interface adaptor arms to match your screen’s VESA pattern, then hang the display on the keyhole fittings and secure with the integrated locking mechanism and safety screws. Use the pop-out function to access rear connections and perform maintenance. Apply the tool-less corner micro-adjustments and the +15 mm height adjustment to achieve seamless alignment between adjacent screens.

Recommendations

For safe installation, ensure the supporting wall or pole can sustain the combined weight of the mount and display (maximum 50 kg). Use the provided mounting template or optional spacers to speed up alignment and follow local building codes and safety practices during installation. Tighten safety screws after final positioning and perform periodic checks of fixings and locks.
