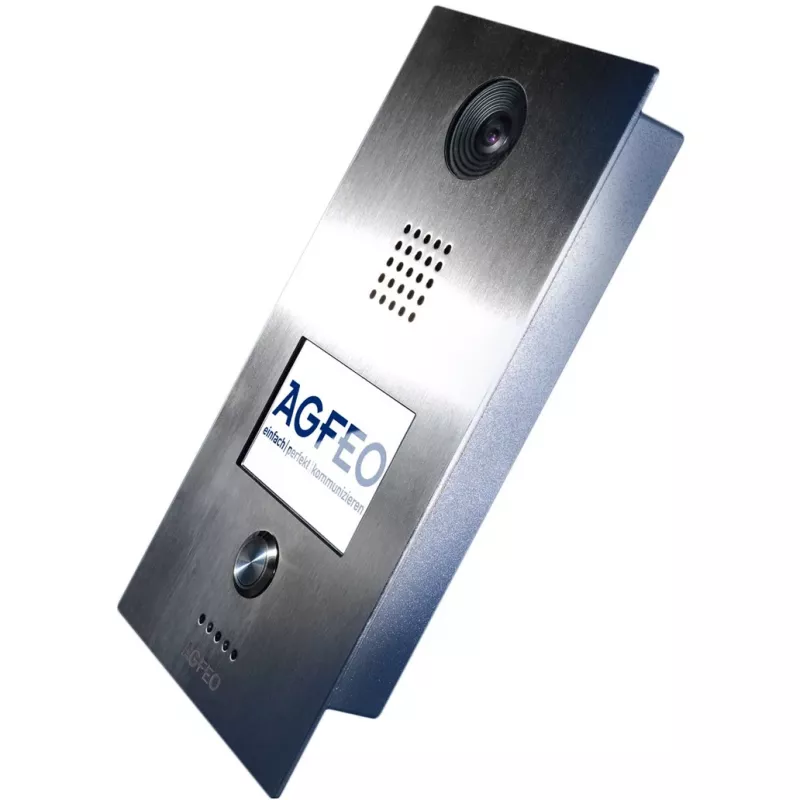

Videovrátnik AGFEO IP-Video TFE 1

The AGFEO IP-Video TFE 1 is a video intercom system designed for entrance control and visitor communication. It features a 3.5" TFT display with 480 x 320 pixels native resolution and supports a maximum image resolution of 1280 x 720 pixels at up to 20 frames per second. The unit uses G.711 voice codecs for audio transmission and connects via Ethernet with 10/100 Mbit/s data rates, complying with IEEE 802.3af power-over-Ethernet standards. The housing is rated IP65 for dust and water resistance, making the device suitable for outdoor installation where protection against spray and dust is required.

Advantages

The AGFEO IP-Video TFE 1 provides a compact user interface with clear video and audio communication enabled by its 3.5" TFT screen, 720p maximum image support and G.711 codec compatibility. Ethernet connectivity with 10/100 Mbit/s and IEEE 802.3af compliance allows for simplified installation using Power over Ethernet where supported. An IP65-rated enclosure ensures reliable operation in exposed conditions, reducing the risk of damage from weather and dust.

Suitable for

• Entrance panels for residential and small commercial buildings
• Office reception and access control points
• Outdoor door stations exposed to weather
• Sites requiring integration with IP-based phone or control systems

Key specifications

• Display: 3.5" TFT, 480 x 320 pixels native resolution
• Maximum image resolution: 1280 x 720 pixels
• Frame rate: up to 20 frames per second
• Audio codec: G.711
• Network: Ethernet 10/100 Mbit/s
• Power: IEEE 802.3af Power over Ethernet compatible
• Ingress protection: IP65 (dust and water resistant)

How to use

Mount the AGFEO IP-Video TFE 1 at the chosen entrance following local installation regulations and mounting instructions from the manufacturer. Connect the device to the network using a standard Ethernet cable to a Power over Ethernet (PoE) switch or injector that complies with IEEE 802.3af, or follow alternative power wiring if specified by the system documentation. Configure network settings and intercom integration through the connected IP phone system or control software to enable video calls, audio transmission using G.711 and door-release functions where applicable. Verify image quality, frame rate, and audio during setup and adjust camera positioning and network parameters as needed for reliable operation.

Recommendations

For optimal performance, use a PoE source that meets IEEE 802.3af standards and ensure a stable 10/100 Mbit/s network connection. Install the unit with appropriate mounting height and angle to achieve good visibility of visitors, and perform periodic checks of seals and wall penetrations to maintain the IP65 protection level.
