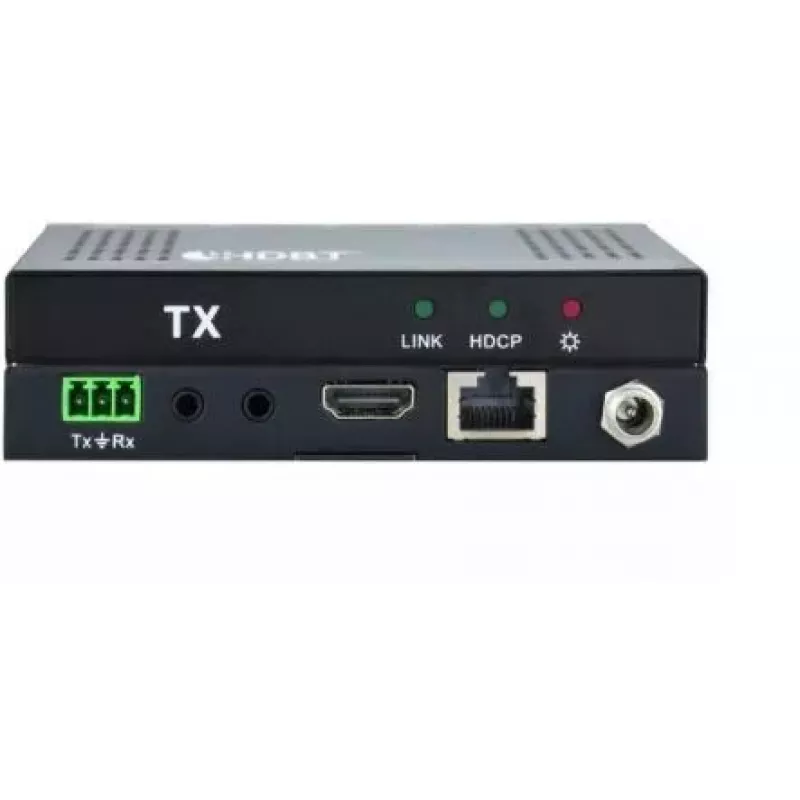

Vivolink VL120016T AV extender AV vysielač čierna

The Vivolink VL120016T is a compact HDBaseT AV transmitter designed for wired video distribution over a single CAT5e/6 cable. It supports transmission of 4K and 1080p video signals, with a maximum reach of up to 40 m (131 ft) for 4K content and up to 70 m (230 ft) for 1080p. The unit is small and lightweight, measures 115 x 84 x 16.2 mm, operates from a 24 V supply and accepts AC input of 100–240 V at 50–60 Hz. It is compatible with RS-232 serial control and fits into professional AV installations requiring reliable point-to-point transmission.

Advantages

The VL120016T offers HDBaseT transmission in a mini form factor, combining long-distance video extension, support for both 4K and Full HD resolutions, and compatibility with common control interfaces such as CEC and RS-232. Its PoH (Power over HDBaseT) one-way function simplifies power management in setups that use a powered receiver or transmitter. Compact dimensions and standard AC input range make it easy to install in varied environments.

Suitable for

• Point-to-point AV extension between source devices and displays
• Conference rooms and meeting spaces requiring remote displays
• Digital signage installations with centralized media players
• Professional AV systems using RS-232 or IR control

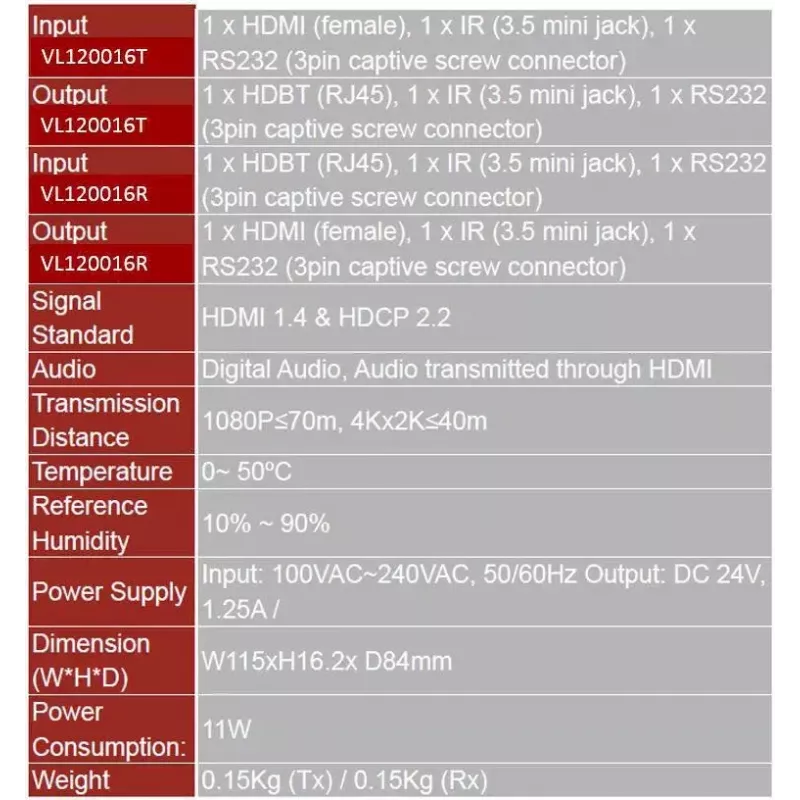

Key specifications

• Model: Vivolink VL120016T
• Transmission standard: HDBaseT
• Video support: 4K up to 40 m (131 ft), 1080p up to 70 m (230 ft) over single CAT5e/6
• Control interfaces: CEC, bidirectional RS-232, IR
• Power: operates on 24 V; AC input 100–240 V, 50–60 Hz
• Dimensions: 115 x 84 x 16.2 mm
• Colour: Black
• Weight: 0.5 kg

How to use

Connect the VL120016T transmitter to the source device using the appropriate AV output, then run a single CAT5e/6 cable from the transmitter to a compatible HDBaseT receiver. Ensure the power supply is connected according to the installation: either provide local 24 V power to the transmitter or use PoH if the receiver supplies power. Configure any required control settings for CEC, RS-232 or IR on the source and display devices to enable remote control functions.

Recommendations

Use high-quality CAT5e or CAT6 cabling and avoid running the cable alongside heavy electrical wiring to reduce interference. For 4K signals keep runs within the specified 40 m limit; for longer runs use 1080p to maintain signal integrity. Verify power and control settings during installation and test RS-232/IR control paths before finalizing the setup.
