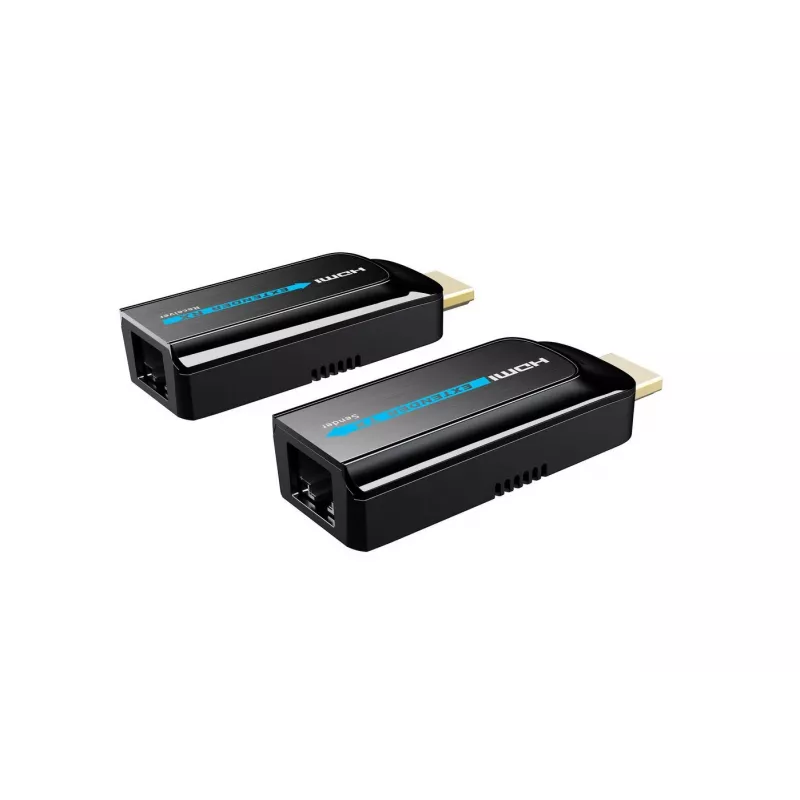

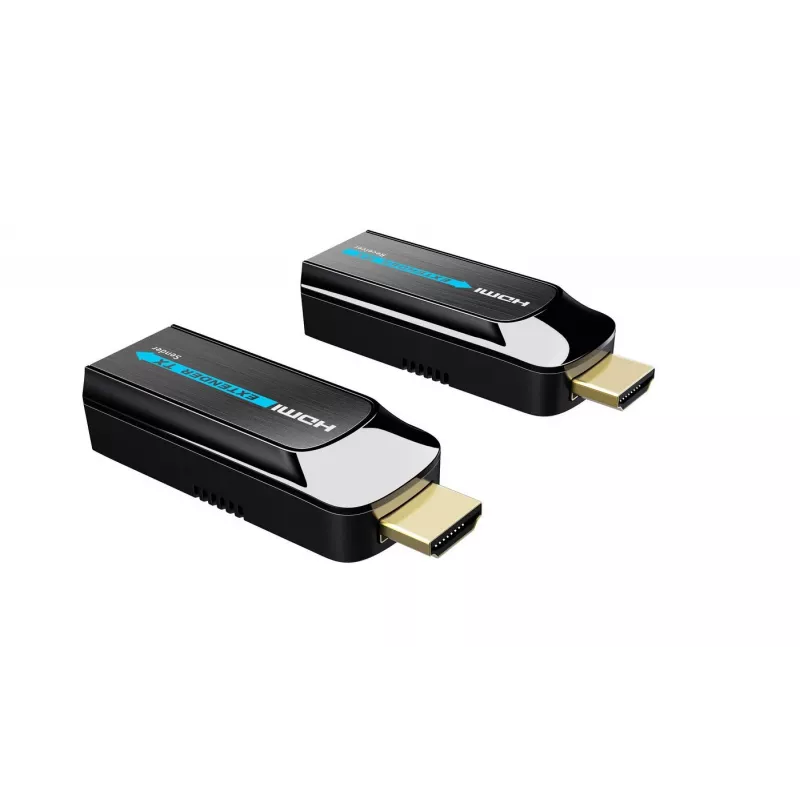

Vivolink VLHDMIEXTDGL50 AV extender AV vysielač a prijímač čierny

Ultra cost efficient HDMI extension dongles that extend HDMI signals up to 50 m over CAT6a/CAT6 cable. The kit supports Power over Cable (PoC) from the transmitter to the receiver and is suitable for locations where a simple point-to-point HDMI connection is required, such as private installations, shop information screens or office displays.

Advantages

This HDMI extender provides a budget-friendly solution for transmitting 1080P@60Hz video up to 50 m using CAT6a/CAT6 cable. PoC capability eliminates the need for a separate power source at the receiver end. The package includes USB power cables for easy setup.

Key specifications

• Extension distance: up to 50 m over CAT6a/CAT6 cable
• Resolution supported: 1080P @ 60 Hz
• Connection type: point-to-point (Tx to Rx)
• Power: Power over Cable (PoC) from transmitter to receiver
• Included accessories: USB power cables

How to use

Connect the transmitter to the HDMI source and the receiver to the display. Link the two units with a CAT6a or CAT6 cable up to 50 m. Provide power via the transmitter so that PoC supplies the receiver, or use the included USB power cables if a local power source is required. Verify the display resolution is set to 1080P@60Hz for best results.

Recommendations

Use high-quality CAT6a or CAT6 cable for reliable signal transmission. For installations approaching the 50 m limit, test the setup before final installation and use shielded cables in environments with potential interference.
