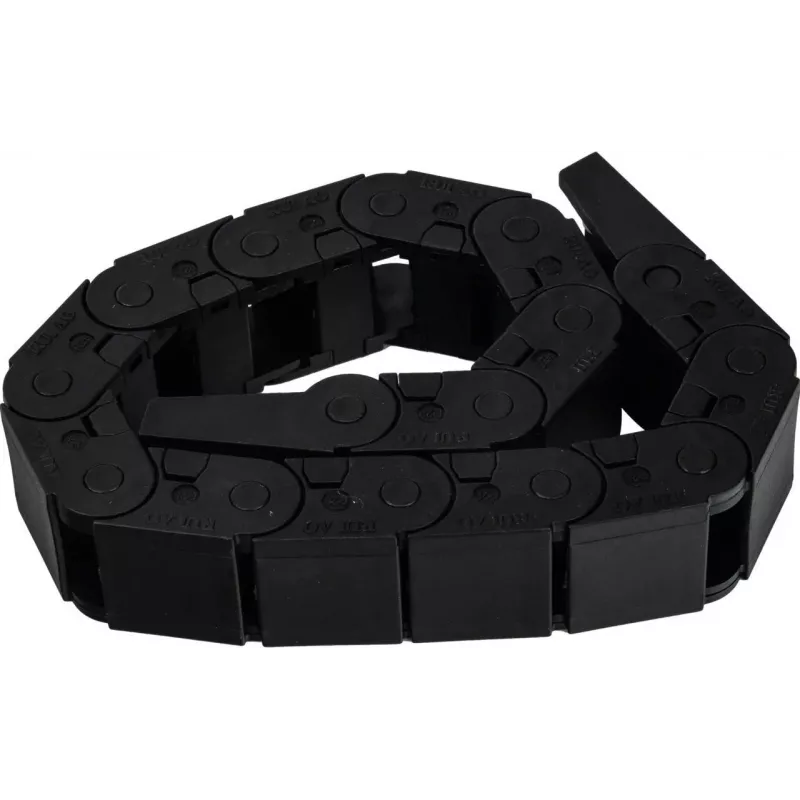

Vlečná reťaz osi Z pre Flashforge GUIDER3 PLUS (model 50002539001) – Ultra séria

Replacement Z-axis drag chain designed for the Flashforge GUIDER3 PLUS 3D printer. This Ultra series drag chain guides and protects cables and hoses along the printer's Z-axis, maintaining consistent vertical movement and reducing the risk of cable wear, snagging, or entanglement. Intended as a maintenance or upgrade component, it supports continued reliable print performance and helps extend the service life of motion-related parts in the GUIDER3 PLUS.

Advantages

The drag chain is constructed to provide stable cable routing and reduce mechanical stress on wiring during repeated Z-axis travel. Its form factor minimizes friction and prevents cables from rubbing against moving parts. Compatibility with the GUIDER3 PLUS ensures straightforward fitment without the need to modify the printer frame or cabling arrangement. The design contributes to quieter operation by preventing cable flapping and to predictable motion by keeping cables constrained within a defined path.

Suitable for

• Maintenance replacement of worn or damaged Z-axis cable guidance on Flashforge GUIDER3 PLUS
• Upgrading existing cable management to improve cable longevity and motion reliability
• 3D printing workspaces where consistent Z-axis movement is required for print quality
• Repair shops and service centers performing routine maintenance on GUIDER3 PLUS printers

Key specifications

• Compatibility: Designed for Flashforge GUIDER3 PLUS Z-axis cable routing
• Function: Guides and protects electrical cables and pneumatic or filament tubes along vertical axis
• Material characteristics: Durable polymer construction for low friction and wear resistance
• Form factor: Enclosed link chain that constrains cables within a fixed path for controlled motion
• Mounting: Intended for direct replacement mounting at Z-axis cable entry points without frame alteration

How to use

Power down the printer and secure the build platform to prevent unintended movement. Remove the existing drag chain by unfastening its mounting points and carefully withdrawing cables and tubes from their channels. Install the replacement drag chain in the same orientation, route the cables and hoses through the chain channels ensuring adequate slack for the full range of Z-axis travel, and reattach mounting hardware securely. Test manual Z-axis movement to confirm smooth operation and verify that no cables are pinched or strained during travel before restoring power and resuming printing.

Recommendations

Regularly inspect the drag chain and its routed cables for abrasion, kinks, or loosened mounts. Maintain sufficient but not excessive cable slack to accommodate full Z-axis travel. Replace the drag chain if links show cracking or deformation to prevent sudden cable damage and to preserve print accuracy.
