Vogel's PUC 1065 montážny držiak Vogel's 73202027

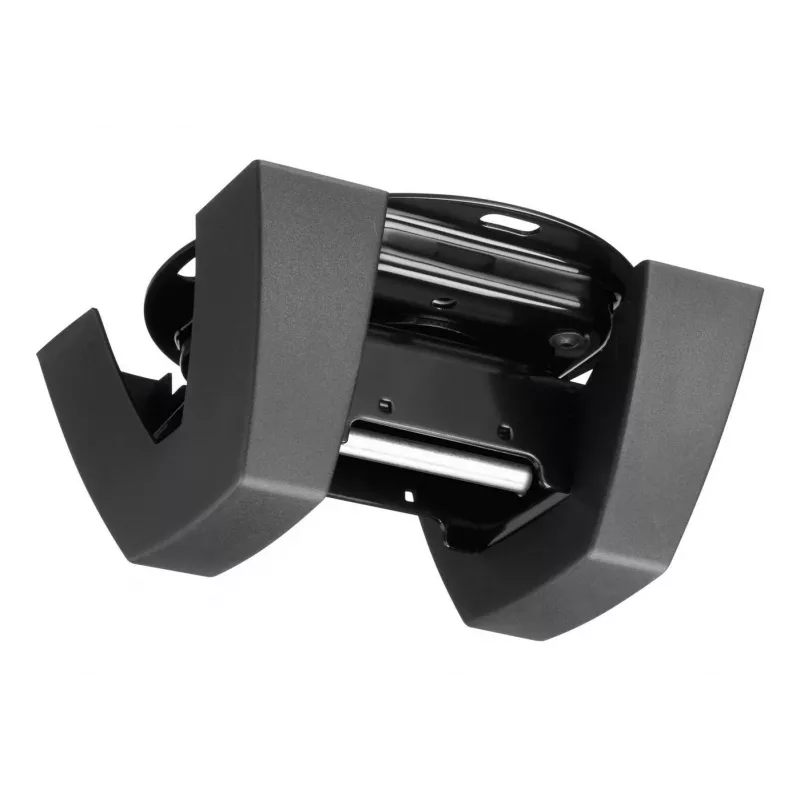

The Vogel's PUC 1065 ceiling plate is a component of the modular Connect-it system designed to create ceiling-mounted display solutions for medium to large screens. It supports a single display up to 80 kg or two displays back-to-back up to 160 kg. The plate is intended for installation on flat ceilings and features an adjustable turning function that allows fine positioning of the attached display.

Advantages

The PUC 1065 offers robust construction for secure support of heavy displays and an integrated swivel capability to precisely orient the screen after installation. Its modular design allows combination with Connect-it poles, interface bars and display strips for flexible ceiling configurations. The product is compatible with multiple Connect-it components to create complete and stable ceiling mounting systems.

Suitable for

• Ceiling mounting of medium to large flat displays (single up to 80 kg)
• Back-to-back display installations (combined up to 160 kg)
• Commercial spaces such as meeting rooms, retail and public areas
• Home or office setups where a ceiling-mounted screen is required

Key specifications

• Model: PUC 1065 (Vogel's 73202027)
• EAN: 8712285324123
• Compatibility: Connect-it system components (poles PUC 2508/2515/2530; interface bars PFB 3402/3405/3407/3409/3411; display strips PFS 3302/3304/3306/3308/3311)
• Maximum load: single display up to 80 kg; back-to-back up to 160 kg
• Suitable ceiling type: flat ceilings

How to use

Mount the PUC 1065 ceiling plate to a suitable flat ceiling following the structural requirements of the installation location. Combine the plate with a compatible Connect-it pole (PUC 2508/2515/2530) and attach a Connect-it interface bar and display strips that match your screen. Secure all fasteners according to the torque and mounting instructions provided by Vogel's, then adjust the turning mechanism to set the desired screen orientation.

Recommendations

Verify ceiling load capacity and follow local building regulations. For safety and warranty compliance, use only compatible Connect-it components and consult a professional installer for heavy or complex installations.
