Vogel's RISE A152 čierna

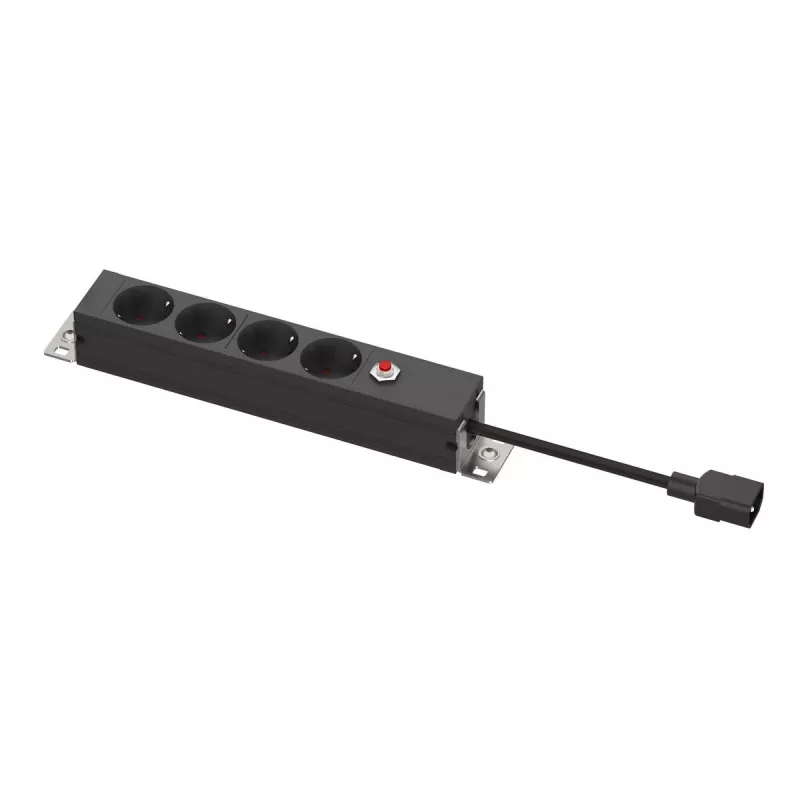

The Vogel's RISE A152 Black socket block provides four 240V EU power sockets designed to integrate with Vogel's RISE motorized display lifts. Finished in black and supplied with installation brackets, this accessory lets you connect and conceal multiple peripheral devices behind the screen and connect the block to the RISE control box via a C14 connector for a single-cable connection to mains power. The unit is CE‑compliant.

Advantages

The RISE A152 offers space-saving cable management by concentrating up to four power connections in a single block that mounts directly to the lift’s interface plate. Multiple bracket mounting options allow attachment at the top, bottom or at an angle for flexible installation. The integrated C14 connector enables direct connection to the control box Y-cable so only one cable runs between the lift and the mains supply, simplifying setup and reducing visible cabling.

Suitable for

• Connecting and hiding display peripherals such as media players, soundbars and small AV devices behind a motorized display lift
• Installations that require neat cable routing and a single-cable power feed between the lift and mains
• Use with Vogel’s RISE motorized display lifts in office, classroom or meeting-room environments

Key specifications

• Number of power sockets: 4
• Voltage compatibility: 240V (EU plugs)
• Connector type: C14 input for connection to control-box Y-cable
• Colour: Black
• Mounting: Supplied installation brackets with top, bottom or angled attachment options
• Compliance: CE certified

How to use

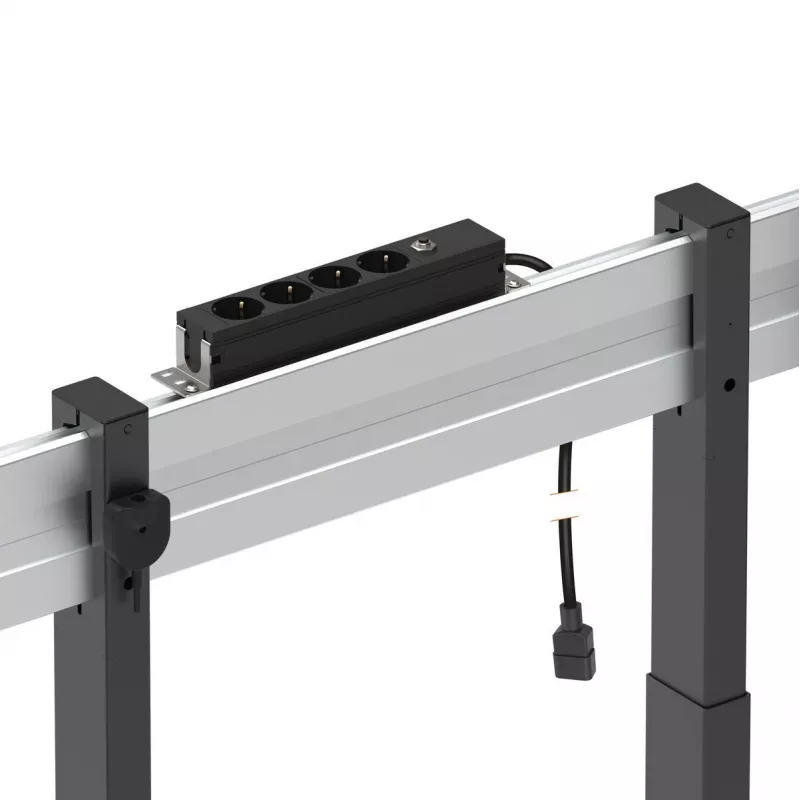

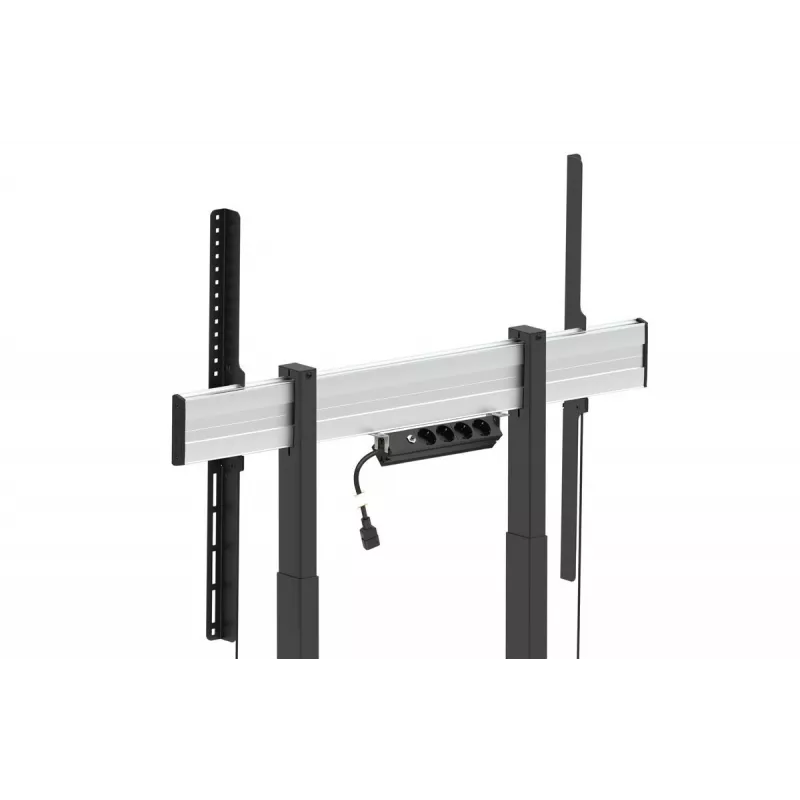

Attach the supplied installation brackets to the socket block and mount it to the RISE display lift interface plate (PFB bar) in the chosen orientation — top, bottom or angled — according to the layout behind the screen. Connect the socket block’s C14 connector to the Y-cable on the RISE control box, then route the single cable from the control box to the mains power outlet. Plug peripheral devices into the four sockets and arrange cables so they are concealed behind the display.

Recommendations

Ensure the total power draw of connected peripherals does not exceed the limits of the installation circuit. Follow local electrical regulations during installation and have a qualified technician perform any hardwiring or mains connections. Use the bracket options to position the socket block for optimal cable routing and ventilation.
