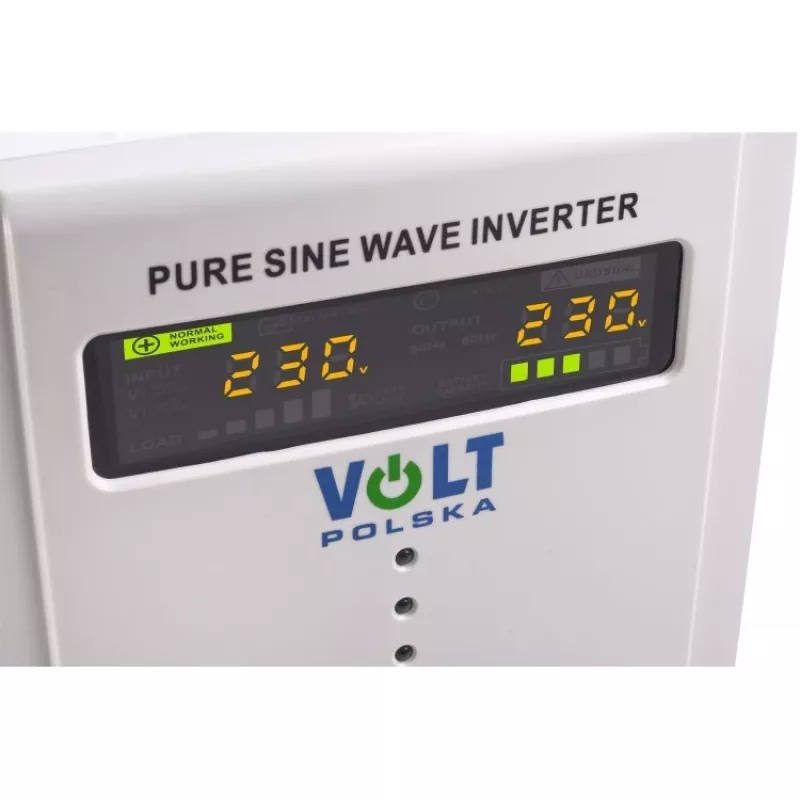

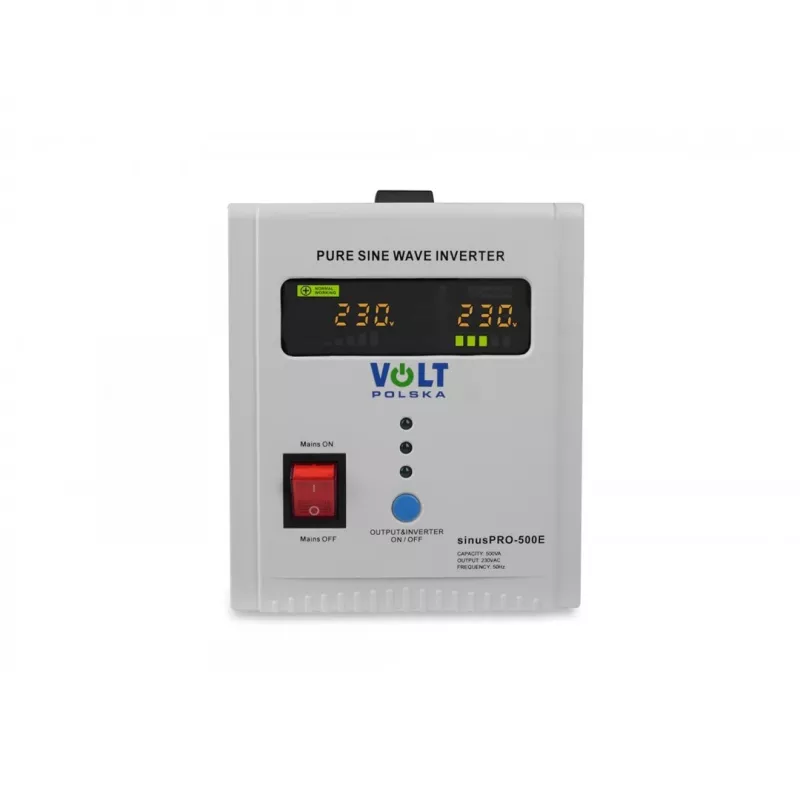

Volt Polska SINUSPRO-500E 12/230 V menič s čistou sínusoidou, 350 W trvalý / 500 W špičkový

The Volt Polska SINUSPRO-500E is a pure sine wave inverter with a continuous power of 350 W and a peak power of 500 W. It operates from a 12 V DC input and provides a 230 V AC, 50 Hz output, and includes a rectifier and UPS function.

Key features

• Pure sine wave output
• Continuous power up to 350 W
• Peak power 500 W
• Input voltage: 12 V DC
• Output voltage: 230 V AC, 50 Hz
• Equipped with rectifier and UPS
• Efficiency: >92%
• Charging current: 5 A / 10 A (switchable)
• Charging voltage: 13.8 V ±0.5 V
• AVR mains voltage regulator: 140–275 V AC
• Overload protection: automatic shutdown at 120% load
• Short circuit protection: automatic shutdown
• Under-voltage protection
• Operating temperature: 0–40 °C
• Dimensions: 230 x 145 x 180 mm
• Weight: 5.1 kg

Specifications

• Brand: Volt
• MPN: 3SP050012E
• Model: SINUSPRO-500E
• Power: 350 W / 500 W
• Input voltage range (battery): 11–15 V DC
• Input voltage range (mains): 140–275 V AC
• No-load current: 1.2 A
• Output voltage: 230 V, 50 Hz
• Efficiency: >92%
• Charging current: 5 A / 10 A (switchable)
• Charging voltage: 13.8 V ±0.5 V
• AVR mains voltage regulator: 140–275 V AC
• Overload protection: automatic shutdown at 120% load
• Short circuit protection: automatic shutdown
• Under-voltage protection
• Operating temperature: 0–40 °C
• Dimensions: 230 x 145 x 180 mm
• Weight: 5.1 kg
