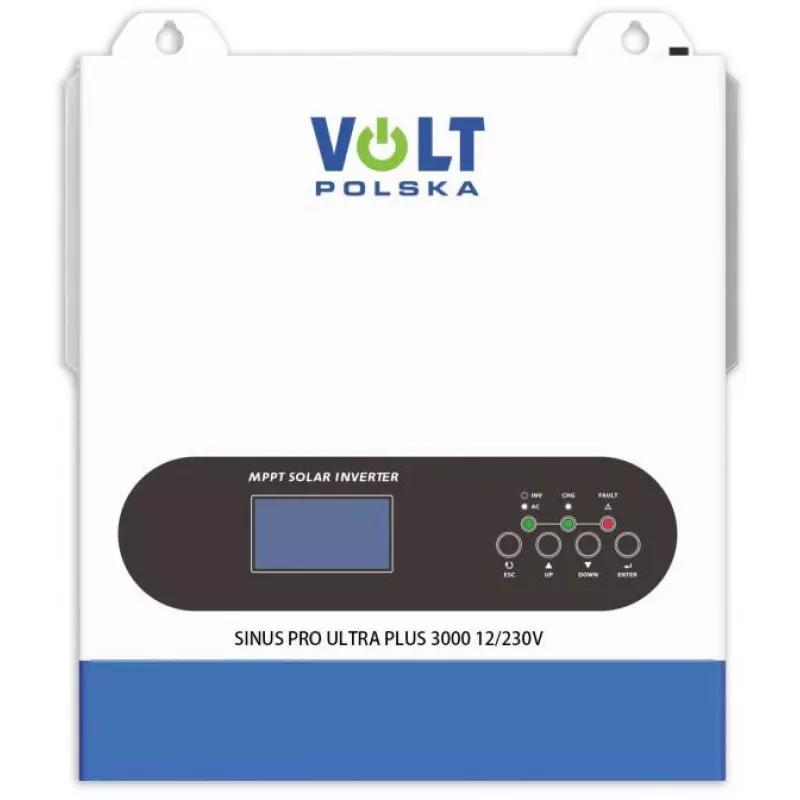

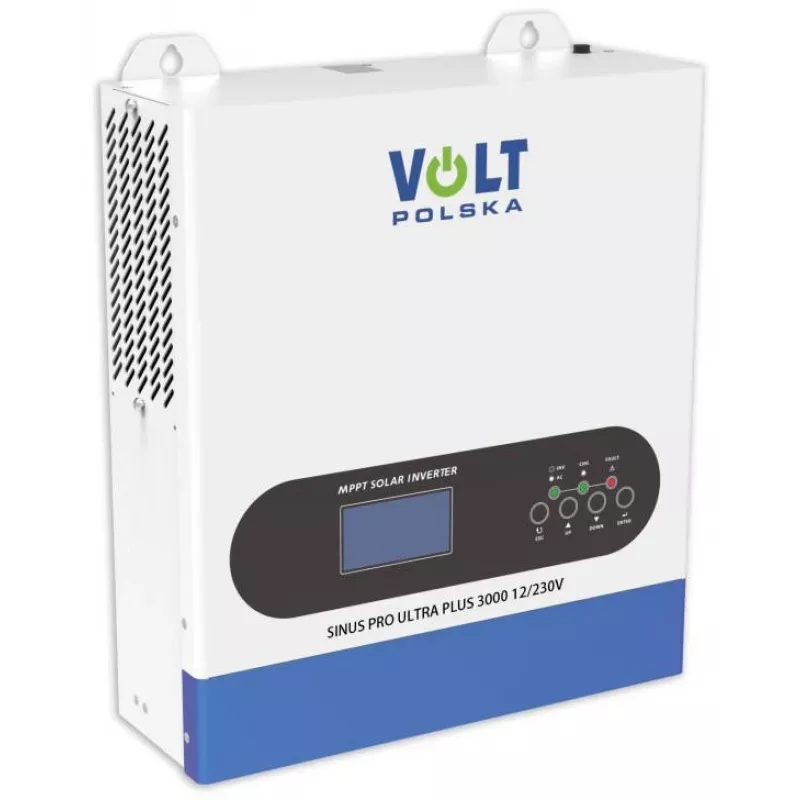

Volt Polska SinusPro ULTRA PLUS 3000 12/230V (1500/3000W) + 100A MPPT hybridný menič s čistým sínusom

The Volt Polska SinusPro ULTRA PLUS 3000 is a high-performance pure sine wave hybrid inverter designed for off-grid and backup power systems. With a continuous output of 1500W and peak power of 3000W, it efficiently converts 12V DC to 230V AC while integrating a 100A MPPT solar charge controller for maximum energy harvest from photovoltaic panels.

Advantages

This inverter combines reliable power conversion with intelligent solar charging, offering seamless UPS functionality with <10 ms transfer time. Its adjustable AC charger (up to 20A) and total charge current of 120A ensure fast battery charging from both solar and grid sources. The LCD display provides real-time monitoring, and multiple communication ports (USB, RS232) enable system integration.

Suitable for

• Off-grid solar power systems
• Backup power for homes, offices, and workshops
• Mobile applications (RVs, boats) requiring pure sine wave output
• Remote monitoring stations and telecommunications equipment

Key specifications

• Inverter Type: Pure Sine Wave Hybrid
• Continuous Power: 1500W
• Peak Power: 3000W (20ms)
• DC Input: 12V
• AC Output: 230V / 50Hz
• MPPT Charge Current: 100A
• Max PV Input Voltage: 150V DC
• Max PV Input Power: 1500W
• AC Charger Current: 20A (Adjustable)
• Max Total Charge Current: 120A
• Efficiency: >90%
• Transfer Time: <10 ms
• Protections: Overload, Short Circuit, Over Temperature, Over/Under Voltage, Reverse Polarity
• Display: LCD
• Communication: USB, RS232
• Battery Types: AGM, Gel, Flooded, Lithium-ion (User Configurable)
• Operating Modes: Off-Grid, Hybrid (Solar Priority, AC Priority, Battery Priority)

Recommendations

For optimal performance, use with a 12V battery bank of sufficient capacity (recommended >200Ah) and ensure PV array voltage does not exceed 150V. Configure battery type and charge parameters via the LCD menu for compatibility with your specific batteries.
