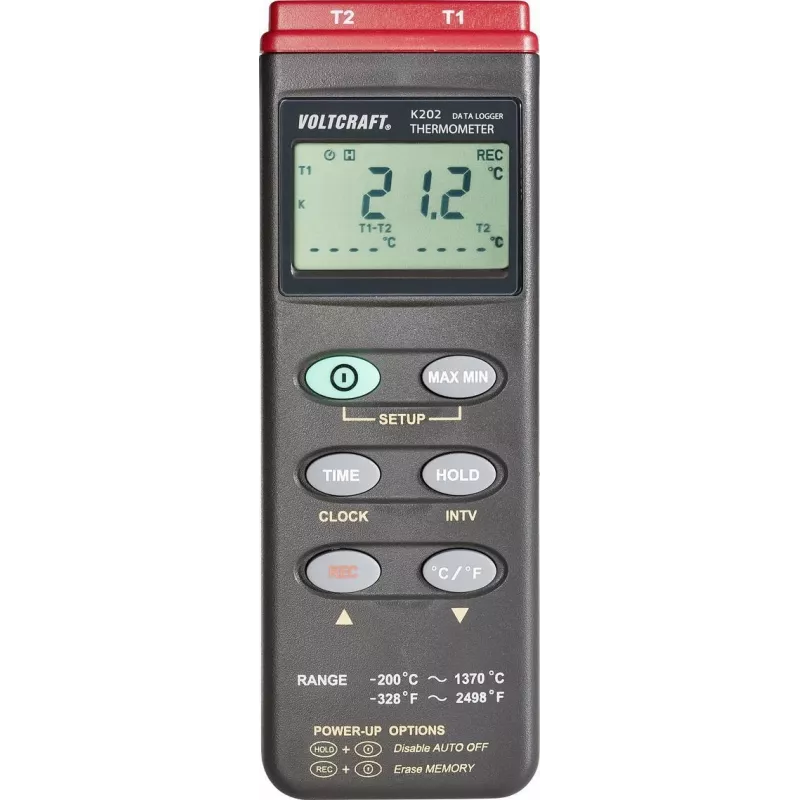

Voltcraft K202 Datalogger teplomer, teplomer (306)

The Voltcraft K202 stands out by combining dual-channel K-type thermocouple measurement with a built-in datalogger capable of storing up to 16,000 readings, making it a practical tool for long-term temperature monitoring without a PC connection.

Highlights

• Two K-type thermocouple inputs for simultaneous T1, T2, and differential (T1-T2) measurements
• Wide measurement range from -200 °C to +1372 °C with 0.1 °C resolution below 1000 °C
• Adjustable logging interval from 1 second to 24 hours
• USB interface and included PC analysis software for data transfer and evaluation
• MIN/MAX/AVG, HOLD, and high/low temperature alarm functions
• Backlit LCD display and portable operation via 9V battery or optional DC adapter

In daily use

Connect the two supplied K-type wire probes, select the logging interval, and the K202 records temperature data autonomously. The differential mode allows quick comparison between two points, while the alarm function alerts when thresholds are exceeded. Data can be transferred to a computer via USB for detailed analysis.

Full specifications

• Measurement range (K-type): -200 to +1372 °C
• Accuracy: ±(0.1% + 0.7 °C) for -100 to 1372 °C; ±(0.2% + 1 °C) for -200 to -100 °C
• Resolution: 0.1 °C (<1000 °C), 1 °C (≥1000 °C)
• Input channels: 2 (T1, T2)
• Datalogging capacity: 16,000 data points
• Logging interval: 1 second to 24 hours (adjustable)
• PC interface: USB
• Display: LCD with backlight
• Power supply: 9V block battery or 9V DC adapter (optional)
• Battery life: approx. 100 hours (without backlight)
• Functions: MIN/MAX/AVG, HOLD, T1-T2 differential
• Alarm: High/Low temperature alarm
• Included probes: 2x K-type wire thermocouples (-50 to +250 °C)
• Included accessories: USB cable, 9V battery, carrying case

Final note

A reliable dual-channel datalogger for professional temperature monitoring, with the flexibility of battery or mains operation.
