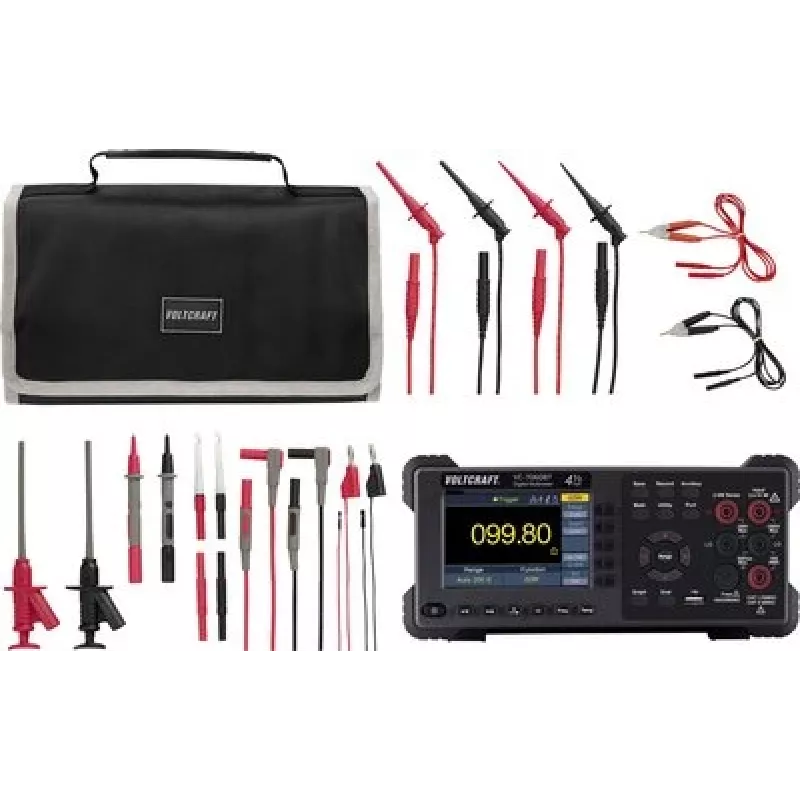

VOLTCRAFT VC-11015335+VC-18652750+VC-11732520 True RMS digitálny multimeter s dátovým loggerom, OLED, CAT III 1000V/CAT IV 600V

Electrical troubleshooting and diagnostics demand precision, reliability, and safety. The VOLTCRAFT VC-11015335+VC-18652750+VC-11732520 True RMS Digital Multimeter combines a high-resolution OLED display, extensive measurement capabilities, and data logging to tackle complex tasks in industrial, laboratory, and field environments. With CAT III 1000V and CAT IV 600V safety ratings, it ensures protection when working on high-energy circuits.

Who is it for

This multimeter is built for professional electricians, maintenance technicians, and electronics engineers who need accurate readings on non-linear loads, long-term data capture, and a rugged tool that meets stringent safety standards. It is equally suitable for advanced hobbyists working on demanding projects.

Main features

• True RMS measurement for precise AC voltage and current on distorted waveforms
• Bright OLED display with 60,000 counts for clear readings in any lighting
• Data logger stores up to 20,000 measured values for trend analysis
• USB interface for data transfer to a PC
• Wide measurement ranges: DC/AC voltage up to 1000V, DC/AC current up to 10A, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 10MHz, temperature from -50°C to +1000°C (with K-type sensor)
• Auto-ranging, low-pass filter, Min/Max/Peak Hold, relative measurement, and duty cycle functions
• Diode and continuity tests with audible indication
• Powered by 4 AA batteries (not included)

Specifications

• Display: OLED, 60,000 counts
• True RMS: Yes
• Safety rating: CAT III 1000V, CAT IV 600V
• DC voltage range: 0.01 mV – 1000 V
• AC voltage range: 0.01 mV – 1000 V
• DC current range: 0.01 µA – 10 A
• AC current range: 0.01 µA – 10 A
• Resistance range: 0.01 Ω – 60 MΩ
• Capacitance range: 0.01 nF – 60 mF
• Frequency range: 0.01 Hz – 10 MHz
• Temperature range: -50 to +1000 °C (with K-type sensor)
• Data logger: Yes, 20,000 measured values
• Interface: USB
• Power supply: 4x AA batteries
• Special features: Auto-ranging, low-pass filter, Min/Max/Peak Hold, relative measurement, duty cycle
• Diode test: Yes
• Continuity test: Yes

Tips

For temperature measurements, use a K-type thermocouple (not included). To maximize battery life, disable the backlight when not needed and use the auto power-off function if available. Regularly check test leads for damage to maintain safety and accuracy.
