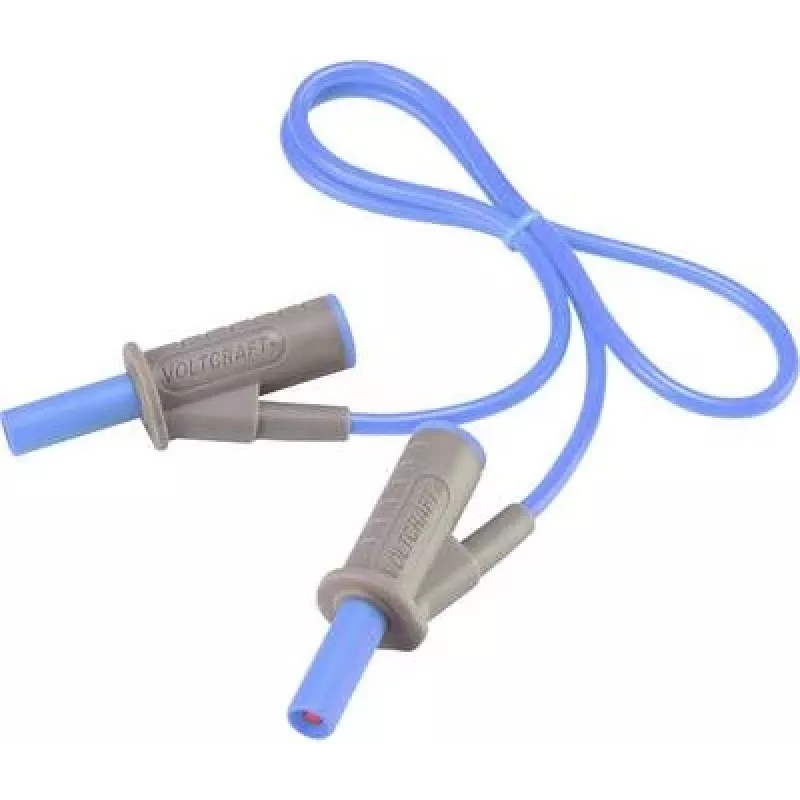

VOLTCRAFT Vysoko flexibilný bezpečnostný merací vodič [4 mm plochý konektor samec - 4 mm plochý konektor samec] 0,5 m modrý MSB-501 10 A (VC-8063410)

Engineered for demanding measurement tasks, the VOLTCRAFT MSB-501 stands out with its highly flexible PVC insulation and stackable 4 mm lamella plugs, ensuring secure connections even in tight spaces. Unlike standard test leads, it maintains full flexibility at low temperatures and handles up to 10 A, making it a reliable choice for professional electronics work.

Highlights

• Stackable 4 mm lamella plugs on both ends for versatile connections
• Highly flexible cable with 1 mm² cross-section for easy routing
• Safety rated CAT III 1000 V / CAT IV 600 V per EN 61010-031
• Nickel-plated brass contacts for low contact resistance and durability
• Blue insulation for quick identification in multi-lead setups

In daily use

This 0.5 m lead is ideal for bench testing, field service, and laboratory applications where flexibility and safety are paramount. The stackable design allows multiple leads to be connected to a single point, while the robust insulation resists abrasion and chemicals. Whether measuring voltage, current, or resistance, the MSB-501 delivers consistent performance across a wide temperature range from -15 °C to +70 °C.

Full specifications

• Product type: Safety test lead
• Connector A: 4 mm lamella plug, stackable
• Connector B: 4 mm lamella plug, stackable
• Cable length: 0.5 m
• Colour: Blue
• Maximum current: 10 A
• Maximum voltage: 1000 V CAT III / 600 V CAT IV
• Safety standard: EN 61010-031
• Insulation material: PVC, highly flexible
• Contact material: Nickel-plated brass
• Wire cross-section: 1 mm²
• Operating temperature: -15 °C to +70 °C

Final note

A dependable, flexible, and safe test lead that meets stringent safety standards, the VOLTCRAFT MSB-501 is an essential accessory for any multimeter or test setup requiring reliable connections.
