Vťahovacia tyč Cimco 140050 oceľ 30000 mm pomocník na vťahovanie káblov 3 cm

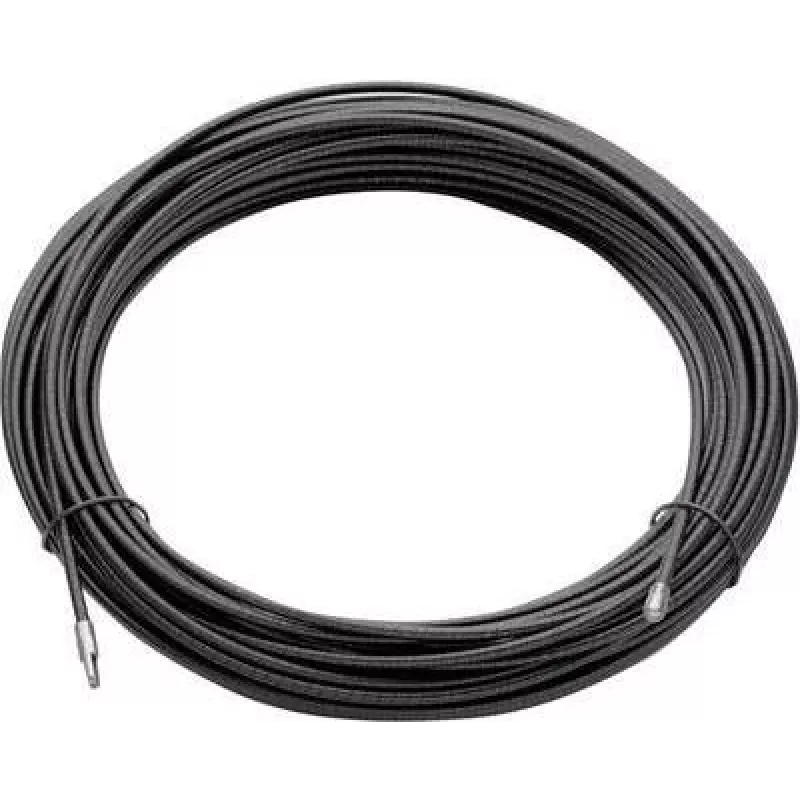

The Cimco 140050 steel push rod is a 30 000 mm long tool engineered for cable pulling and feeder tasks. Constructed from steel, it provides the rigidity needed to push or guide cables through conduits, ducts and walls. The rod is designed to accommodate cables with diameters up to 3 cm and to withstand the mechanical loads typical for installation and maintenance work in residential and light-commercial environments.

Advantages

The steel construction ensures high bending strength and long service life under repeated use. Its extended 30 000 mm length allows access through long conduit runs without the need for intermediate coupling in many installations. Designed for straightforward handling, the rod maintains a balance between stiffness and flexibility, enabling controlled guidance of cable bundles and single-core lines. Compatibility with typical cable pulling workflows reduces the need for auxiliary tools.

Suitable for

• Pushing and guiding electrical and data cables through conduit systems
• Running speaker, coaxial or Ethernet cables in residential and commercial buildings
• Feeder tasks when installing wiring in renovation or new-build projects
• Maintenance work where existing ducts must be re-cabled or inspected

Key specifications

• Material: steel for the rod body
• Overall length: 30 000 mm
• Maximum cable diameter supported: 3 cm
• Suitable for manual pushing and guided pulling applications
• Designed for use in conduit, duct and wall cavity installations

How to use

Insert the steel push rod into the conduit or duct and advance it by pushing from the accessible end until the rod exits at the target point. Attach the cable to the rod’s end using an appropriate connector or tape designed for cable pulling; ensure the connection is smooth and tapered to reduce catching. Pull or push the cable through the conduit while keeping the rod aligned to avoid excessive bending. If resistance is encountered, withdraw slightly and re-align before proceeding. For runs longer than the rod length, use coupling joints specifically made for push rods following the manufacturer’s guidance.

Recommendations

Wear appropriate personal protective equipment, avoid excessive force that could deform the rod, and inspect the rod for damage before each use. Use lubrication compatible with cables and conduits when necessary to minimize friction, and store the rod in a dry place to prevent corrosion.
