Vypínač 1P Bachmann 924.036 — čierny, 61×23×15 mm

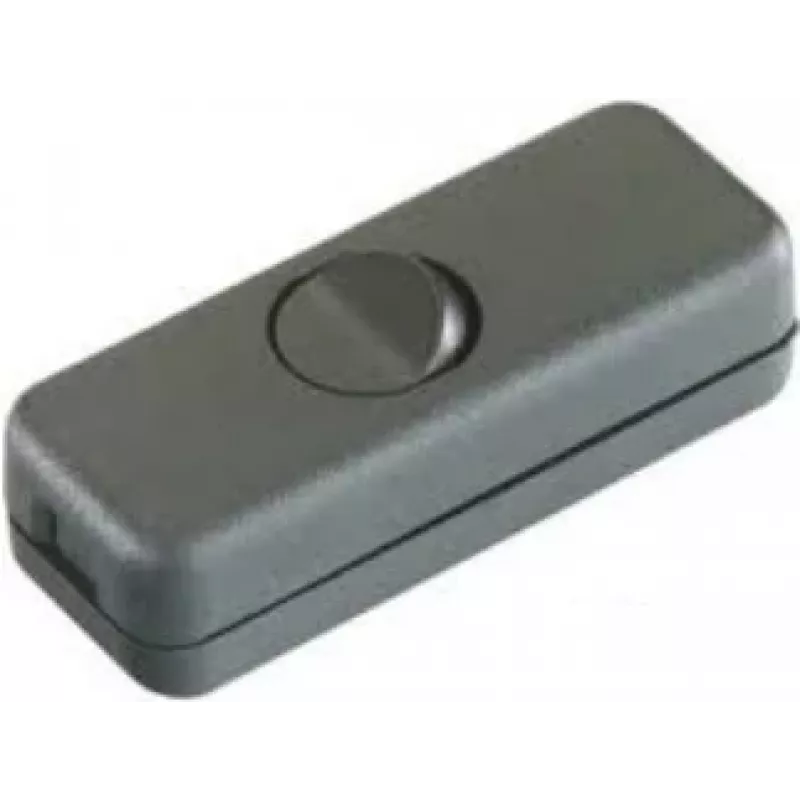

Bachmann 924.036 is a compact single-pole rocker switch in black, intended for simple manual on/off control. It is supplied with a screwed housing and strain relief, a connecting terminal for the neutral conductor, and screwed contacts. The switch accepts double-insulated flat cable 2 x 0.75 mm² and is sized for applications where a small inline or panel-mounted switch is required. Dimensions: 61 × 23 × 15 mm.

Advantages

The rocker switch offers a compact footprint and a straightforward mechanical on/off function with screwed contacts for secure electrical connection. Its screwed housing and integrated strain relief improve cable retention, while the connecting terminal for the neutral conductor simplifies wiring for typical single-pole installations.

Suitable for

• Inline cable assemblies requiring a manual on/off switch
• Panel or housing installations with limited space (61 × 23 × 15 mm)
• Connections using double-insulated flat cable 2 × 0.75 mm²

When it may not be suitable

This switch is a single-pole device and only interrupts one conductor; it is not suitable where double-pole switching or complete disconnection of both live and neutral is required for safety reasons. It is intended for low-voltage or appliance control scenarios and may not meet requirements for heavy-duty, high-current, or industrial switching without verifying current ratings for the specific application.

Key specifications

• Type: single-pole (1P) rocker switch
• Colour: black
• Dimensions (W × D × H): 61 × 23 × 15 mm
• Cable compatibility: double-insulated flat cable 2 × 0.75 mm²
• Contacts: screwed contacts
• Housing: screwed housing with strain relief
• Terminal: connecting terminal for neutral conductor

How to use

Install the switch either inline on a suitable flat cable or mount it into a panel or housing opening that accommodates its dimensions. Secure the housing with the provided screws and use the integrated strain relief to clamp the cable. Connect the live conductor to the switch input and the switched live to the output, and attach the neutral conductor to the provided neutral terminal. Ensure all screwed connections are tightened to provide reliable contact. Verify the electrical ratings match your application before powering the circuit.

What to consider before purchase

• Confirm that single-pole switching is sufficient for your safety and circuit requirements
• Verify the switch current and voltage ratings for your intended load (not specified in the source data)
• Ensure cable type and cross-section match: double-insulated flat cable 2 × 0.75 mm²
• Check installation space to accommodate 61 × 23 × 15 mm dimensions

Recommendations

Use this rocker switch for straightforward on/off control in lamps, small appliances, or extension leads where compact size and simple wiring with 2 × 0.75 mm² flat cable are needed. For mains or safety-critical installations, confirm that single-pole switching complies with local regulations and consider a double-pole switch if required.
