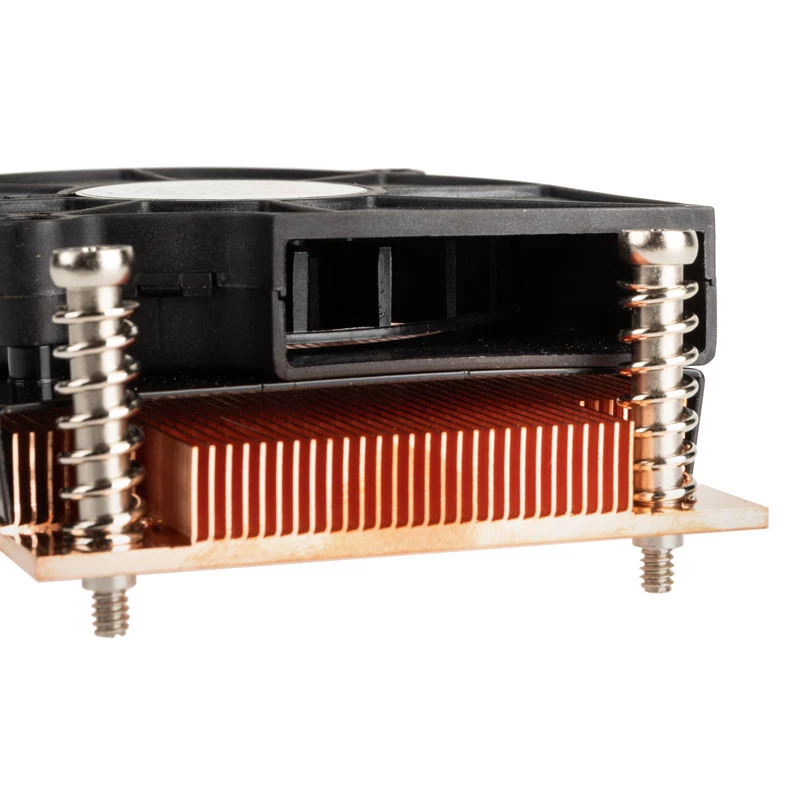

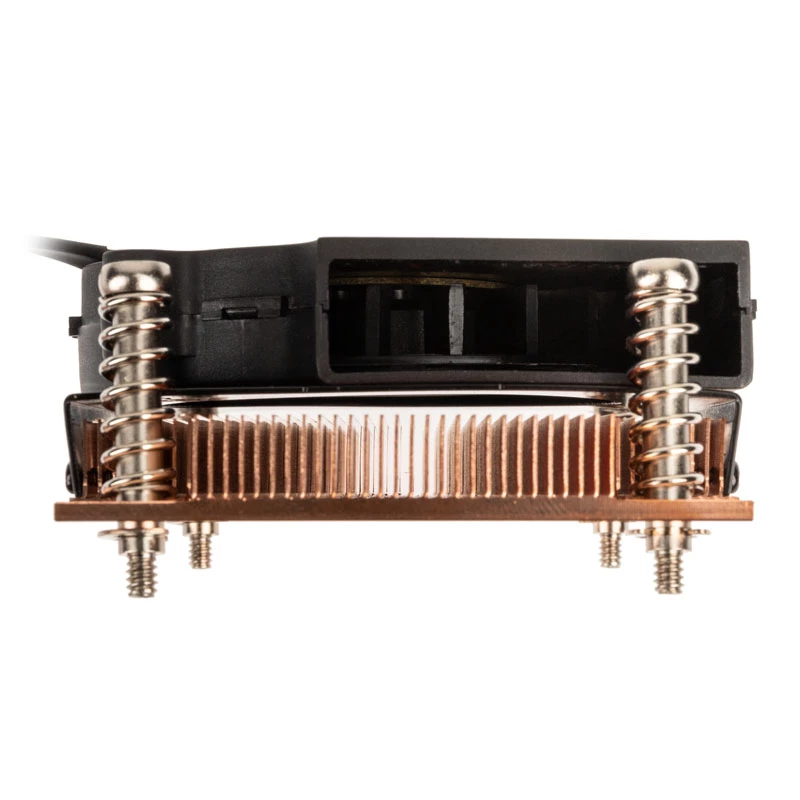

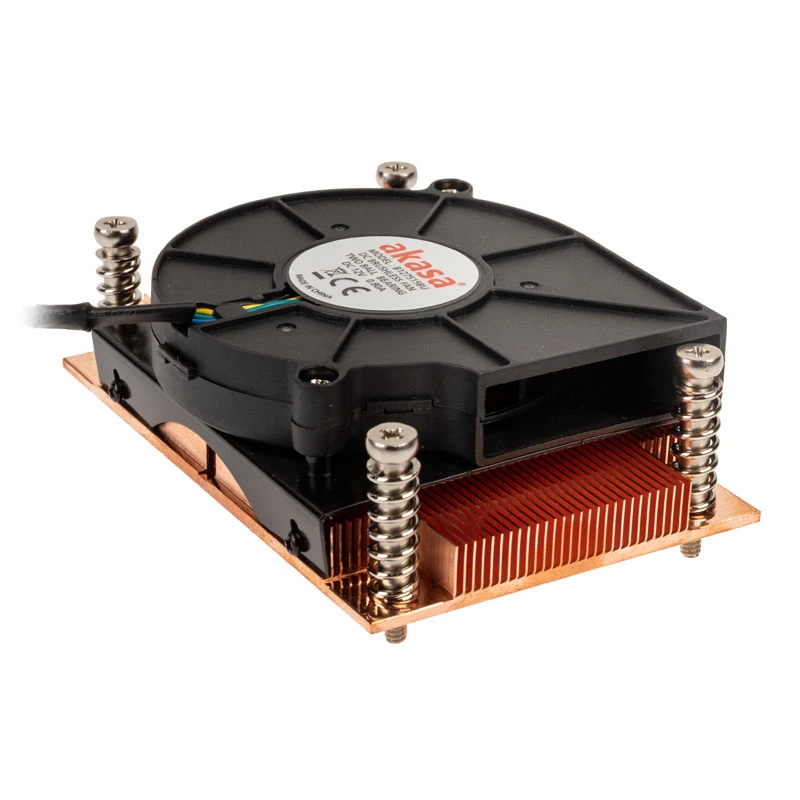

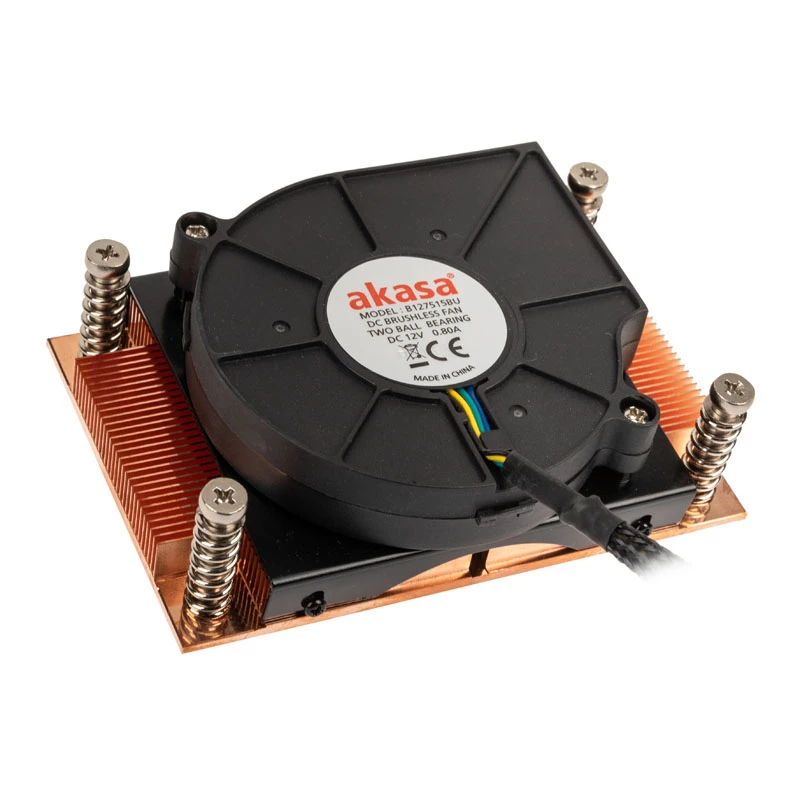

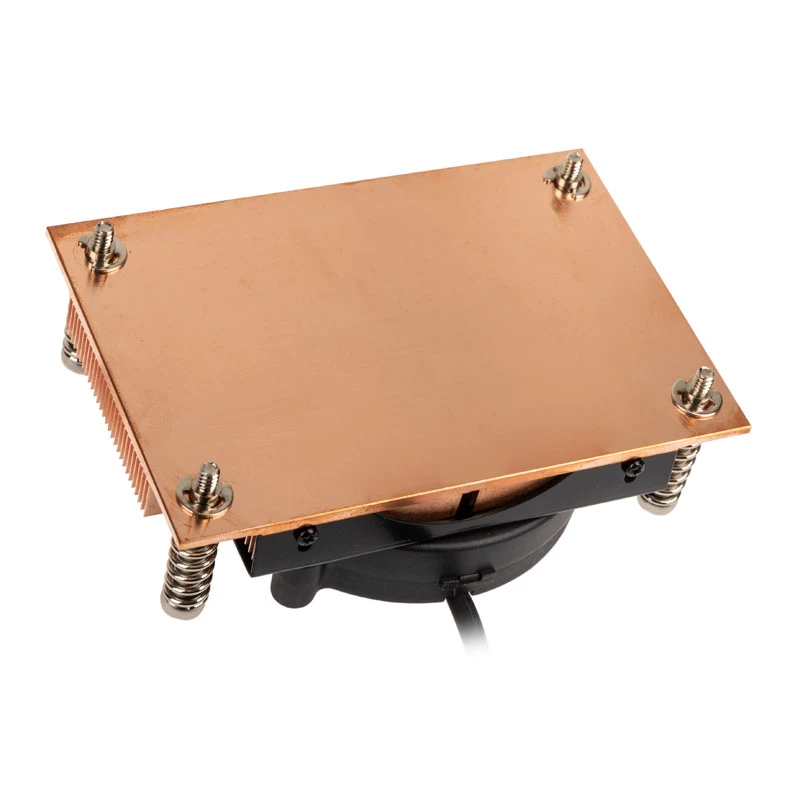

Vzduchový chladič CPU Akasa AK-CC1109BP01 s 77 mm ventilátorom, Dual Ball Bearing, socket AM4, čierny/meď

Akasa AK-CC1109BP01 is a low-profile air CPU cooler designed for compact systems and server setups. It features a side-blowing 77 mm fan and a copper heatsink, and is compatible with Socket AM4 processors up to Ryzen 9 at 75 W TDP. The cooler’s black and copper finish suits builds where space is limited and reliable, modest cooling is required.

Advantages

The side-blowing fan layout expels hot air directly out of the heatsink, making the cooler effective in constrained enclosures. A solid copper heatsink improves heat transfer from the CPU, while spring-loaded mounting screws provide a consistent, balanced connection with increased vibration tolerance. The dual ball bearing fan reduces friction for longer service life.

Suitable for

• Small form-factor desktops and HTPCs
• 1U or compact server configurations with limited clearance
• Systems using Socket AM4 processors with moderate thermal loads (up to 75 W TDP)
• Builds that prioritise low height and reliable, long-lived fans

When it may not be suitable

This cooler is not intended for high-end desktop systems or overclocked processors that exceed 75 W TDP, where larger tower coolers or liquid solutions provide significantly better thermal headroom. It may also be less effective in cases without directed airflow or in very dusty environments unless regular maintenance is performed.

Key specifications

• Type: Air cooler
• Fan diameter: 77 mm
• Fan bearing: Dual (twin) ball bearing
• Airflow: up to 11.83 cfm
• Air pressure: 20.66 mmH2O
• Supported socket: Socket AM4
• Compatible CPU thermal design power: up to 75 W TDP
• Heatsink material: Copper
• Colour: Black and copper
• Weight: 0.367 kg

How to use

Mount the cooler onto a Socket AM4 motherboard using the supplied spring-loaded screws to ensure even pressure on the CPU. Orient the side-blowing fan so it directs hot air toward the case exhaust or an open side vent. Connect the fan to the appropriate motherboard fan header and verify fan operation in BIOS or with system monitoring software. Periodically clean the fan and heatsink fins to maintain optimal cooling performance.

What to consider before purchase

• Available CPU cooler clearance in your case or server chassis (low-profile 1U-style height)
• Processor TDP—suitable for CPUs up to 75 W TDP
• Case airflow arrangement to ensure side-blown exhaust can escape the chassis
• Preference for dual ball bearing fans for longer lifespan

Recommendations

For best results in compact builds, pair the Akasa AK-CC1109BP01 with a case that provides directed exhaust airflow and perform regular dust cleaning. Use it with Socket AM4 CPUs that stay within the 75 W TDP range to ensure reliable temperatures and long fan life.
