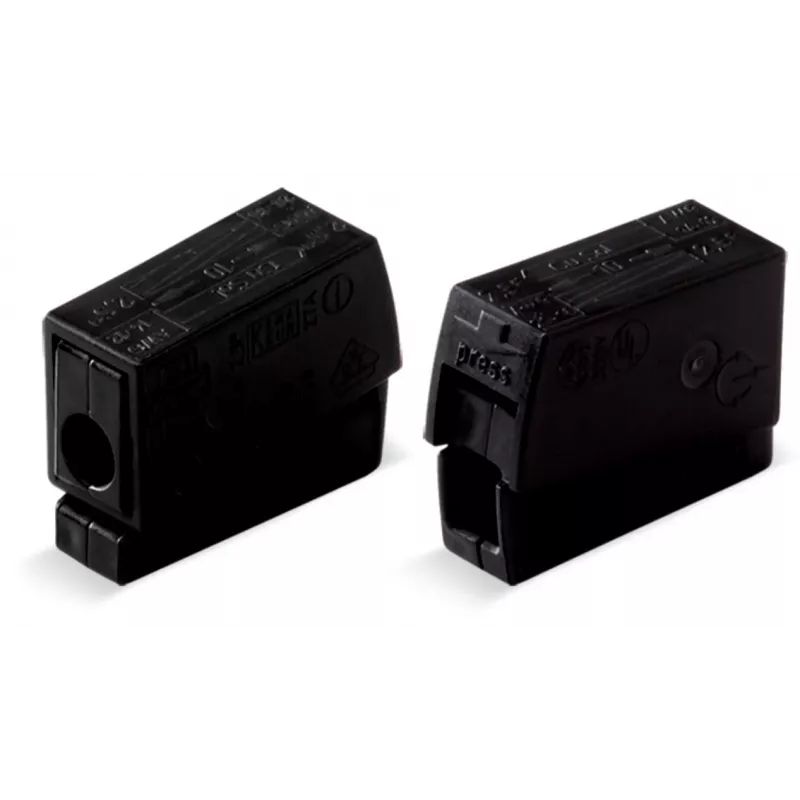

WAGO 224-104 osvetľovací konektor, čierny, 24 A, 400 V, 2-vodičový, CAGE CLAMP

The WAGO 224-104 is a compact 2-conductor lighting connector designed for fast and reliable wiring in luminaires and junction boxes. Featuring the proven CAGE CLAMP® connection technology, it ensures vibration-proof, maintenance-free connections for solid and stranded conductors. Rated for 24 A and 400 V, this black connector is ideal for through-wiring and side-entry applications in lighting systems.

Advantages

Tool-free operation with CAGE CLAMP® spring pressure connection technology saves installation time. Compact design allows for space-saving wiring in tight luminaire housings. Transparent housing enables visual inspection of conductor insertion. Suitable for solid, stranded, and fine-stranded conductors on the luminaire side.

Suitable for

• Through-wiring of lighting fixtures and luminaires
• Junction boxes and distribution boxes
• Industrial and commercial lighting installations
• Quick and secure conductor connections up to 2.5 mm²

Key specifications

• Rated Voltage: 400 V
• Rated Current: 24 A
• Number of Conductors: 2
• Connection Technology: CAGE CLAMP®
• Conductor Cross-Section: 0.5 - 2.5 mm² (20 - 14 AWG)
• Strip Length: 9 - 11 mm
• Color: Black
• Insulation Material: Polyamide (PA 6.6)
• Contact Material: Electrolytic Copper, tin-plated
• Operating Temperature: -35 to +105 °C
• Flammability Rating: UL94 V-2
• Pollution Degree: 2
• Wiring Type: Side-entry

Recommendations

For optimal performance, use with WAGO 224-series accessories and ensure proper strip length. Always observe local electrical codes and regulations.
