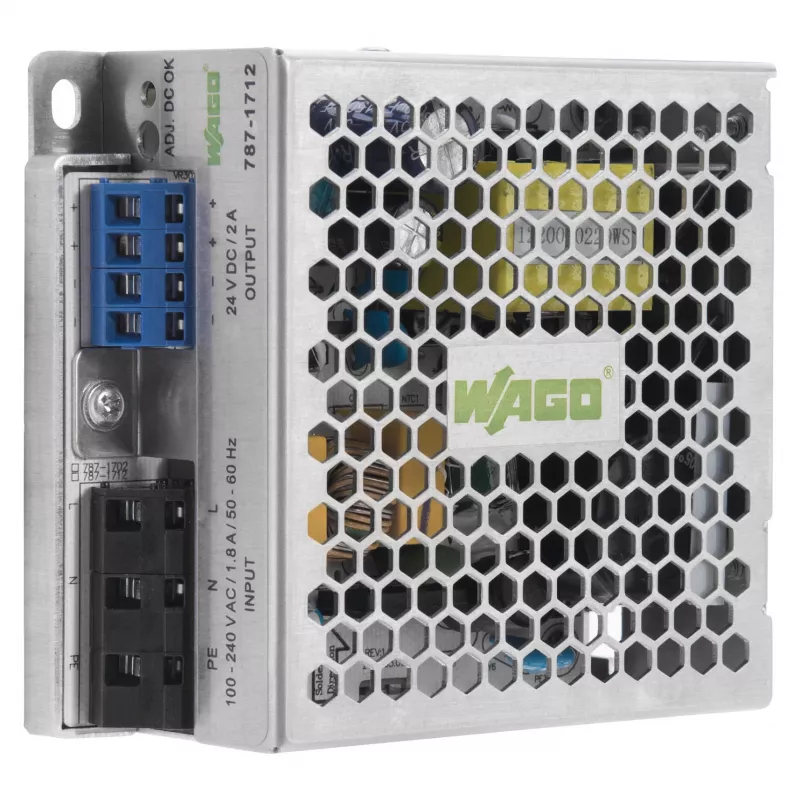

WAGO 787-1712 EPSITRON PRO napájací zdroj 24VDC 2,5A 60W DIN lišta

In a bustling packaging plant, a control cabinet orchestrates every movement—PLCs processing signals, sensors detecting positions, actuators driving mechanisms. The WAGO 787-1712 EPSITRON PRO Power Supply delivers the clean, stable 24 VDC these components demand, converting universal 100–240 VAC input into precise DC output. With 2.5 A current and 60 W power, it reliably feeds every 24 V load in the panel, from the main controller to the smallest sensor. Its compact DIN-rail footprint and high efficiency make it a favorite among machine builders and panel shops worldwide.

Key specifications

• Input voltage: 100–240 VAC, auto-ranging, 50/60 Hz
• Output voltage: 24 VDC (±1%)
• Output current: 2.5 A
• Output power: 60 W
• Efficiency: >90%
• Protection: overload, short-circuit, overvoltage
• Connection: Push-in CAGE CLAMP®
• Mounting: DIN-rail (TS35)
• Protection class: IP20
• Operating temperature: -25 °C to +70 °C
• Approvals: UL, cUL, GL, CE

Why choose it

The EPSITRON PRO series is engineered for high reliability in industrial settings. Active power factor correction and low inrush current reduce stress on upstream components, while convection cooling ensures silent operation. Push-in connection technology speeds up wiring and reduces installation errors. With a wide temperature range and robust approvals, this power supply is suitable for global applications.

Ideal use cases

• Powering PLCs and I/O systems in control cabinets
• Supplying sensors, relays, and small actuators
• Building automation and HVAC control panels
• Machine building and packaging equipment

Good to know

This unit features a compact design for space-saving installation, and its high efficiency reduces energy consumption and heat generation. The Push-in CAGE CLAMP® terminals allow tool-free wiring for solid or ferruled conductors, saving time during assembly. With a wide operating temperature range and international approvals, it's ready for demanding environments worldwide.
