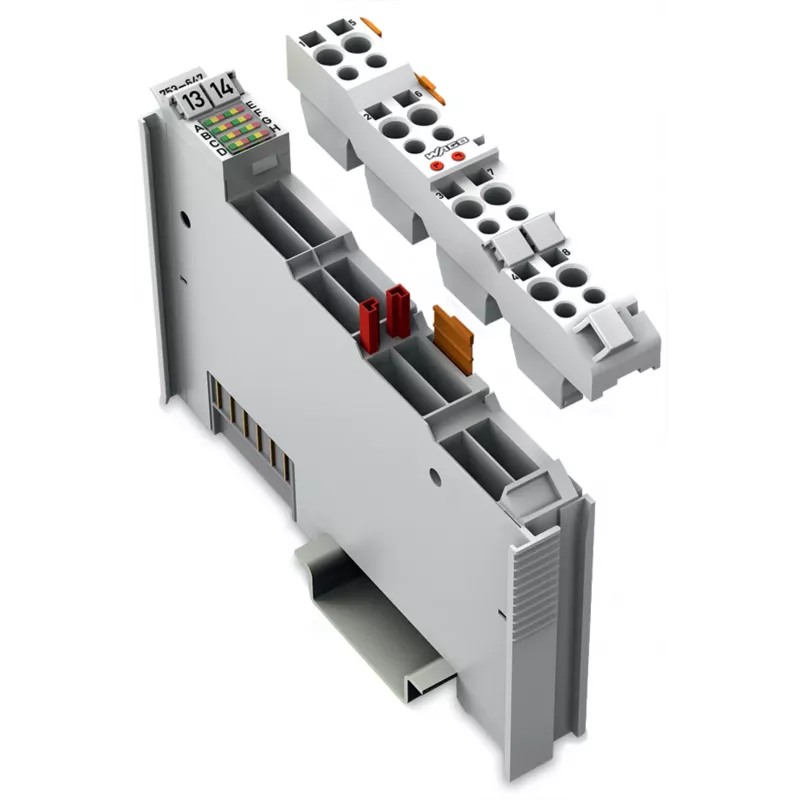

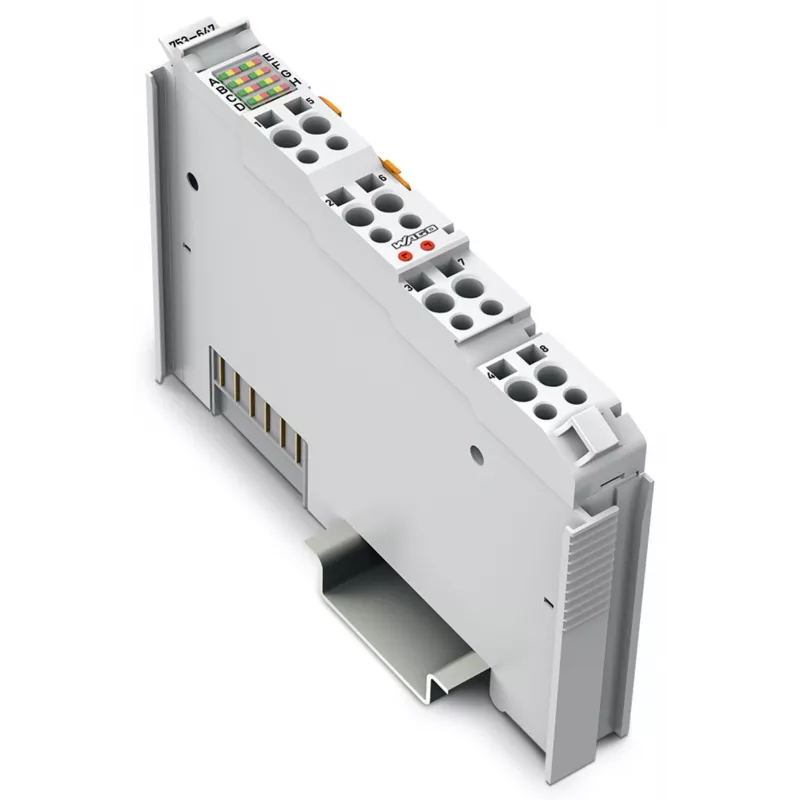

WAGO DALI Multi-Master Modul 753-647

The WAGO DALI Multi-Master Module 753-647 is a compact DIN-rail mountable interface module designed for the WAGO I/O System 750. It enables seamless integration of DALI lighting control into building automation systems, supporting up to 64 DALI devices per line with an integrated DALI power supply. Compliant with IEC 62386, this module offers reliable communication and configuration via WAGO-I/O-PRO or e!COCKPIT.

Advantages

Integrated DALI power supply simplifies installation and reduces external components. Supports up to 16 groups and 16 scenes for flexible lighting control. Screwless CAGE CLAMP® terminals ensure fast and secure wiring. Compact design saves space on the DIN rail.

Suitable for

• Building automation systems requiring DALI lighting control
• Commercial and industrial lighting installations
• Integration with WAGO I/O System 750 controllers

Key specifications

• Module Type: DALI Multi-Master Module
• Number of DALI Lines: 1
• Max. DALI Devices per Line: 64
• Max. DALI Groups per Line: 16
• Max. DALI Scenes per Line: 16
• Integrated DALI Power Supply: Yes
• DALI Supply Voltage: 16 VDC
• Max. DALI Output Current: 200 mA
• System Supply Voltage: 24 VDC (via WAGO I/O System)
• Internal Current Consumption (typ.): 100 mA
• Isolation: System/Field
• Mounting Type: DIN-rail mountable
• Operating Temperature: 0 ... +55 °C
• Storage Temperature: -25 ... +85 °C
• Communication Interface: Internal bus
• DALI Standard Compliance: IEC 62386
• Configuration: Via WAGO-I/O-PRO, e!COCKPIT
• Protection Class: IP20
• Housing Material: Polycarbonate
• Connection Type: Screwless terminals (DALI), CAGE CLAMP® (internal)

Recommendations

For optimal performance, use with WAGO I/O System 750 controllers and ensure proper DALI bus termination. Refer to the product manual for detailed installation and configuration instructions.
