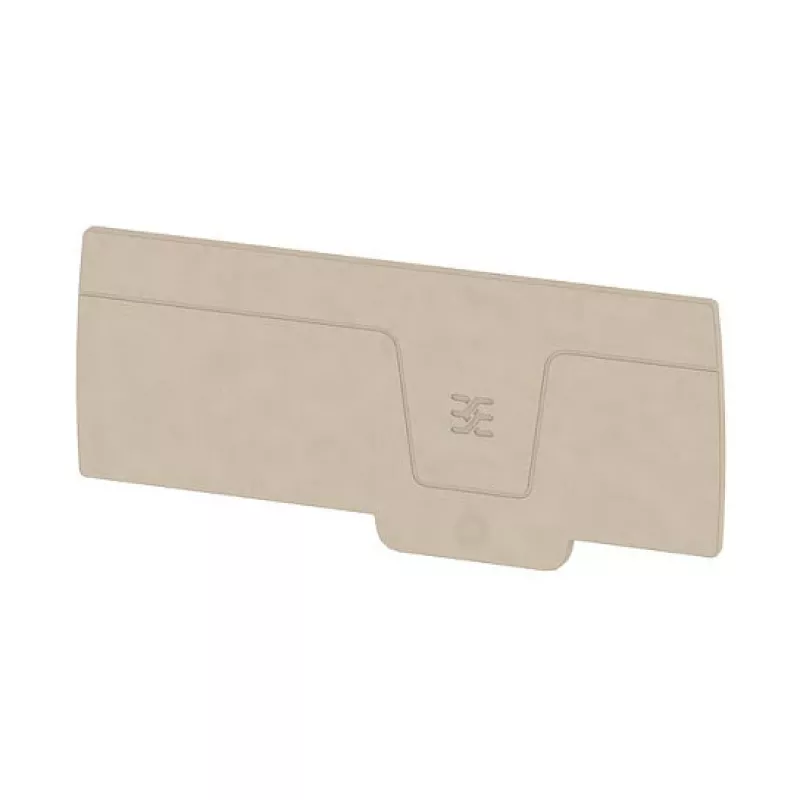

Weidmüller AEP 3C 10/16 koncová doska pre A-sériu, tmavobéžová

The Weidmüller AEP 3C 10/16 is a high-quality end plate (partition plate) designed for use with Weidmüller A-Series terminal blocks. This accessory provides essential insulation and mechanical protection for terminal block assemblies, ensuring safe and reliable operation in industrial control panels and electrical installations.

Advantages

• Excellent electrical insulation properties
• Snap-on mounting for quick and easy installation
• Wide operating temperature range from -50 °C to +120 °C
• UL94 V-0 flammability rating for enhanced safety
• RoHS compliant, environmentally friendly

Suitable for

• Weidmüller A-Series terminal blocks
• Industrial control cabinets
• Electrical distribution systems
• Automation and process control applications

Key specifications

• Accessory Type: End Plate / Partition Plate
• Compatibility: Weidmüller A-Series
• Colour: Dark Beige
• Material: Wemid (Proprietary Polyamide)
• Mounting: Snap-on / Clip-on
• Height: 60 mm
• Width (Thickness): 1.5 mm
• Depth: 40 mm
• Operating Temperature: -50 °C to +120 °C
• Flammability Rating: UL94 V-0
• Pollution Degree: 3
• Overvoltage Category: III
• Number of Levels: Single

Recommendations

For optimal performance and safety, always use genuine Weidmüller accessories with compatible terminal blocks. This end plate ensures proper spacing and insulation between adjacent terminal blocks, reducing the risk of short circuits and improving overall system reliability.
