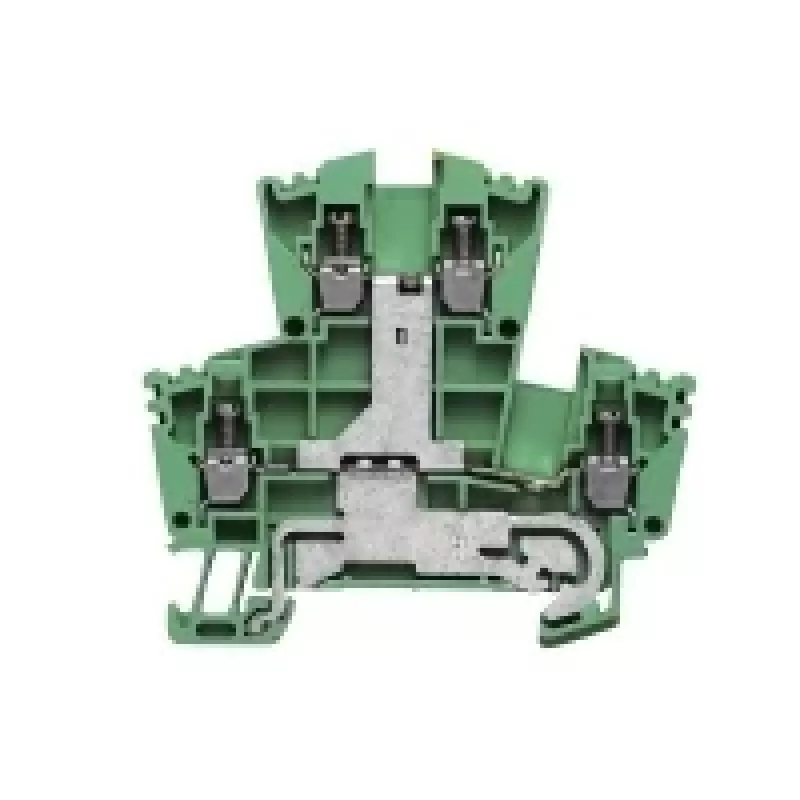

Weidmüller priechodná radová svorka, skrutková prípojka, 2,5 mm², 24 A, 800 V, zelená, 100 ks

The Weidmüller 1036300000 is a high-quality feed-through terminal block designed for reliable electrical connections in industrial applications. With a rated cross-section of 2.5 mm² and a rated current of 24 A (IEC), this terminal block ensures safe and efficient power distribution. The screw connection technology provides secure and durable wiring, suitable for solid and flexible conductors up to 4 mm² and 2.5 mm² respectively.

Advantages

This terminal block offers easy installation on DIN Rail TS 35, saving space and simplifying maintenance. The green color coding aids in quick identification, while the Wemid insulation material ensures excellent thermal and electrical performance over a wide temperature range from -50 to 120 °C. The included test point and cross-connection capability enhance flexibility for testing and daisy-chaining.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution units
• Machine wiring

Key specifications

• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Number of Connections: 2
• Number of Potentials: 1
• Number of Levels: 1
• Rated Cross-Section: 2.5 mm²
• Rated Current (IEC): 24 A
• Rated Voltage (IEC): 800 V
• Conductor Size (Solid): 0.5 - 4 mm²
• Conductor Size (Flexible): 0.5 - 2.5 mm²
• Conductor Size (AWG): 20 - 12 AWG
• Mounting Type: DIN Rail TS 35
• Color: Green
• Insulation Material: Wemid
• Operating Temperature: -50 to 120 °C
• Stripping Length: 10 mm
• Tightening Torque: 0.4 - 0.8 Nm
• Pack Quantity: 100 pieces
• Cross-Connection Capability: Yes
• Test Point Availability: Yes

Recommendations

For optimal performance, use with appropriate cross-connectors and marking accessories. Ensure proper tightening torque to maintain reliable connections. This terminal block is ideal for new installations or retrofitting existing systems.
