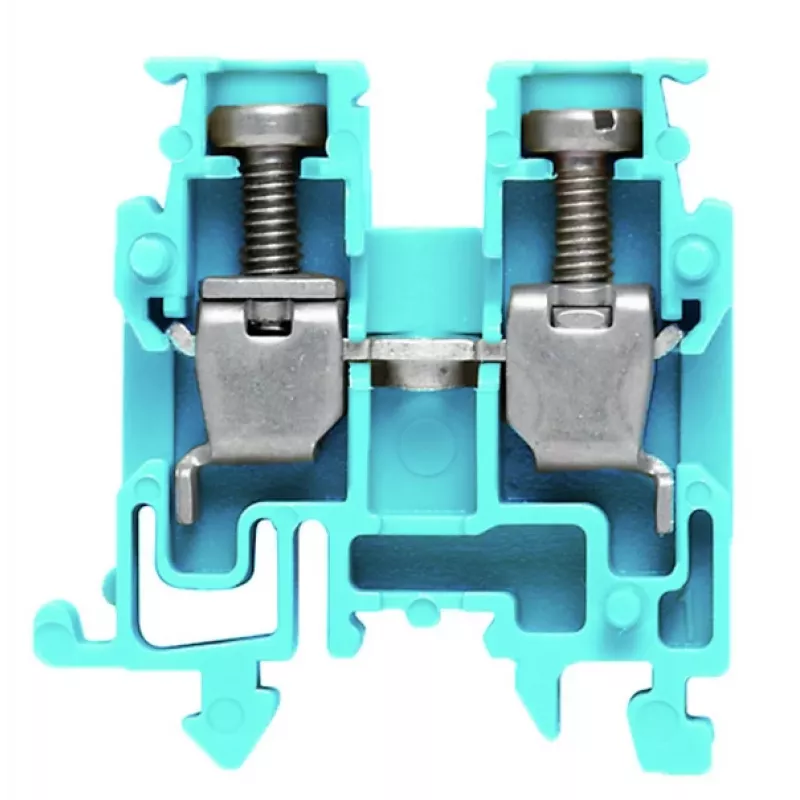

Weidmüller priechodná svorka AKZ 2.5 BL, modrá, skrutková prípojka, 2,5 mm², 800 V, 24 A

The Weidmüller AKZ 2.5 BL is a high-quality feed-through terminal block designed for reliable and secure electrical connections in industrial applications. With a rated cross-section of 2.5 mm² and a rated voltage of 800 V, it is suitable for a wide range of wiring tasks. The terminal block features a screw connection technology, ensuring a stable and durable connection for both rigid and flexible conductors.

Advantages

This terminal block offers easy installation on DIN rail TS 35, saving time and space in control cabinets. The blue color coding helps in identifying neutral or specific circuits. The insulating material Wemid (PA 66) provides excellent mechanical strength and thermal stability, with a flammability rating of V-0 according to UL 94, ensuring high safety standards.

Suitable for

• Industrial control panels and switchgear
• Building automation systems
• Power distribution and signal wiring
• Applications requiring reliable screw connections

Key specifications

• Connection Technology: Screw Connection
• Rated Cross-Section (IEC): 2.5 mm²
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 24 A
• Number of Connections: 2
• Number of Potentials: 1
• Mounting Type: DIN Rail TS 35
• Color: Blue
• Insulating Material: Wemid (PA 66)
• Flammability Rating (UL 94): V-0
• Operating Temperature Range: -50 °C to +120 °C
• Pollution Degree: 3
• Stripping Length: 8 mm
• Flexible Conductor Cross-Section: 0.5 - 2.5 mm²
• Rigid Conductor Cross-Section: 0.5 - 4 mm²
• Tightening Torque: 0.4 - 0.8 Nm

Recommendations

For optimal performance, use with appropriate ferrules for flexible conductors and ensure proper tightening torque. Always follow local electrical codes and regulations.
