Weidmüller priechodná svorka, skrutková prípojka, 2,5 mm², 500 V, 24 A, béžová, 50 ks

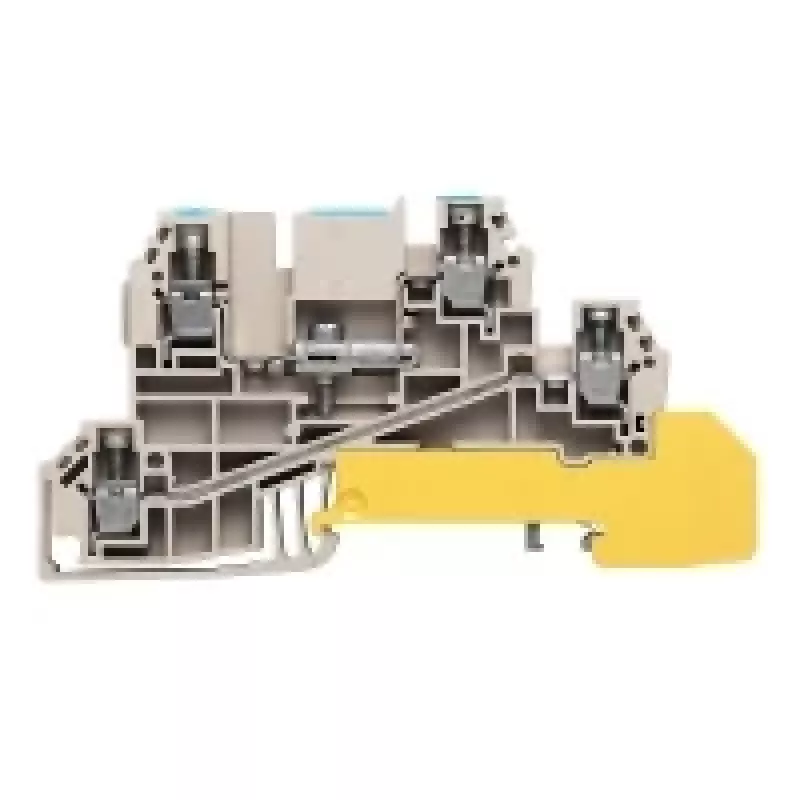

The Weidmüller 1029800000 is a high-quality feed-through terminal block designed for reliable and secure electrical connections. With a rated cross-section of 2.5 mm² and a rated current of 24 A, it is ideal for industrial control cabinets and distribution systems. The terminal block features a screw connection technology for easy and robust wiring, and it is mounted on a DIN rail (TS 35) for convenient installation.

Advantages

This terminal block offers excellent electrical performance with a rated voltage of 500 V and a pollution degree of 3. The housing is made of Wemid (PA 66) material, providing high mechanical strength and thermal stability. It operates reliably in a wide temperature range from -50 °C to 120 °C and meets UL 94 V-0 flammability rating for enhanced safety.

Suitable for

• Industrial control panels
• Building automation
• Power distribution systems
• Machine manufacturing

Key specifications

• Product Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Rated Cross-Section: 2.5 mm²
• Rated Voltage: 500 V
• Rated Current: 24 A
• Color: Beige
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail (TS 35)
• Conductor Cross-Section (Solid): 0.5 - 4 mm²
• Conductor Cross-Section (Flexible): 0.5 - 2.5 mm²
• Insulation Material: Wemid (PA 66)
• Operating Temperature: -50 °C to 120 °C
• Flammability Rating: UL 94 V-0
• Pollution Degree: 3
• Overvoltage Category: III
• Packaging Quantity: 50 pieces
• Weight per Piece: 6.1 g
• Stripping Length: 10 mm

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper torque settings. Suitable for use with copper conductors only.
