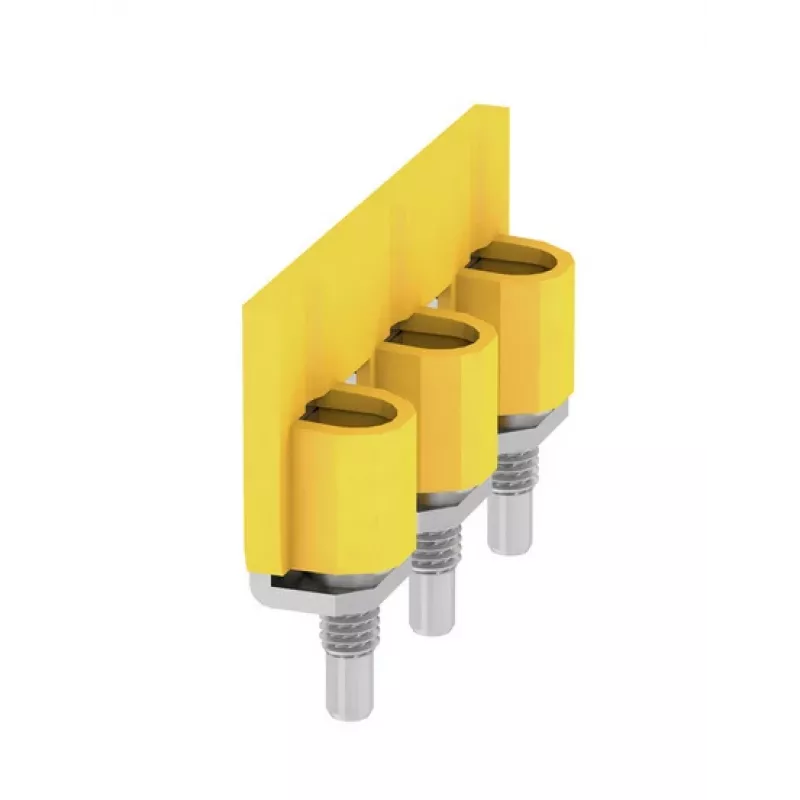

Weidmüller WQV 35N/3 priečny prepojovač, 3-pólový, 10 mm rozteč, žltá, 20 ks

The Weidmüller WQV 35N/3 is a high-quality cross-connector (jumper) designed for bridging adjacent terminal blocks in industrial control and power distribution applications. This 3-pole insulated jumper features a 10 mm pitch and is made from durable polyamide (PA) with a yellow color. It is supplied in a pack of 20 pieces, ensuring cost-effective and efficient wiring solutions.

Advantages

• Reliable electrical connection with rated voltage up to 1000 V and rated current up to 125 A.
• Wide operating temperature range from -60 °C to +130 °C, suitable for harsh environments.
• UL 94 V-0 flammability rating ensures high safety standards.
• Easy plug-in mounting without tools, saving installation time.
• Compatible with Weidmüller WDU 35N, WDU 50N, WDU 70N, WDU 95N, and WDU 120N terminal block series (10 mm pitch).

Suitable for

• Power distribution in control cabinets
• Industrial automation systems
• Electrical panel building
• Bridging terminal blocks in screw connection applications

Key specifications

• Product Type: Cross-connector / Jumper
• Number of Poles: 3
• Pitch: 10 mm
• Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature Range: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Packaging Quantity: 20 pieces
• Rated Voltage: 1000 V
• Rated Current: 125 A
• Mounting Type: Plug-in
• Net Weight per Piece: 2.4 g

Recommendations

For optimal performance, use with compatible Weidmüller WDU series terminal blocks. Ensure proper installation according to manufacturer guidelines. This product is RoHS and REACH compliant.
