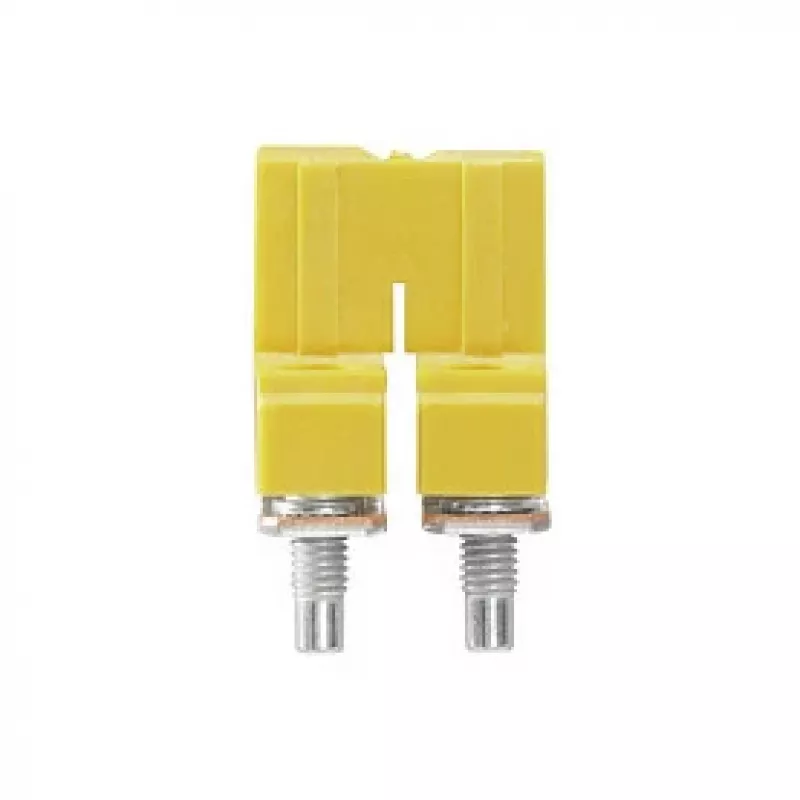

Weidmüller WQV 6/2 priečny prepojovač, 2-pólový, 6 mm², polyamid, žltá, UL 94 V-0, 50 ks

The Weidmüller WQV 6/2 is a high-quality cross-connector designed for potential distribution and bridging adjacent terminal blocks in industrial electrical installations. Manufactured by Weidmüller, a trusted brand in connectivity, this cross-connector ensures reliable and safe connections in control cabinets and junction boxes.

Advantages

This cross-connector offers a simple plug-in installation without the need for tools, saving time and effort during assembly. Its compact design allows for space-saving wiring, while the yellow polyamide housing provides excellent insulation and durability. With a flammability rating of UL 94 V-0, it ensures high fire safety standards. The wide operating temperature range from -60 to 130 °C makes it suitable for extreme environments.

Suitable for

• Potential distribution in control panels
• Bridging adjacent terminal blocks in Weidmüller W-Series
• Industrial automation and electrical distribution systems
• Applications requiring reliable electrical connections under harsh conditions

Key specifications

• Product Type: Cross-connector
• Number of Poles: 2
• Compatible Terminal Block Series: Weidmüller W-Series
• Nominal Conductor Cross-section Compatibility: 6 mm²
• Insulation Material: Polyamide (PA)
• Color: Yellow
• Operating Temperature Range: -60 to 130 °C
• Flammability Rating: UL 94 V-0
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 41 A
• Connection Type: Plug-in
• Packaging Quantity: 50 pieces
• RoHS Status: Compliant
• REACH Status: Compliant

Recommendations

For optimal performance, use this cross-connector with Weidmüller W-Series terminal blocks. Ensure proper installation according to manufacturer guidelines to maintain electrical safety and reliability.
