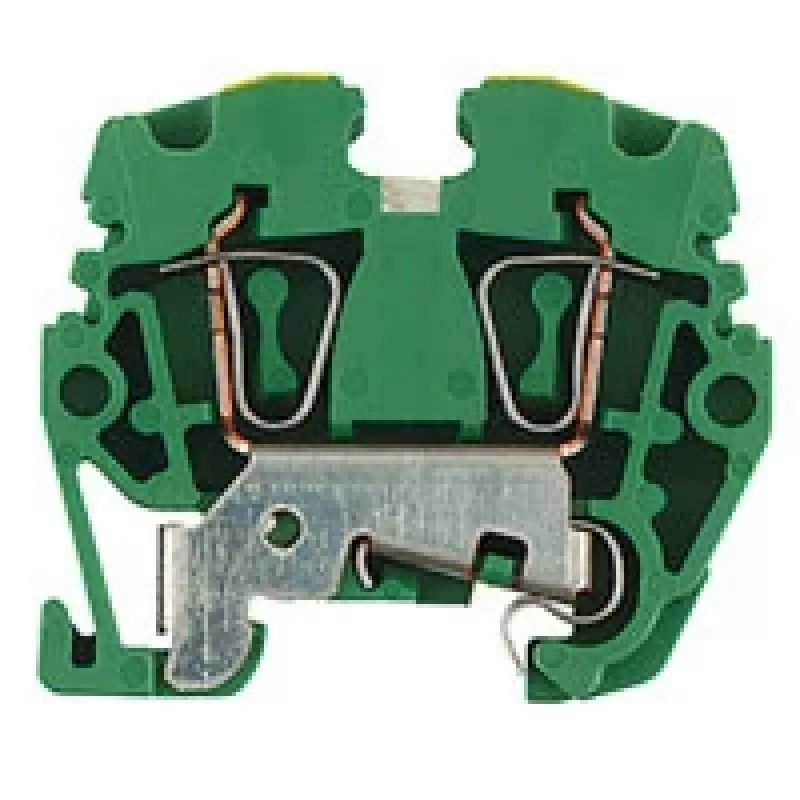

Weidmüller ZPEA 2.5-2 ochranná radová svorka 2,5 mm² zelená/žltá

The Weidmüller ZPEA 2.5-2 is a high-quality protective earth (PE) terminal block designed for reliable grounding and earthing applications. With a nominal cross-section of 2.5 mm² and screw connection technology, it ensures secure and durable wire termination. The green/yellow color coding clearly identifies it as a protective conductor terminal, meeting international safety standards.

Advantages

This terminal block offers robust construction with a Wemid (PA 66) insulation material that provides excellent thermal and mechanical resistance. The V-0 flammability rating ensures high fire safety. Its compact design with two connections and one potential simplifies wiring in control cabinets and distribution boards. The wide operating temperature range from -50 to +120 °C makes it suitable for demanding industrial environments.

Suitable for

• Protective earth connections in electrical installations
• DIN rail mounting in control panels and junction boxes
• Industrial automation and machinery grounding
• Power distribution and switchgear systems

Key specifications

• Connection Type: Screw Connection
• Nominal Cross-section: 2.5 mm²
• Wire Size Range (Solid): 0.5 - 4 mm²
• Wire Size Range (Stranded): 0.5 - 4 mm²
• Rated Impulse Withstand Voltage: 6 kV
• Pollution Degree: 3
• Overvoltage Category: III
• Mounting Type: DIN Rail TS 35
• Color: Green/Yellow
• Number of Potentials: 1 (Protective Earth)
• Number of Connections: 2
• Insulation Material: Wemid (PA 66)
• Flammability Rating (UL 94): V-0
• Operating Temperature: -50 to +120 °C
• Stripping Length: 10 mm
• Tightening Torque: 0.4 - 0.8 Nm
• Approvals: CSA, CUR, DNV GL, EAC, KEMA, cULus, IECEx, ATEX, GL, LR, RINA, ABS, BV, NK, RMRS, UL

Recommendations

For optimal performance, use with copper conductors and ensure proper tightening torque. Suitable for use in hazardous locations when installed per manufacturer guidelines. Always follow local electrical codes and standards.
