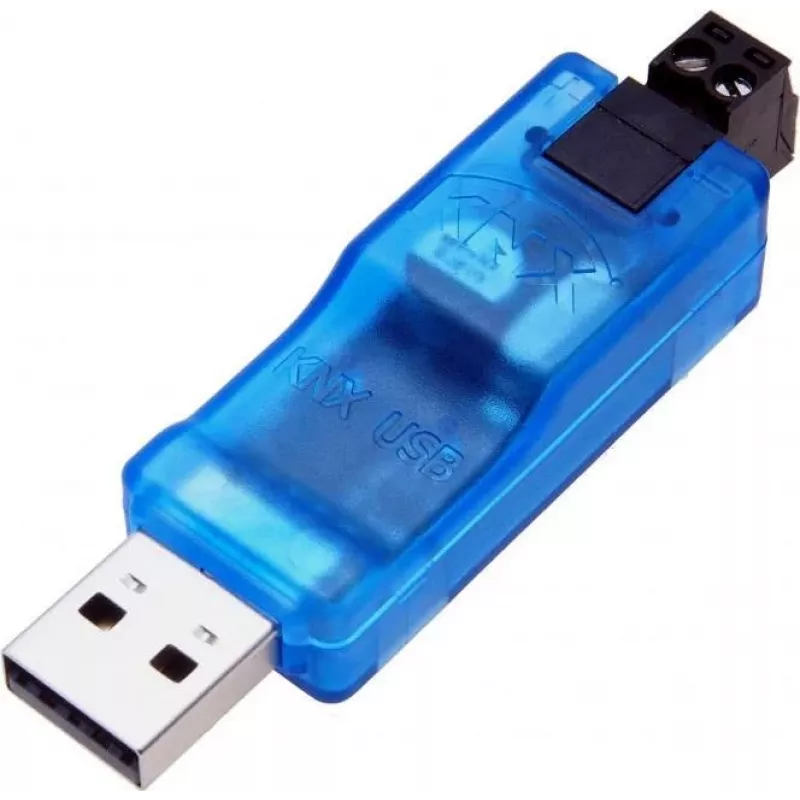

Weinzierl 5254 KNX USB Interface Stick 332 s podporou Long-Frame a BAOS 1000 dátových bodov

The Weinzierl 5254 KNX USB Interface Stick stands out by integrating the BAOS 832 module, offering direct access to 1000 data points without additional software. Unlike basic interfaces, it supports long frames, making it suitable for complex KNX installations and diagnostics.

Highlights

• KNX TP connection via USB 2.0
• Supports long frames for advanced communication
• Integrated BAOS 832 module with 1000 data points
• Bus-powered, no external supply needed
• Electrical isolation between USB and KNX

In daily use

Plug the stick into any USB Type-A port and connect to the KNX bus. It works with ETS3 through ETS6 on Windows XP to 11, enabling commissioning, diagnostics, and programming. LED indicators show KNX activity and USB status.

Full specifications

• Product Type: KNX USB Interface Stick
• KNX Standard: KNX TP (Twisted Pair)
• USB Standard: USB 2.0
• Supported KNX Features: Long Frames
• Integrated Module: KNX BAOS Module 832
• BAOS Data Points: 1000
• Power Supply: USB Bus Powered
• ETS Compatibility: ETS3, ETS4, ETS5, ETS6
• Operating System Compatibility: Windows (XP, 7, 8, 10, 11)
• Electrical Isolation: Yes (between USB and KNX)
• Connection Type: USB Type-A (Male)
• Functionality: Commissioning, Diagnostics, Programming
• LED Indicators: Yes (KNX activity, USB status)
• Housing Material: Plastic

Final note

The Weinzierl 5254 is a reliable tool for KNX professionals needing long frame support and high data point capacity in a compact form factor.
