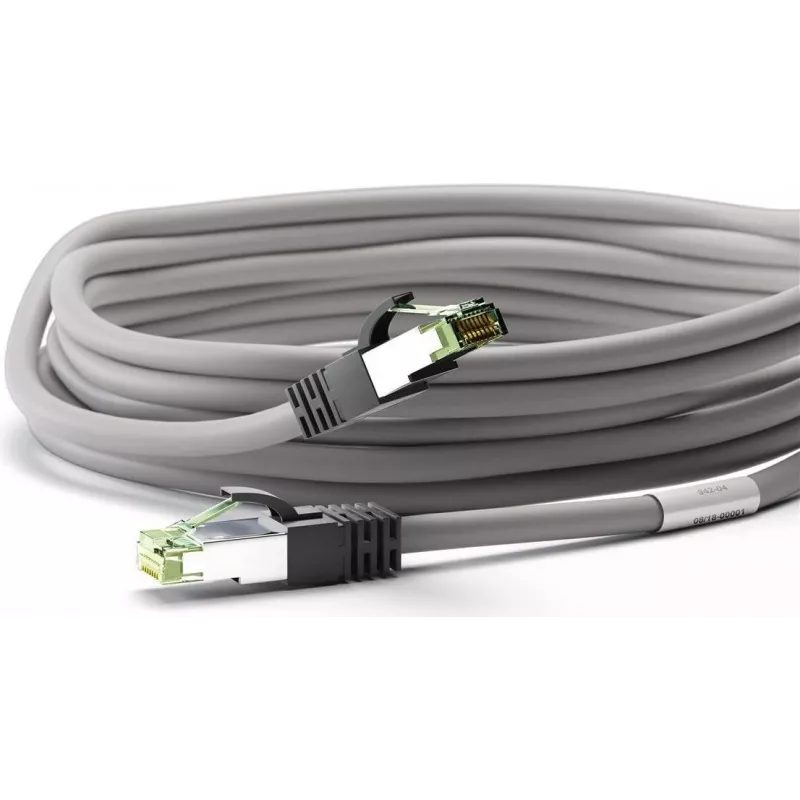

Wentronic Goobay CAT 8.1 patch kábel, S/FTP (PiMF), sivý, 25 m - LSZH bez halogénov, meď AWG 24 (55144)

With a bandwidth of 2000 MHz and support for 40 Gigabit Ethernet, this CAT 8.1 patch cable delivers high-speed data transfer over distances up to 25 metres. The S/FTP (PiMF) shielding with individually foiled pairs and an overall braid ensures minimal crosstalk and interference, making it suitable for high-density network environments.

Overview

The Wentronic Goobay CAT 8.1 patch cable is built for demanding network applications. It features stranded copper conductors (AWG 24) for flexibility and durability, and a grey LSZH (Low Smoke Zero Halogen) jacket that emits low smoke and no halogen gases in case of fire, enhancing safety in enclosed spaces. The cable is terminated with RJ45 male connectors on both ends and follows a 1:1 pin assignment according to TIA/EIA-568B.

What stands out

• CAT 8.1 performance: up to 40 Gbit/s and 2000 MHz bandwidth
• S/FTP (PiMF) shielding: individual foil per pair plus overall braid
• LSZH jacket: low smoke, halogen-free for improved fire safety
• Backward compatible with CAT 6a, CAT 6, CAT 5e, and CAT 5
• Stranded copper conductors for easy installation and flexibility

Technical details

• Cable type: Patch cable
• Category: CAT 8.1
• Shielding: S/FTP (PiMF)
• Conductor material: Copper
• Conductor gauge: AWG 24
• Length: 25 m
• Jacket material: LSZH (halogen-free)
• Colour: Grey
• Connectors: RJ45 male to RJ45 male
• Maximum bandwidth: 2000 MHz
• Maximum data rate: 40 Gbit/s
• Pin assignment: 1:1
• Standard compliance: TIA/EIA-568B

Our verdict

A high-performance CAT 8.1 patch cable with excellent shielding and a safety-focused LSZH jacket, ideal for professional network installations where speed and fire safety are priorities.
