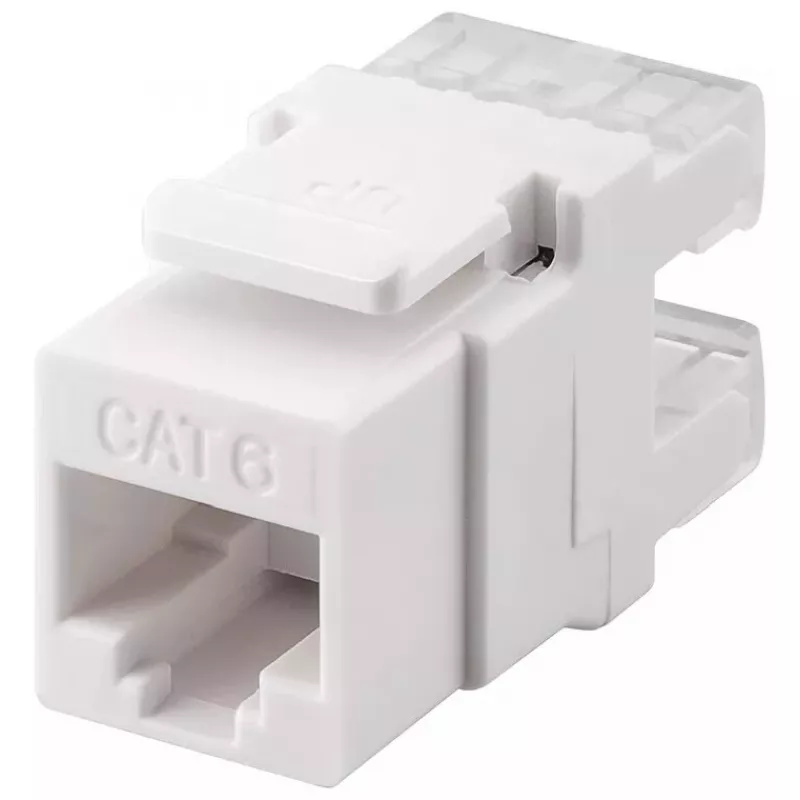

Keystone modul RJ45 CAT 6 UTP 250 MHz Goobay 95740

The Goobay Keystone Module RJ45 CAT 6 UTP 250 MHz (WENTRONIC, MPN 95740) is a single-port, flat-format RJ45 keystone insert designed for structured network installations. Rated for 250 MHz, this CAT6 UTP module supports high-speed Ethernet connections and fits standardized rectangular keystone ports (14.9 × 17.0 mm pitch). The white housing provides a low-profile appearance and allows straightforward replacement or upgrading of individual connection points.

Advantages

The module conforms to the keystone snap-in system for easy mounting and interchangeability with other keystone modules. Its CAT6 UTP design supports frequencies up to 250 MHz for reliable data transmission and is compatible with standard RJ45 patch cables and jacks. The flat construction reduces protrusion from faceplates and modules are supplied individually, which is convenient for single-point installations or repairs.

Suitable for

• Home and small office Ethernet networks (up to CAT6 performance)
• Wall plates, patch panels and modular faceplates using keystone ports
• Upgrading or replacing individual RJ45 connection points

Key specifications

• Product: Keystone Module RJ45 CAT 6 UTP 250 MHz
• Brand: WENTRONIC (Goobay)
• MPN: 95740, EAN: 4040849957406
• Category: CAT6 UTP, 250 MHz
• Format: Keystone snap-in module, rectangular 14.9 × 17.0 mm pitch
• Color: White
• Quantity: 1 module per pack

How to use

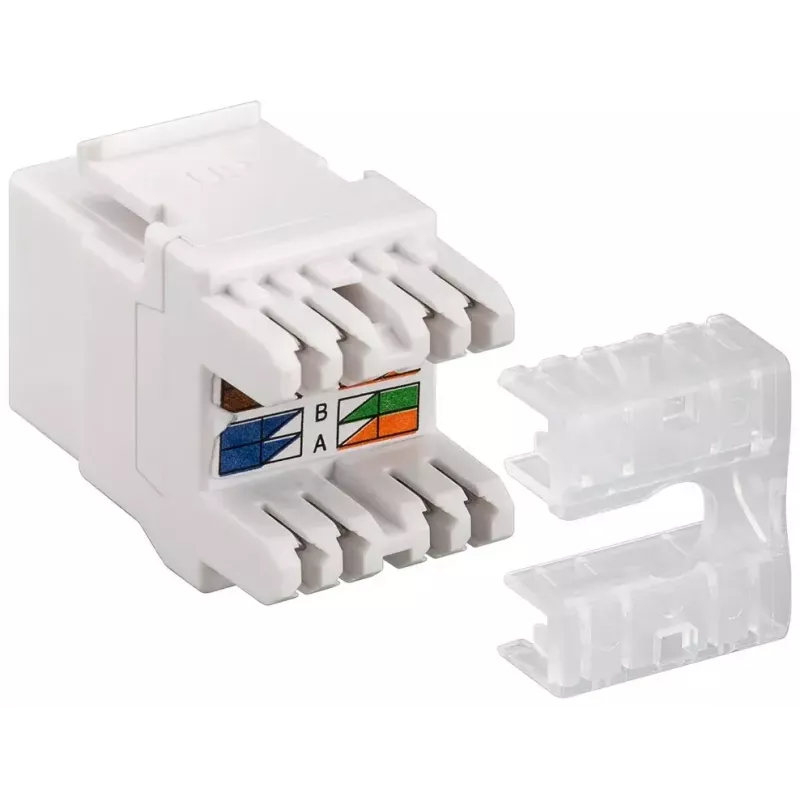

Terminate a CAT6 UTP cable onto the RJ45 contacts following the T568A or T568B wiring standard and test the link for continuity and performance. Insert the module into a compatible keystone aperture until the snap-in latch engages. Connect standard RJ45 patch cables to the module for network use. When replacing modules, gently depress the keystone latch and remove the module before inserting the new one.

Recommendations

Use this module in conjunction with appropriate keystone-compatible faceplates or patch panels. Verify wiring standard and cable quality to achieve CAT6 performance up to 250 MHz, and perform post-installation testing with a network cable tester to ensure correct termination and signal integrity.
