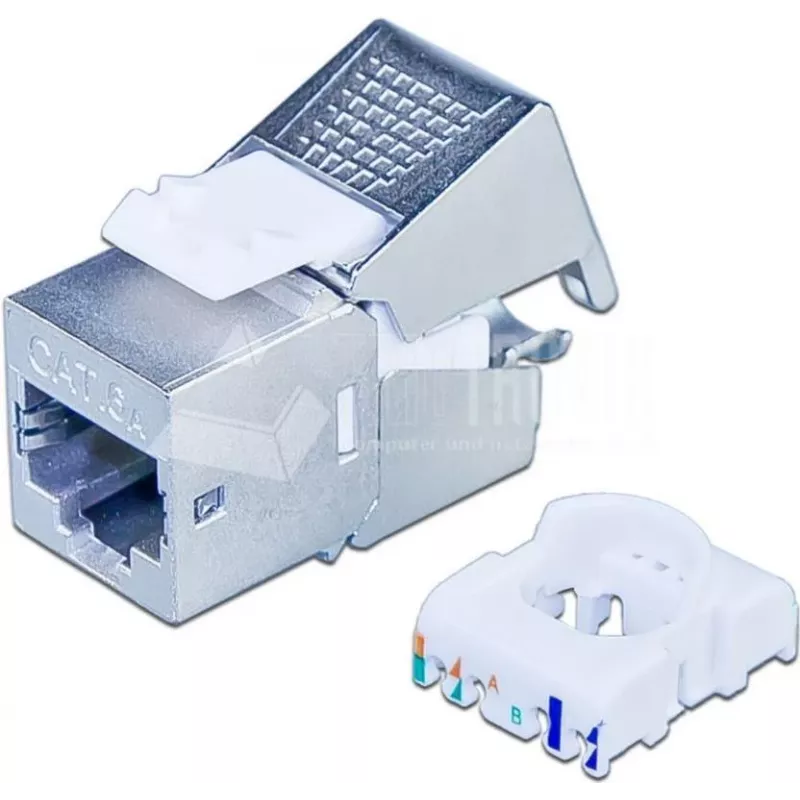

Wirewin Cat6A 10 Gigabit Ethernet keystone modul, tienený, bez nástroja, keystone systém (WKS JACK STP KAT6A)

This Cat6A keystone module from Wirewin delivers 10 Gigabit Ethernet performance in a compact, shielded design. Unlike standard keystone jacks, it features a die-cast zinc housing for durability and a tool-less IDC termination, making installation faster and more reliable. The module fits standard keystone wall plates and patch panels, ideal for high-speed data networks and PoE+ applications.

Highlights

• Cat6A performance up to 500 MHz, supporting 10GBASE-T
• Shielded (STP/FTP) construction with die-cast zinc housing
• Tool-less IDC termination for AWG 22-24 solid or stranded conductors
• Gold-plated contacts (50µm) ensure reliable connections
• Compatible with standard keystone wall plates and patch panels

In daily use

Installation is straightforward: strip the cable, insert the conductors into the color-coded IDC slots, and close the cap. The tool-less design eliminates the need for a punch-down tool, saving time on every termination. The shielded housing protects against EMI, making it suitable for noisy environments. With over 750 insertion cycles, this module withstands frequent reconnections.

Full specifications

• Product type: Keystone jack module
• Ethernet category: Cat6A
• Data transfer rate: 10 Gigabit Ethernet
• Shielding: Shielded (STP/FTP)
• Connector type (front): RJ45 female
• Connector type (rear): IDC
• Wiring standard: T568A/B
• Frequency bandwidth: Up to 500 MHz
• Mounting: Keystone format (19.2 x 14.9 mm)
• Termination method: Tool-less IDC
• Housing material: Die-cast zinc
• Contact plating: Gold-plated (50µm)
• Conductor compatibility: AWG 22-24 solid/stranded
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Flammability rating: UL 94V-0
• Operating temperature: -10°C to +60°C
• Insertion cycles: >750
• Colour: Metallic silver / grey
• Application: High-speed data networks, PoE+ applications

Final note

A robust and efficient solution for professional network installations, combining high performance with ease of use.
