Wirewin MOD SL KAT6A STP 10 SW RJ45 konektor samec na montáž v teréne, Cat6A, tienený, balenie 10 ks

Supports 10 Gigabit Ethernet with Cat6A shielded twisted pair, field-terminable without tools, in a 10-piece pack.

Overview

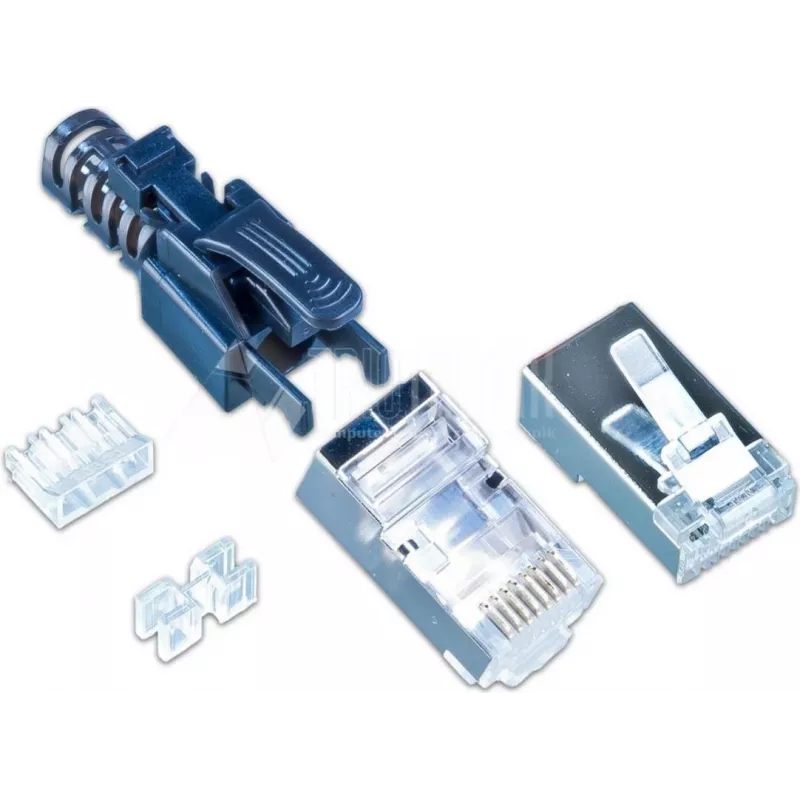

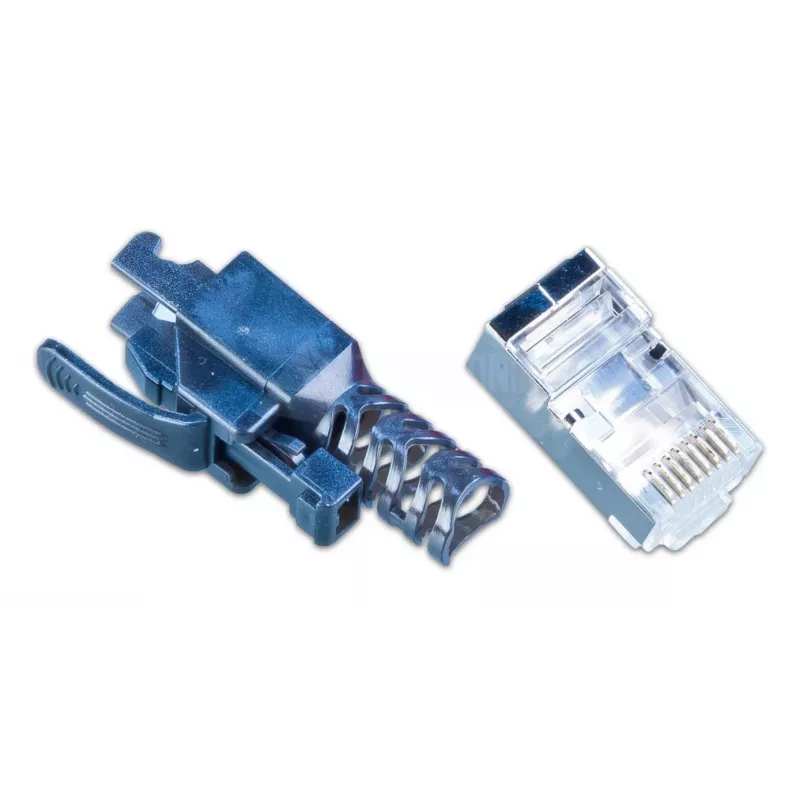

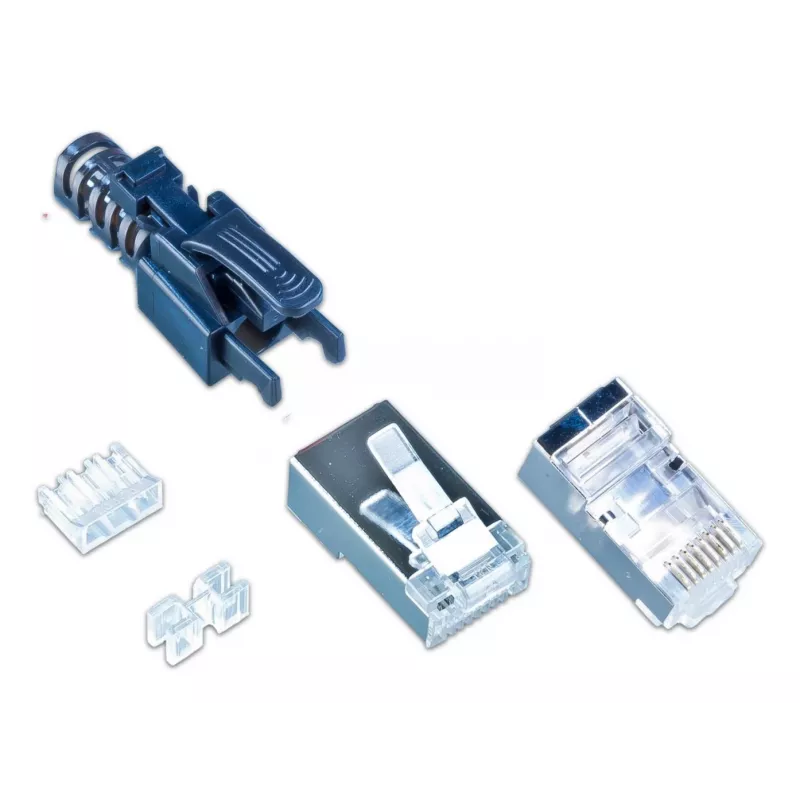

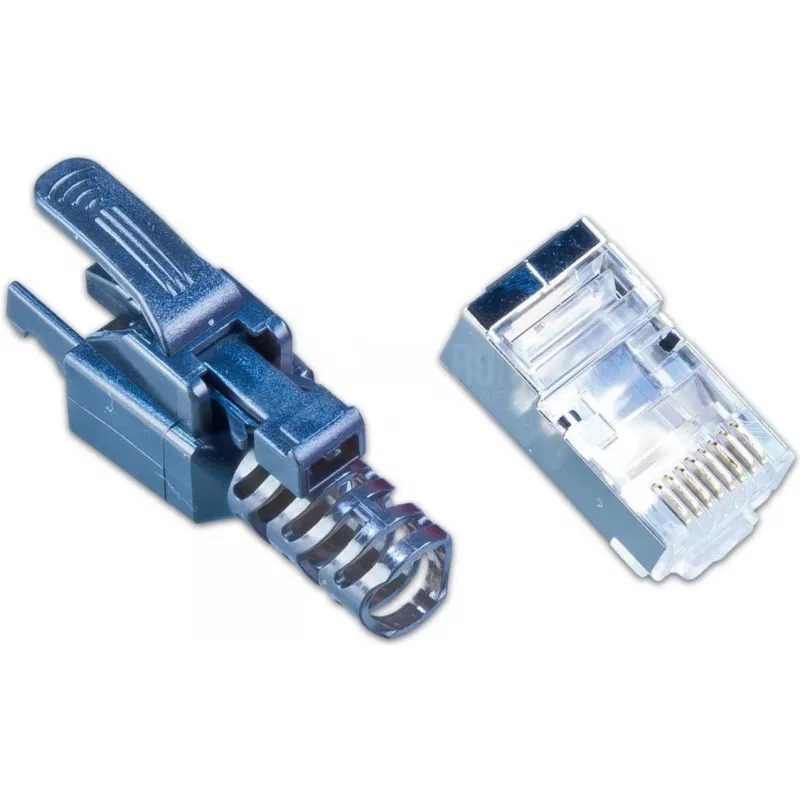

The Wirewin MOD SL KAT6A STP 10 SW is a field-terminable RJ45 plug for Cat6A shielded twisted pair cabling. It enables 10GBASE-T connections with a bandwidth up to 500 MHz. The plug features a tool-less IDC termination, accepts solid or stranded conductors from 22 to 26 AWG, and fits cable outer diameters from 6.0 to 9.0 mm. Contacts are 50µm gold plated for reliable signal integrity. The housing combines a zinc die-cast shield with a polycarbonate body in black and transparent. This pack contains 10 plugs.

What stands out

• Tool-less IDC termination for fast field assembly
• Supports 10 Gigabit Ethernet and PoE++ (IEEE 802.3bt)
• Reusable up to 5 cycles
• Gold-plated contacts for corrosion resistance

Technical details

• Connector type: RJ45 plug, 8P8C
• Shielding: STP (shielded twisted pair)
• Data rate: 10 Gbps
• Bandwidth: 500 MHz
• Wire gauge: 22-26 AWG, solid or stranded
• Cable outer diameter: 6.0-9.0 mm
• Contact plating: 50µm gold
• Housing: zinc die-cast shield, polycarbonate body
• Operating temperature: -10°C to 60°C
• Insertion cycles: >750
• Pack quantity: 10 pieces

Our verdict

A robust field-terminable Cat6A plug that delivers 10G performance with tool-less convenience, ideal for professional network installations.
