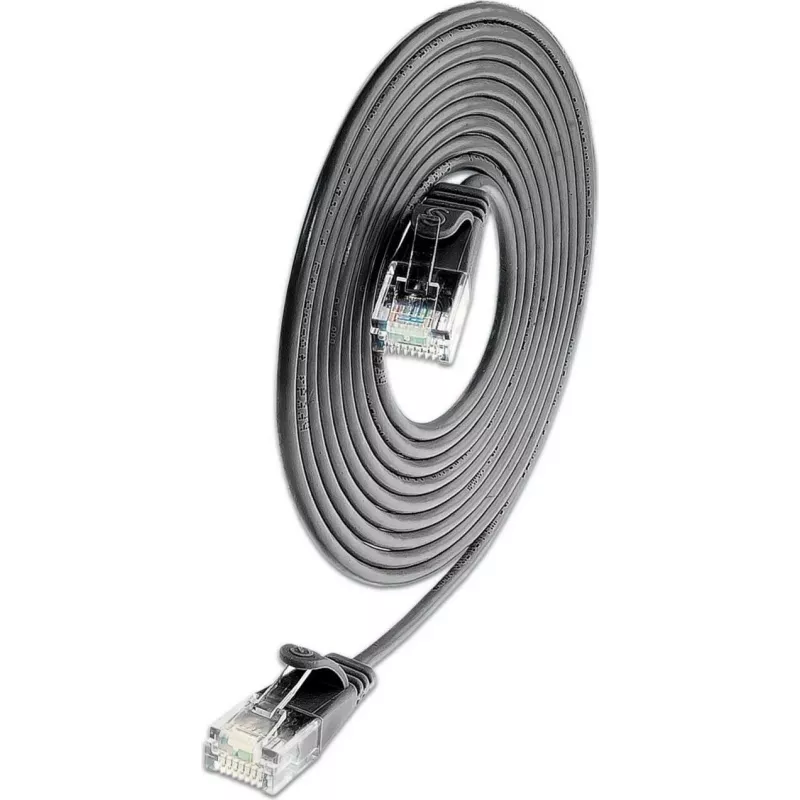

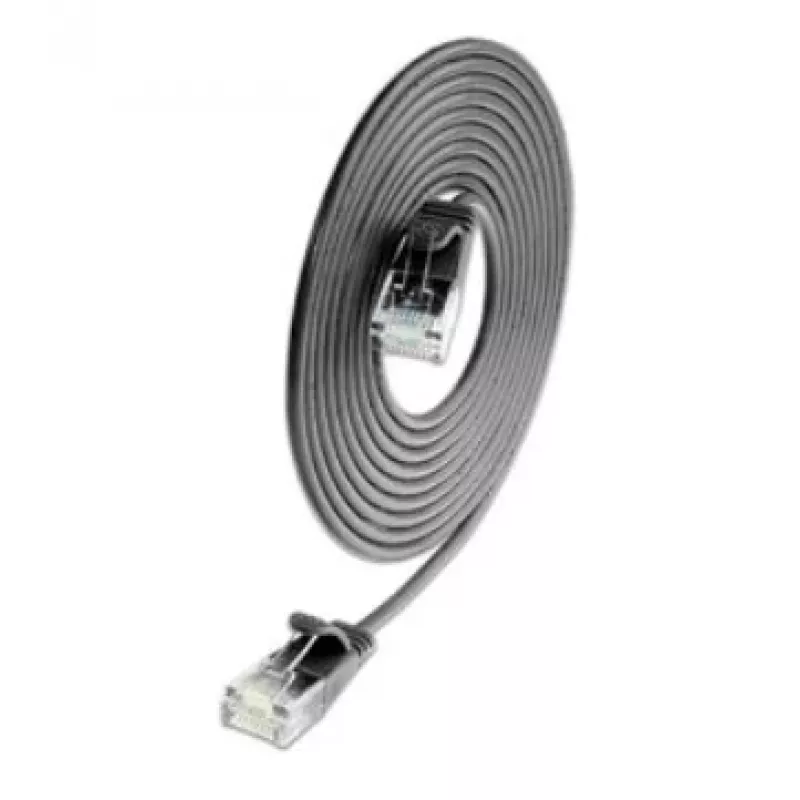

Wirewin SLIM CAT6A 10 Gigabit Slim patch kábel, U/UTP, 3,6mm priemer, čierna, 1,5m SLIM-L-UU-K6A 1.5 BK

High-density network installations often suffer from bulky cables that block airflow and make cable management difficult. This SLIM WIREWINE CAT6A patch cable solves that problem with a slim 3.6 mm round profile, allowing more cables to fit in tight spaces while maintaining full 10 Gigabit performance.

Who is it for

Network administrators and IT professionals who need reliable, high-speed connections in data centers, server rooms, or office environments where space is limited and cable organization is critical.

Main features

• Supports 10 Gigabit Ethernet (10GBASE-T) with 500 MHz bandwidth, ideal for demanding applications.
• Unshielded twisted pair (U/UTP) construction with 28 AWG stranded copper conductors for flexibility and easy routing.
• LSZH (Low Smoke Zero Halogen) jacket for safety in case of fire, emitting low smoke and no toxic halogens.
• Gold-plated RJ45 connectors (50µ) ensure reliable, corrosion-resistant connections.
• Supports Power over Ethernet (PoE, PoE+, 4PPoE) up to IEEE 802.3bt, allowing data and power over one cable.
• Complies with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2 standards for performance and interoperability.

Specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: U/UTP (Unshielded)
• Data Transfer Rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 1.5 m
• Colour: Black
• Cable Shape: Round
• Outer Diameter: 3.6 mm
• Conductor Material: Copper (Cu)
• Conductor Gauge: AWG 28/7 (Stranded)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type: RJ45 (8P8C) Male
• Contact Plating: Gold-plated (50µ)
• Wiring Standard: TIA/EIA 568B
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Operating Temperature: -20°C to 60°C
• Halogen Free: Yes

Tips

For best performance, avoid sharp bends and keep the cable away from sources of electromagnetic interference. Use cable management accessories to maintain the slim profile and ensure proper airflow in high-density racks.
