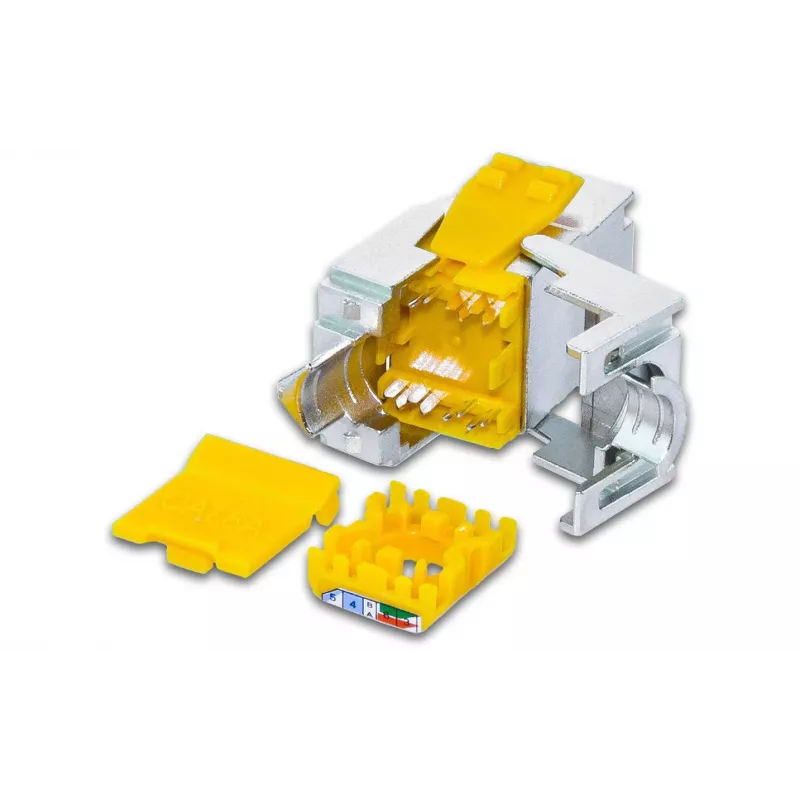

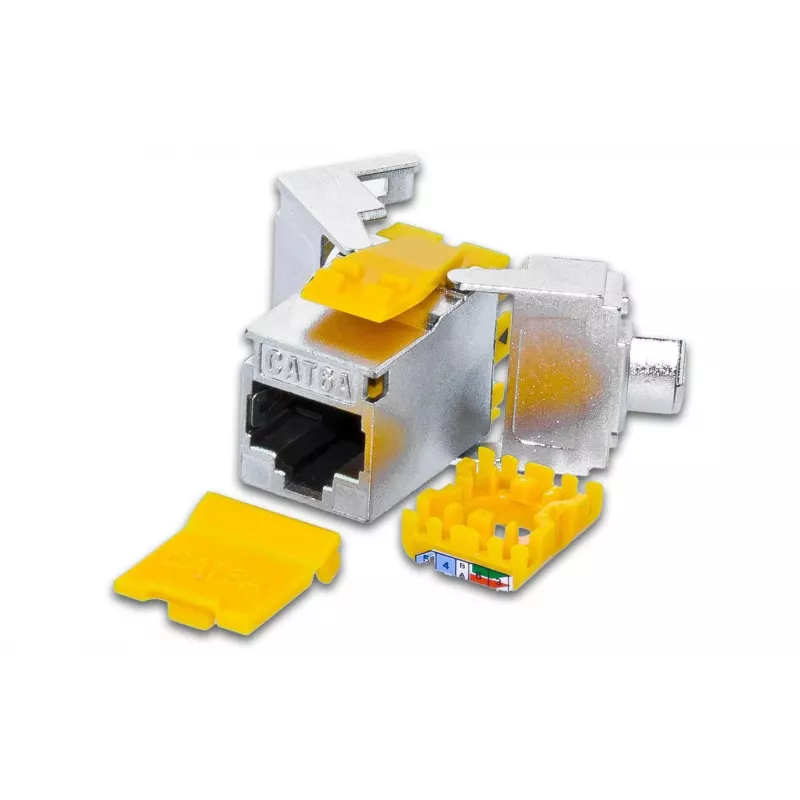

Wirewin WKS JACK KAT6A SLIM 12 CAT6A 10 Gigabit Ethernet tienený keystone modul, balenie 12 ks

High-density network installations often struggle with bulky connectors that block adjacent ports. The WKS JACK KAT6A SLIM 12 solves this by providing a slim-profile CAT6A keystone module that supports 10 Gigabit Ethernet while fitting into standard keystone ports with minimal space.

Who is it for

Network installers and data center technicians who need reliable, high-speed connectivity in tight spaces. Ideal for patch panels, wall plates, and surface-mount boxes where port density is critical.

Main features

• CAT6A performance with up to 500 MHz bandwidth for 10GbE networks
• Shielded die-cast zinc housing for superior EMI protection
• Tool-free installation with LSA+ insulation-displacement connectors
• Gold-plated contacts for corrosion resistance and reliable signal integrity
• Slim design saves space in high-density patch panels
• Supports PoE, PoE+, and 4PPoE for powered devices

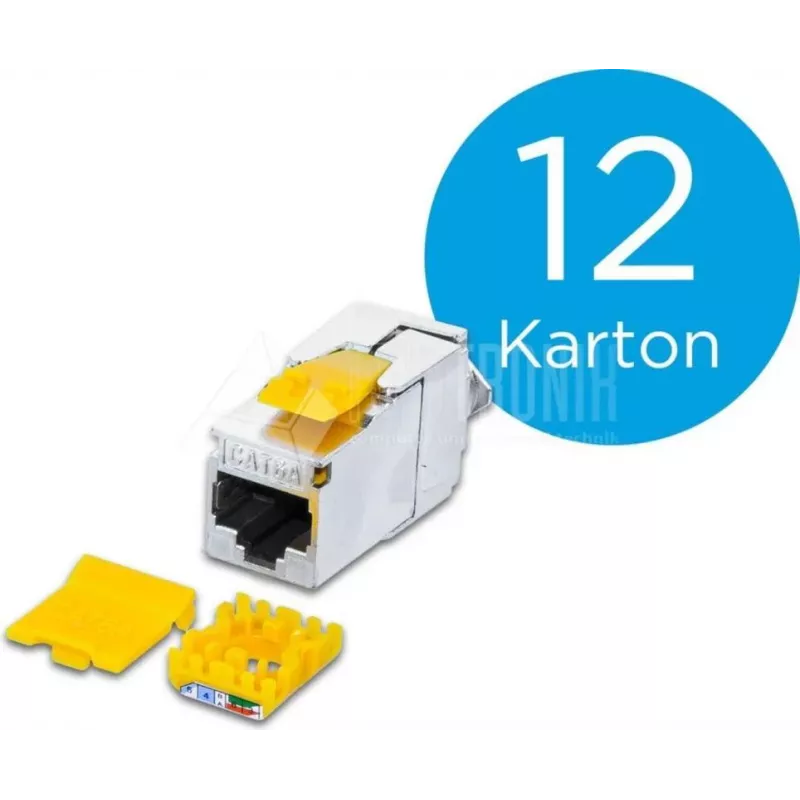

• Pack of 12 modules for cost-effective deployment

Specifications

• Product type: Keystone module
• Ethernet category: CAT6A
• Data transfer rate: 10 Gigabit Ethernet
• Shielding: Shielded (STP/FTP)
• Connector type front: RJ45 female
• Connector type rear: LSA+ (IDC)
• Wiring standard: T568A/B
• Housing material: Die-cast zinc
• Contact plating: Gold-plated (50µ")
• Frequency bandwidth: Up to 500 MHz
• Installation method: Tool-free
• Quantity per pack: 12
• Compatibility: Standard keystone ports (19.2 x 14.9 mm)
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)

Tips

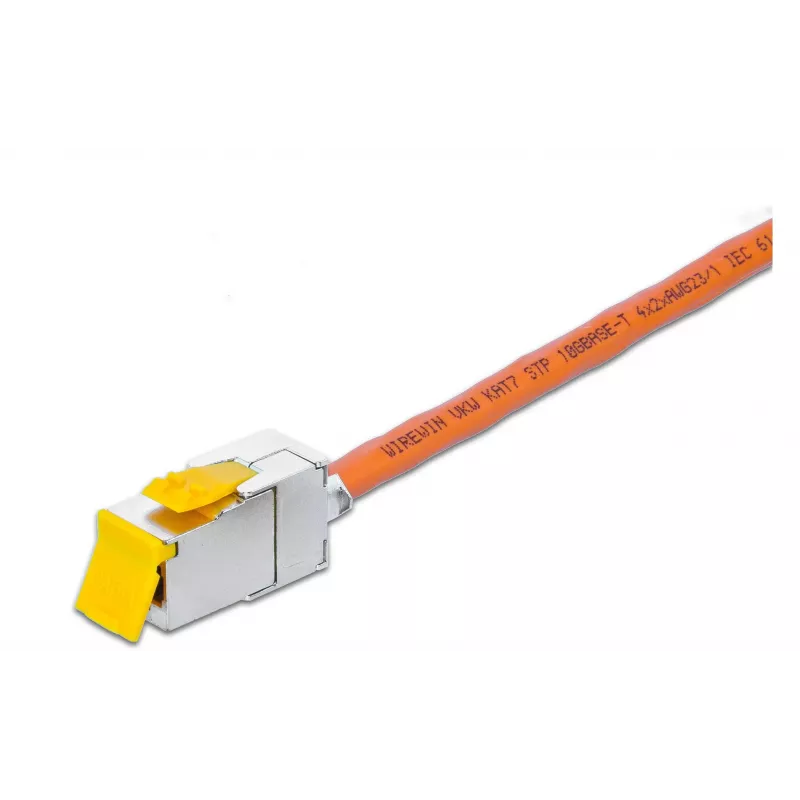

For best performance, use with CAT6A shielded cables and grounded patch panels. The slim profile allows for side-by-side installation without sacrificing port density.
