Wittenberg Antennen 1 m anténny kábel SMB konektor samica FME konektor samec RG174 50 Ohm čierny 103517

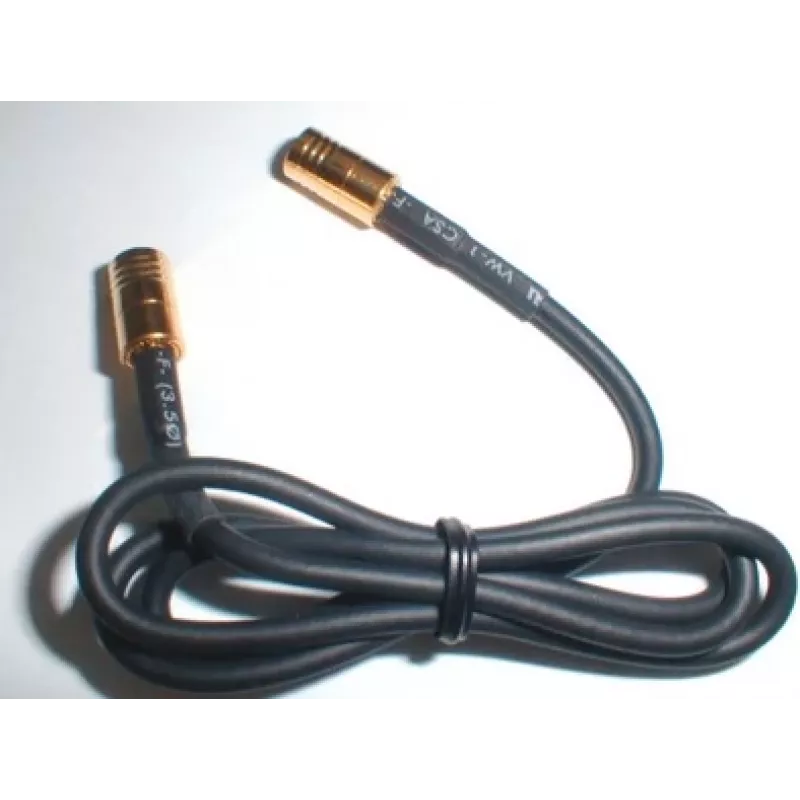

This Wittenberg Antennen cable stands out with its FME male to SMB female configuration, a pairing often needed for mobile communication setups where space is tight but a secure RF link is essential. At 1 meter, it bridges short distances without excess slack, and the RG174 coax keeps the assembly thin and flexible for routing behind panels or inside enclosures.

Highlights

• FME male (plug) to SMB female (jack) connectors
• RG174 coaxial cable, 50 Ohm impedance
• 1 meter length, black PVC jacket
• Braided copper shielding for signal integrity
• Suited for GSM/UMTS/LTE antenna connections

In daily use

The 2.8 mm outer diameter makes this cable easy to manage in cramped installations, while the braided shield helps reject interference. The SMB side snaps on and off quickly, which is handy for test setups or equipment that gets reconfigured often. The FME end threads onto many mobile antennas and adapters, giving a firm connection that won't loosen from vibration.

Full specifications

• Cable length: 1 m
• Connector 1: FME male
• Connector 2: SMB female
• Cable type: RG174
• Impedance: 50 Ω
• Jacket material: PVC
• Conductor material: Copper
• Shielding: Braided
• Outer diameter: 2.8 mm
• Frequency range: DC to 3 GHz
• Attenuation at 1 GHz: 1.5 dB/m

Final note

A purpose-built short RF jumper for FME-to-SMB connections, with the flexibility of RG174 and solid 50-ohm performance.
