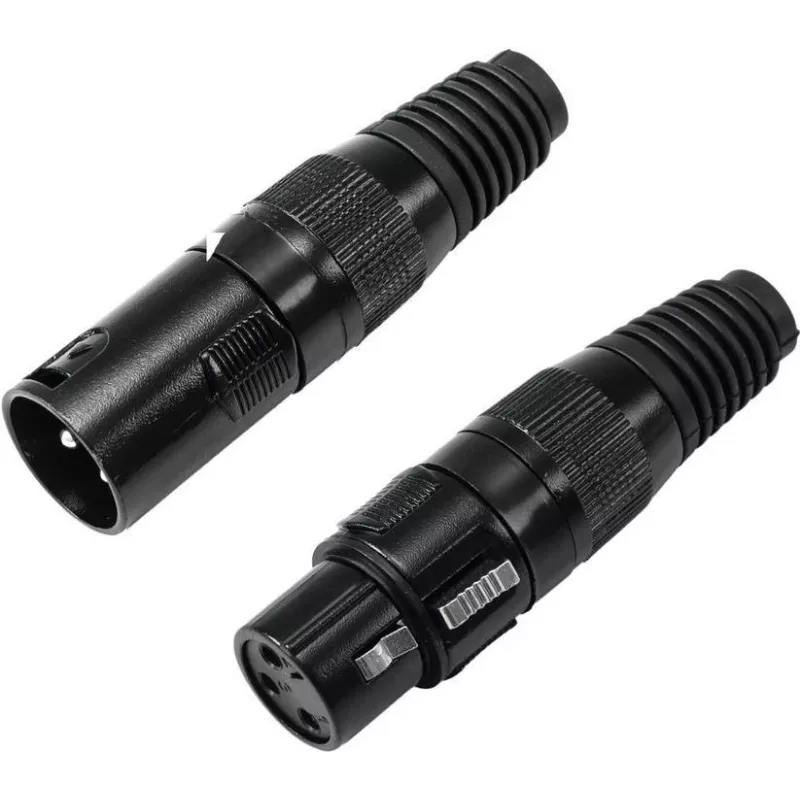

XLR 3-pinový konektor Omnitronic 30200097 — audio signálny konektor samec/samica

Omnitronic 30200097 is a 3-pin XLR connector designed for professional balanced audio signal connections. Available in male and female variants, this connector is intended for assembling or replacing XLR cable ends used with microphones, mixers, stage and studio equipment to ensure reliable signal continuity and low-noise transmission.

Advantages

The Omnitronic 30200097 offers standard 3-pin wiring compatible with common professional audio equipment, secure locking to prevent accidental disconnection, and straightforward solder or crimp assembly depending on the variant. Its compact design allows use in confined cable runs and rack setups while maintaining the balanced audio path required for interference rejection.

Suitable for

Key specifications

How to use

Select the appropriate male or female 30200097 connector for your cable. Open the connector housing, prepare the cable conductors according to the connector instructions, and solder or crimp the conductors to pins 1 (ground), 2 (hot/+) and 3 (cold/-). Reassemble the housing and verify mechanical locking. Test the assembled cable with audio equipment to confirm correct polarity and secure connection.

Recommendations

For consistent performance, use shielded microphone or audio cable and follow standard wiring convention (pin 1 = shield/ground, pin 2 = positive, pin 3 = negative). Inspect connections periodically and avoid strain on the cable near the connector to prolong service life.
